Prod Model: |
sp-2005 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item Name: |

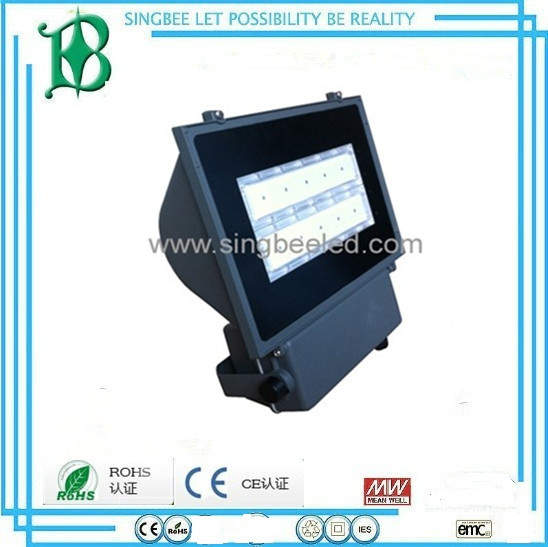

LED Flood Light |
Wattage.: |
50W |
Power Factor: |
More Than 0.90 |
Total Harmonic Distortion: |
Less Than 5% |
Working Environment Temperature: |
-35~+40celsius Degree |
Frequency Range: |
50/60Hz |
Lamp Size: |
L500*W375*H140 (Mm) |
Junction Temperature: |
Below 75 Celsius Degree |
Chip: |
Bridgelux |
Driver: |
Meanwell |
Body Material: |
Aluminum Alloy |
IP Rating: |
IP65 |
Application: |
Square, Outside Building, Billboard |
Projection Distance: |
18-25m |
Certification: |
RoHS |
Operating Voltage: |
90-260VAC |
Lighting Bulbs & Tube: |
LED PC Board |
Product Description
1. Material:
Aluminum Alloy Housing
Strengthen glass
Processed Surfece and Spray Painted
2. Standard Specifications:
Beam Angle: 170° Cool-White: 5000~6000K 90~260V/AC
3. Optional Parts:
Beam Angle: 130° : 80° ; 40° ; Warm White 3000~4000K 12/24V/DC
Above may be changed with standard part to fit the specification required for your unique project.
4. Application: Street, Stadiums, Bridges, Outside Buildings, Car Parks
, Billboards
Warranty: 2 Years
Outside building project, California
RoHS
|
CE
|
Safty Class11
|
IP 65 |
50Hz~60Hz
|
Protection Class 2
|
Recyclable
|
Item
NO. |
Input(V/AC) |
Power(w) |
Luminous flux(lm) |
Color temperature(K) |
Color rendering index(Ra) |
Size (mm) |
SP2005 |
90~260 |
50 |
4500 |
5000~6000 |
80 |
¢ 375*500*140 |
80 |
7200 |
