| Prod Model: |
BL-MR11-1SEMI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Number: |
Bl-MR11-1semi |
| Dimension: |
35(Dia. )X 45mm |
| Voltage: |
12V AC/DC |
| Power Consumption: |
2.1W |
| LED Type: |
Semi/CREE |
| LED Quantity: |
1PC LED |
| Weight: |
25g |
| Life Span: |
50, 000 Hours |
| Certifications: |
CE/RoHS/PSE/FCC |
| Warranty: |
3 Years |
| Power Source: |
DC |
| Life: |
50000h |
| Input Voltage: |
12V |
| Diffuser: |
Polycarbonate |
| Base Material: |
Aluminum |
| Electric Current Type: |
DC |
| Usage: |
Show Case |
| Emitting Color: |
Ww/Nw/Cw |
| Certification: |
CE/RoHS/FCC/PSE |
Product Description
Application:
Desktop, Aisle, showcase, residential lighting for bedroom, studyroom, living room etc. Commercial lighting for office, hotel lobby, shop, exhibition room etc.
* Transformer Application
Magenatic transformer with 12~24 V AC/DC output or Electronic transformer with 12~24V DC output voltage.
* Outstanding Performance
Effiecent > 80%, PF > 0.9, life span > 50, 000 hours.
Features:

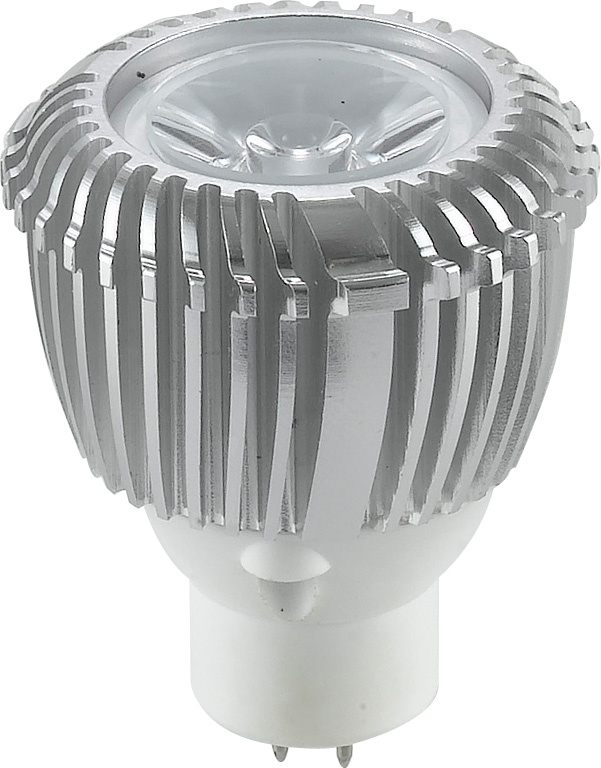

ITEM NUMBER: BL-MR11-1SEMI
* BULB TYPE: High Power LED MR11 Bulb
* LED CHIP Q'TY: 1PC LED
* BASE TYPE: MR11
* LED TYPE: SemiLED
* AVAILABLE INPUT VOLTAGE: 12V DC
* APPLICABLE DIMMERS: TRIAC DIMMER FOR LUTRON, TEVITON, LEGRAND, CE, ORSAM etc.
* TOTAL LENGTH: 35(dia. )x 45mm
* OUTPUT CURRENT: 340mA
* LUMEN OUTPUT: WW: 85lm, CW: 110lm
* COLOR RANGE: 2, 700~6, 500K
* BEAM ANGLE: 15, 30, 45, 60, 90, 120 degrees
* REFLECTOR EFFICIENCY: 90%
* LIFE SPAN: >50, 000 HOURS
* BODY TEMPERATURE: <65degrees
* LED WORKING TEMPERATURE: <72degrees.
* CRI: Ra> 80
* NET WEIGHT: 25g
* HOUSING MATERIAL: ALUMINIUM EXTRUSTION
* NO UV OR IR RADIATION
* CERTIFICATION: CE, RoHS, C-Tick, FCC, PSE.
|
Item Number |
BL-MR11-1SEMI |
|
Voltage |
12V AC/DC |
|
Lumens |
WW: 85lm
CW: 110lm |
|
Dimmable |
NO |
|
Dimension |
¢ 35 x 45mm |
|
Available Base |
MR11 |
|
Weight |
25g |
|
LED Type/ Qty |
SEMI/ 1pc |
|
Power Consumption |
2.1W |
