Digit Height:
6 ~ 24 Inch
Colors Options:
Red, Yellow, Blue, Green, White
Display Format:
0000-9999 or Custom Made
Work Voltage:
DC12V 320W
IP Protection:
IP67
Usage Location:
Gas Station, Petrol Station, Fuel Station,
Certifiacte:
CE/RoHS Approved
Display Type:
Segment LED Display
Tube Chip Color:
Single Color
IP Rating:
IP67
Scanning Mode:
Static Scan
Certification:
UL
Application:

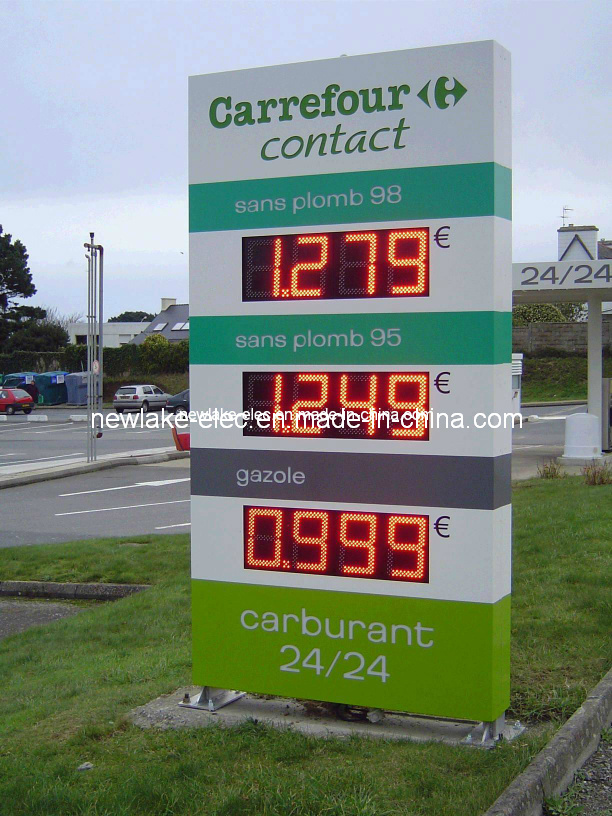

Gas Price Display
Display Function:
Numeric Display
Product Description
Fivelake Electronics is versed in outdoor gas price digital LED display since 2006. We offer good products and customized solution for customers.

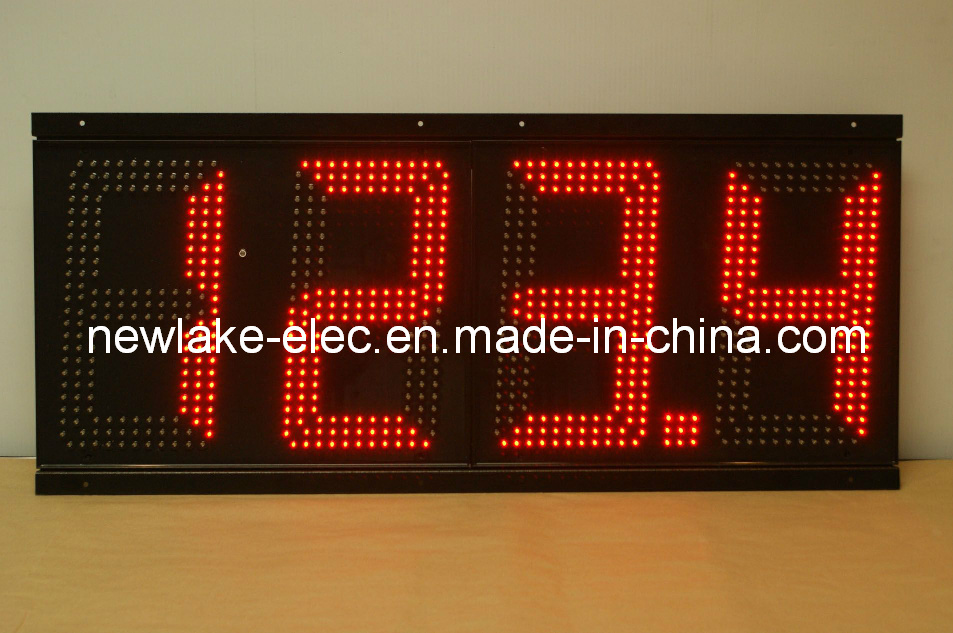

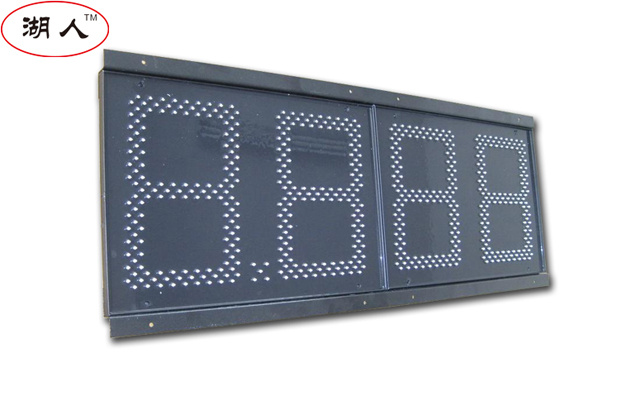

Product Feature: > Outstanding visible & reliable LEDs for attractive displays > Able to display dual sided 8.888 > Able to adjust brightness respectively for each side > 16 levels brightness adjustable by manual or automatically > Easily control of LED digits display with wireless remote control > Able to connect with PC by wired or wireless communication > Easily mounting and connect among several groups of LED displays > Max 10 groups LED displays driven available (4 digits display as a group) Digit dimension: 6 inch, 8 inch, 10 inch, 12 inch, 15 inch, 22 inch, 24 inch Display Format: 0-9999 Communication: Remote control or wireless Installed: Easy to be installed for single side and double sided. Operation voltage: DC12V
Model Name
TT15
TT20
TT25
TT30
LEDs
5mm Oval-shaped / Red
Digit High
150mm
200mm
250mm
300mm
LEDs Qty of Model
396 pcs
396 pcs
605 pcs
769 pcs
Display Panel Qty of Model
2 pcs
2 pcs
2 pcs
2 pcs
Cable Length of Display Panel
650mm
650mm
650mm
650nm
Color of Waterproof Adhesive
Black
Black
Black
Black
Luminous Intensity
1800mcd
1800mcd
1800mcd
1800mcd
Wave Length of LEDs
625~630nm
625~630nm
625~630nm
625~630nm
Viewing Angle
70°/30°
70°/30°
70°/30°
70°/30°
Remote Control Distance
100m
100m
100m
100m
N.W. Of Model
2.5Kg
3.5Kg
5.0Kg
5.5Kg
Package Size
670*330*250mm
720*380*250mm
1020*440*250mm
1020*470*250mm
Package Size With Power Supply
970*330*250mm
1070*380*250mm
1320*440*250mm
1320*470*250mm
Power
15 W
15 W
20 W
30 W
Working Voltage of Display Panel
DC 12V
DC 12V
DC 12V
DC 12V
Prepared Length of Power Cable
10m
10m
10m
10m
Power Box Dimensions
250*220*75mm
250*220*75mm
250*220*75mm
250*220*75mm
Power Supply In Power Box
12V/320W
12V/320W
12V/320W
12V/320W
Input Power Supply
AC220V
AC220V
AC220V
AC220V
