| Prod Model: |
H-S600BP18B2C-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Source: |
LED |
| Type: |
Flat-Type |
| Appearance: |
Square |
| Certification: |
CE |
| Emitting Color: |
Ww2700-3500k,Tw4000-4500k,Nw4500-5500k,Cw6000-7500 |
| Beam Angle: |
120 |
| Voltage: |
AC100-240V |
Product Description

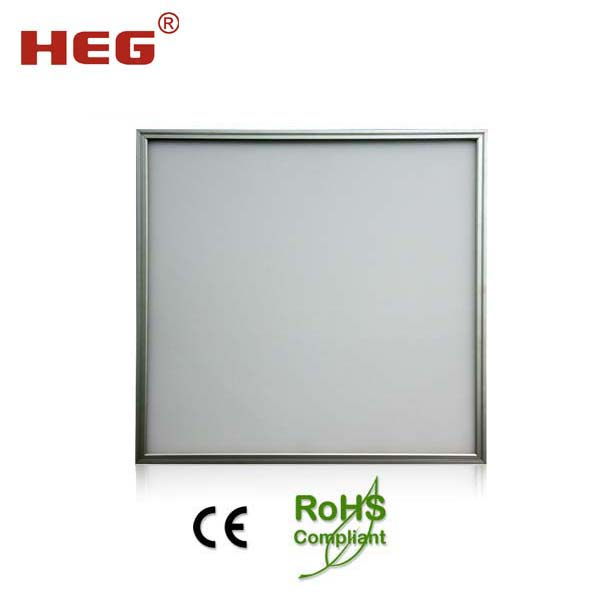

CTT Adjustable 600*600 LED Light Panel
Model No.: H-S600BP18B2C-6
Wattage: 18W
Dimension: 600*600*12mm (595*595*12mm optional)
LED Source: SMD3528, 336LEDs
Input Voltage: AC100-240V
Work Voltage: DC24V
Beam Angle: 120°
CCT Ajustable Scale: 3000-6500K
Dimming Mode: RF
Luminous Flux: 990Lm@typ. 3000K
CRI: >70Ra (>80Ra optional)
Housing: Aluminum+Acrylic.
|
Model No. |
H-S300BP9B2C-6 |
H-S300BP18B2C-6 |
H-S600BP18B2C-6 |
H-S600BP36B2C-6 |
|
Wattage |
9W |
18W |
18W |
36W |
|
Dimension |
300*300*12mm |
300*300*12mm |
600*600*12mm |
600*600*12mm |
|
LED Source |
SMD3528, 168LEDs |
SMD3528, 336LEDs |
SMD3528, 336LEDs |
SMD3528, 672LEDs |
|
Input Voltage |
AC100-240V |
AC100-240V |
AC100-240V |
AC100-240V |
|
Work Voltage |
DC24V |
DC24V |
DC24V |
DC24V |
|
Beam Angle |
120° |
120° |
120° |
120° |
|
CCT Ajustable Scale |
3000-6500K |
3000-6500K |
3000-6500K |
3000-6500K |
|
Dimming Mode |
RF |
RF |
RF |
RF |
|
Luminous Flux |
460Lm@typ. 3000K |
990Lm@typ. 3000K |
990Lm@typ. 3000K |
1980Lm@typ. 3000K |
|
CRI |
> 70Ra |
> 70Ra |
> 70Ra |
> 70Ra |
|
Housing |
Aluminum+Acrylic |
Aluminum+Acrylic |
Aluminum+Acrylic |
Aluminum+Acrylic |
|
Remark 1: CRI> 80Ra optional |
Shenzhen Hermes Opto-Electronics Technology Co., Ltd., was established as an innovative & professional LED lighting solution supplier in 2001. We provide highest quality LED lighting products as well as professional pre- and after-sales service to the customers worldwide.
Our products cover a great variety, which include LED panel light, LED downlight, LED tube, LED ceiling light etc. As a qualified manufacturer in this field, we have over 350 employees, among which there are 20 professional engineers dedicated to R & D.
By now, we have regular customers from Europe, North America, Asia, Middle East ect. Due to our high quality products, prompt delivery, professional service.
Rigorous modern management style, comprehensive marketing network and pre- and after-sales service system, are the reliable guarantee for the continuous improvement of production techniques, product quality, enterprise development and expansion.
We warmly welcome your inquiry and sincerely hope for a good long-term cooperation with customers from all over the world.
