Model No:

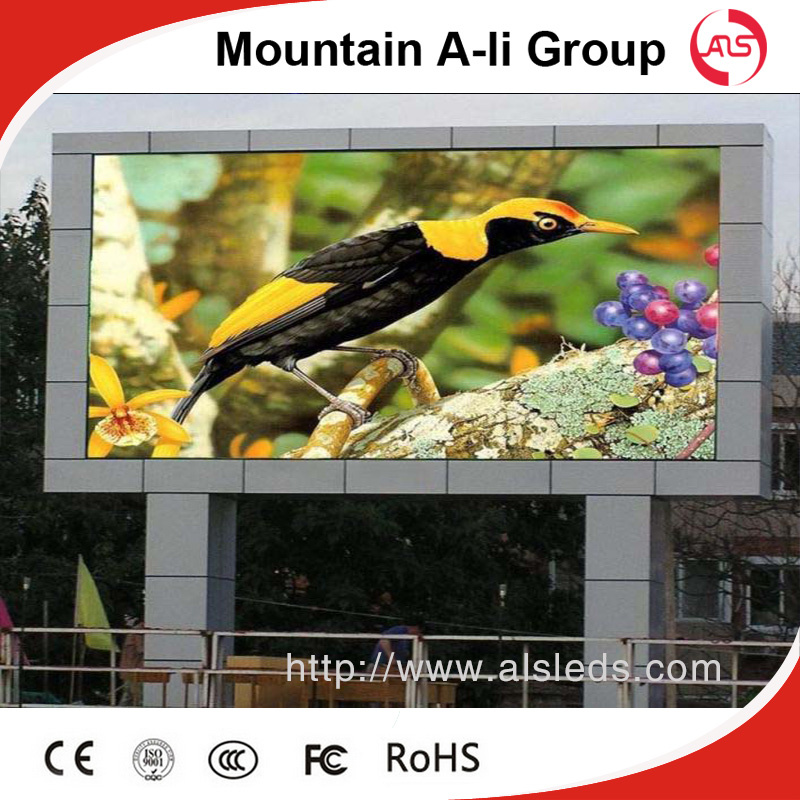

P13.33 Outdoor LED Display
Pixel Configuration:
1r1g1b
LED Module Size:
320*160mm
Cabinets Size:
960*960mm
LED Modules Max Power:
Less Than 600W/M2
Warranty:
2 Years
LED Module Resolution:
24dots(W)*12dots(H)
Brightniess:
Greater Than 5000CD/M2
Best View Distance:
15-50m
Mtbf:
9000 Hours
Tube Chip Color:
Full Color
IP Rating:
IP67
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Display Type:
LED Video Display
Application:
Advertising
Certification:
Ios2000,FCC
Pixel Pitch:
13.33mm
Pixel Density:
3906dots/M2
Scanning Mode:
1/6 Scan
Product Description
Product Description
Mountain A-Li Group Electronic Company Professional development manufacturing LED display system products and lighting products, was founded in 2000, own workshop area 20000 m2, branch office and agents cover all over China, with about 300 employees.
Product features:
1. Low energy consumption, long lifespan, less maintenance performance.
2. No color difference, concentrating well, good viewing angle.
3. Better waterproof, better radiation, better dustproof, good quality modules, under the same conditions, using two more years than SMD.
4. High brightness, high refresh, the biggest advantage of a comprehensive reflection of outdoor HD LED display.
5 .Simply installation, easy to maintain, easy to use.
Parameters
The specifications of modules
Items
Parameter
Product Model
P13.33 Outdoor Full Color LED Module
Module size
320mm*160mm
Pixel pitch
13.33mm
Pixel density
5625dots/m2
Pixel configuration
1R1G1B
Module resolution
24dots(W)*12dots
Module maximum power consumption
22W
Module Thickness
2.5CM
Module Weight
0.8kg
Driving method
Constant Current Driving
Scanning method
1/6 scan
Interface
HUB08
Brightness
≥5000cd/m2
The specifications of cabinets
Cabinet size
960mm*960mm
Module quantity
18pcs
Power supply
5V/40A 5V/60A
Cabinet resolution
72*72dots
Optimal viewing distance
15M~50M
Optimal viewing angle
160°(W) 120°(H)
RHWorking temperature
(Work :-20°C~+60°C)
System operating humility
10%-95%
The specifications of power supplier
Operating Voltage
AC220V±10%
Average power consumption
350W/H
Maximum power consumption
≤600W/m2
Electric current
≤20mA(single LED)
The specifications of control card
Control Panels
Pentium4 or above
Operating system
WIN98/2000/NT/XP
Control model
Synchronization with PC
The specifications of the main technical parameters
Driving device
Constant Current Driving
Refresh rate
≥600HZ
Grey scale
RGB Each 256, can display 16.7M colors)
MTBF
≥9000hours
Power switch
Automatic Switch
Display Mode
800*600/1024*768/1280*900
Company Building

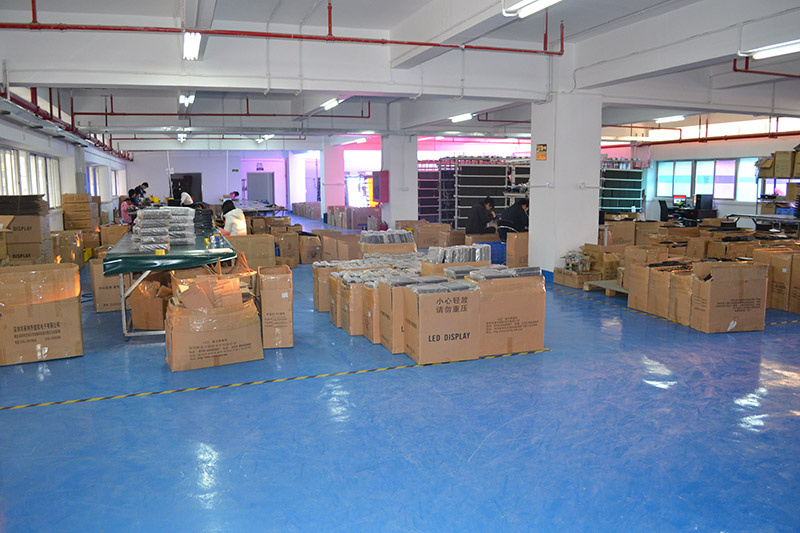

Goods Producting Line
Our services:
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Well-trained and experienced staffs to answer all your enquires in fluent english.
Why choose us?
1. Advanced machinery, well trained workers.
2. More than10 years experience in LED lighting industry.
3. Unique designed, good quality, competitive price.
4. Full range of indoor and outdoor LED lighting solution.
5. If you want to know the further details are required. I will attempt to provide 6.product matches with complete details for your reference
Remarks
1.Payment term: 30% T/T in advance and balance before delivery.
2.Delivery time: Within 15 working days after 30% advance payment.
3.Free training: You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
4.Installation: We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
