Automatic Drainage 18/24W New LED Wall Washer

Prod Model:	RH-W47 Called "Polar Bear"
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Polar Bear Rh-W47
Size:	L1000*W45*H75mm
Power Factor:	>0.9
Luminous:	90-110lm/W
Color:	RGB/White/Warm White
Chip Brand:	Epistar, Bridgelux, CREE, Edison
Environment Temperature:	-40-5-+85 Degree
New Feature:	Automatic Drainage Hole
Net Weight:	1.5kg (18W)
CRI:	75
Emitting Color:	Yellow
IP Rating:	IP65
Diffuser:	Tempered Glass
Beam Angle:	45??
Lifespan:	30000 hours
Warranty:	2 Years
Certification:	RoHS
Electric Current Type:	AC
Input Voltage:	220V
Power:	18W

Product Description

Automatic Drainage 18/24W New led Wall Washer , called "Polar Bear"

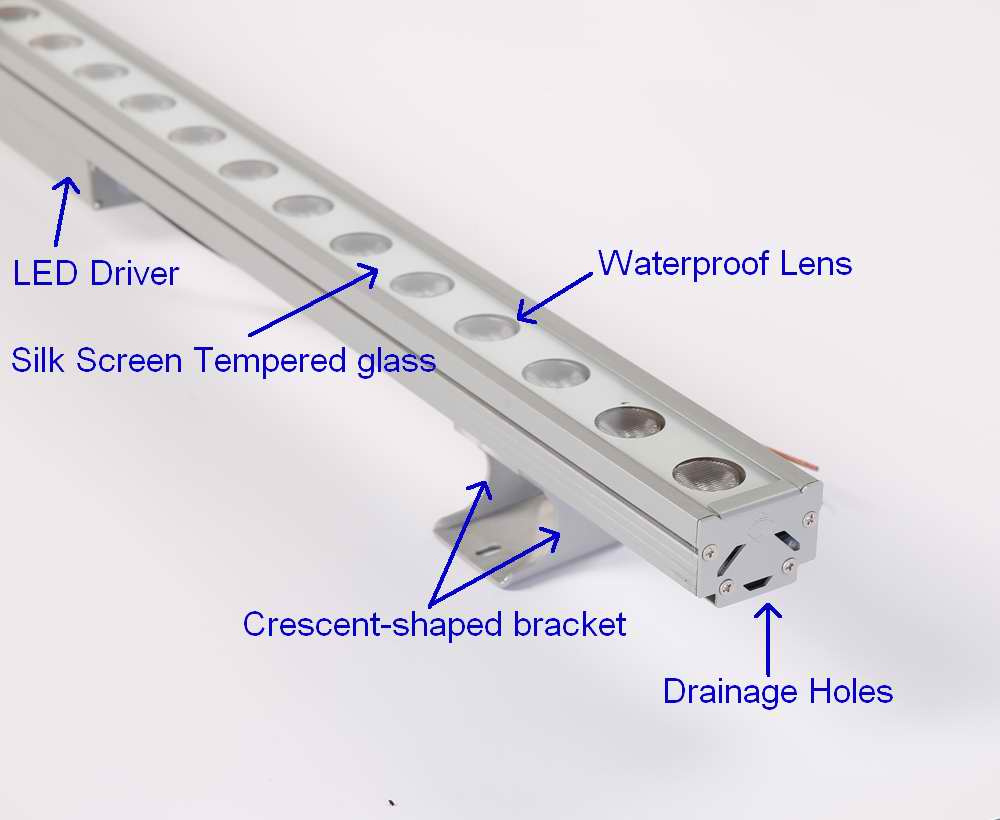

New Features:
1.Automatic drainage holes :it could let the water and fog come out of the body, much better waterproof.
2.Crescent-shaped bracket can be mounted at 90degree.
3.External LED driver under the body , better heatsink and Easy to repair.
4.Shading plate for selection,  print the logo at ease on the glass
5.Transparent or Silk Screen Tempered glass for selection.
6.Designed by our engineers , We are the sole owners. So we could control good quality step by step.

Model	RH-W47
Specifications	Size(mm)	L1000*W45*H75MM	LED Brand :	Epistar / Bridgelux /Edison for option.
	Power (W) :	18*1W/24*1W	Beam Angle:	waterproof lens 30/45/60/90Degrees /10*45/10*60/20*50 Degrees
	Input voltage:	AC85-265C/DC24V	Working Temperature:	-400C - + 850C
	Power Factor :	More than 0.95	Material:	Aluminum +Tempered glass
	Efficacy:	80-110LM/W (W) .	Packing:	105*21*32cm /10pcs,neutral packaging
	CRI:	More than 85%	Loading Qty:	3200pcs / 20`GP
	LED color:	W/WW/R/G/B/Y/RGB	Delivery Time:	15 days after payment for 20`GP
	CCT:	2700-6500K

Advantages:
1)LED wall washer with high power LED chip, high luminance, low energy cost, long life span
2)Driving circuit can endure high-temperature, avoiding short circuit, it has high reliability
3)High-brightness, good heat emission, nice colors can substitute the original lights
4)Long working life, soft light no hurt for eyesight.
5)Energy saving, Environment friendly
6)No UV or IR radiation
7)Integrated design with hosing and electric parts, legerity, beautiful and easy to install

Applications:
1) Lighting for lawn, tunnel, parking lot, gas station
2) Lighting for virescence site, advertising board, outside wall, monomer architecture
3) Lighting for the special equipment of hospital, civilization
4) Ambience lighting for bar, hotel, dance hall
5) Lighting for billboard, building, outside wall, factroy.
6) Lighting for streets, stadiums, bridges, outside Buildings, car Parks, billboards
7) Lighting for marketplace, library, museum, supermarket, storage rooms, corridor
8) Lighting for landscaping building, wall washing for bars, clubs, stages, plazas

Remarks:
1)LED Wall Washer should be used in accordance with the environment requirement
2)Set one as a host, the others set as address mode when many sets wall washer working together.
3)Set all the lights to the address mode(001-512), instead of the master internal control mode when the multiple connectors receive the command of DMX signal.
4)Setting the same address code, the lighting change with the same effect;
5)To ensure the transmission of the DMX signal is reliable, when lighting connecting beyond 100M, should increase amplifier to enlarge the DMX signal.
6)The input and output port should meet the requirements, otherwise it will damage lighting.


Harmony's main products:
LED Wall washer; Flood light; Street light
LED panel light, downlight, track light.


Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into production.
4. Protection of your sales area, ideas of design and all your private information.
5. Best quality and competitive price

Packaging and Delivery
Standard packing with box&carton up to export standard or at customer's requirement, inner put some bubble film to protect the product

3-9workdays for 500-3000PCS after deposit, 1-3days for sample
