Prod Model: |
EPWL-01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Light Source Life Expectancy: |
≥ 100, 000 H |
Dimension: |
Dia 40*196mm |
LED Brand: |
CREE |
Rated Voltage: |
3.7V |
Charging Time: |
≈ 8h |
Explosion-Proof Grade: |
Exd II C T6 |
Continous Operating Hours: |
15h(Work Light)/7h(Strong Light) |
Rated Power: |
18W |
Rated Capacity: |
6.6ah |
IP Rating: |
IP68 |
Certification: |
UL |
Emitting Color: |
White |
Application: |
Industrial |
Product Description

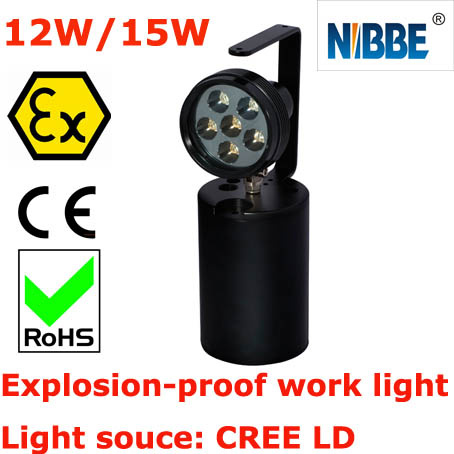

ATEX explosionproof LED work light
1. Application:
Hazardous zone 1&2;
Dust zone 20, 21& 22;
Explosive gas atmosphere class: IIA, IIB, IIC;
Temperature class: T1-T6;
Widely used in patrol, overhaul, emergency rescue, cargo loading and unloading and other inside and outside places to used as movable light;
Applied to oil field, power, petrochemical, railway, metallurgy, mine, public security and fire fighting.
2. Features:
Both Flameproof enclosure and Increased safety make it's good explosion-proof performance.
High hardness alloy shell can withstand strong shock, so it can be applied in all kinds of severe conditions.
Imported high power LED light source, constant current output to ensure light's steady brightness.
Battery adopts high-energy lithium battery featured with large capacity, long lifespan, and can be recycling, it is economical and environmental.
Both can be used as portable lights or be used on the support which is adjustable from 1.2meter to 1.3 meter. The wheels at the bottom of the lamp body which can move on ground or track easily.
The light can be working in heavy rain. The aluminum alloy body can resist high impact.
Two options: Strong light and work light for different needs, easy to switchover.
3. Operations and Cautions:
Please make sure it's power off before charging.
It can be used anytime within 6 months when fully charged for one time; If it remains standby status for a long time, it should be charged at least one time within half year.
Try to avoid charging or storing on the high temperature occasions in order to prolong the light's and battery's service life.
Do not disassemble hardware and seal components to avoid disabling light's performance and capability. If light must be disassembled, it should be handled by professiona person.
Description:
1 x CREE Q4high-luminance white LED with lifespan of more than 100, 000 hours.
High-energy18650 Li-ion batteries, 600 times circulating life, with protection circuit.
Machined6063-T6 aircraft aluminum case with anodized finishing is tough andlightweight, insulative, extremely durable and resists crushing.
Toughenedglass with 6mmthickness as lens that assures clear and bright beam, scratch-proof.
Aluminmumreflector focuses the LED's light to creat a smooth, near-flawless beam andhas a better radiating than plastic.
Nicewaterproof design, can be used under water.
Intelligent electronic willprevent over-charging over-discharging and short circuit.
Stable current can providestable brightness. Protection circuit will shut down automatically when thebattery reaches a low voltage value.
Three output levels— High light, working light and strobe...Withbattery capacity forecast.
ATEX explosionproof LED work light
Parameter |
Value |
Power |
30W |
Rated Voltage |
24V |
Light Efficency |
90LM/W |
Rated Capacity |
17Ah |
Working hours(work light) |
35h |
Working hours(strong light) |
20h |
Charging Time |
12h~16h |
LED Lifetime |
≥100000h |
Battery Lifetime |
≈1000 times(cycle) |
Ex mark |
Ex de IIC T6 |
Anti-corrosion Class |
WF2 |
IP Grade |
IP66 |
Gross Weight |
20KG |
