Beam Angle:
25deg &80deg
Optional:
18-43VAC
Light Source:
LED
Lamp Body Material:
Aluminum Alloy
Power:
≥30W
Color:
White
Emitting Color:
Cool White
Certification:
EMC
With Light Source:
With Light Source
Install Style:
Bracket
IP Rating:
IP66
Voltage:
90-264VDC
Product Description

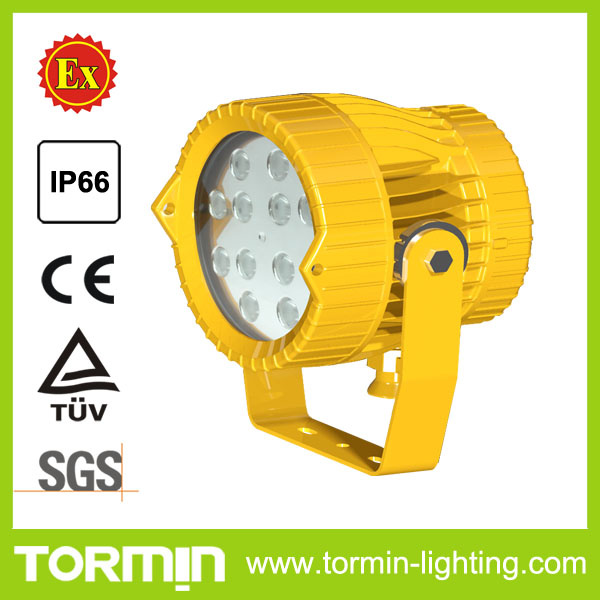

60W Anti-explosion Explosin-proof fixed LED Spotlight Product Description 1)Beam Angles:25,40 or 80 degree is available . 2) The housing is especially designed to dissipate heat ,which increase the efficiency and lifespan of the LED ,so that to ensure the 100,000 hours LED lifespan . 3) The locking device on the bracket will keep the lamp from shift or trembling when harsh vibration.. 4) It adopts American CREE LED as light source,can save 60% or more on energy than the metal halide lamp. 5) Equipped with world famous brand electrical appliance ,ensuring the lamp have a stable performance .. 6) The lamp is flame proof type of protection,designed for use in harsh environment or explosive application
Lamp
Beam Angle
POWER (W)
LED Module
Voltage
Power factor
CCT
CRI
Lumen TESTED (lm)
BC9501-L25
25
25
CREE LED
90V - 305V
>0.98
4000K-6000K
>80
3300
BC9501-L25
80
25
CREE LED
90V - 305V
>0.98
4000K-6000K
>80
3300
BC9501-L40
25
40
CREE LED
90V - 305V
>0.98
4000K-6000K
>80
5508
BC9501-L40
80
40
CREE LED
90V - 305V
>0.98
4000K-6000K
>80
5508
BC9501-L60
25
60
CREE LED
90V - 305V
>0.98
4000K-6000K
>80
7128
BC9501-L60
80
60
CREE LED
90V - 305V
>0.98
4000K-6000K
>80
7128
