| Prod Model: |
p10, p12, p16, p20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
ETL |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
350W / m² |
Product Description

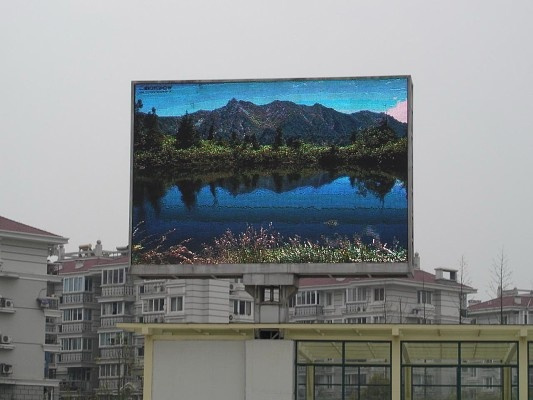

Parameters Outdoor DIP advertising LED display:
Pixel Pitch (mm) 10mm 12mm 16mm 20mm
Pixel density(pix/m2) 10000 6944 3906 2500
LED Type DIP346
Viewing Angle H: 120° , V: 60°
Brightness(nits) ≥ 6500 ≥ 5000 ≥ 7000 ≥ 5500
Drive Method 1/4scan Static
Color Depth 16384
Refresh Rate(Hz) 2200 2800
Module Size (mm) 160× 160X28.5 192× 192X28.5 256× 256X28.5 320× 320X28.5
Cabinet Size(mm) 960× 960X150 1024× 1024X150 1280× 960X150
Cabinet Material Steel
Cabinet weight(kg) 50 55 68
Voltage 110/220V
Average. Power(W/m2) 250 170 250 220
Max. Power (W/m2) 750 500 750 650
IP Grade IP65
Operating temperature/humidity temperature: -20-50degree humidity: 10-90%RH
Storage temperature/humidity temperature: -40-60degree humidity: 10-90%RH
Lifetime(h) ≥ 100000
Compliant Standard CCC, CE, ROSH
Any interesting
Our company promise high quality, attractive price. ISO9001: 2000 international quality strictly controlled. Hoping you enter and scan our company's homepage. Our main products are: LED display screen, LED display signs, LED bulbs, LED spotlights, LED street lihgt, LED fluorescent lamp, LED tube, LED flexible stripe, LED soft stripe.
