| Prod Model: |
CSH01-A3L-02 |
| Markets: |
North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
A3 Landscape(Customized Sizes Available) |
| Faces: |
Single-Sided |
| Thickness: |
Super Slim ,Minimum 6mm |
| Power Supply: |
AC/DC Power Adaptor, Input 110V-240V, Output 12V |
| Lighting Resource: |
SMD LED Light Strip (SMD3528) |
| Color Temperature: |
Pure White / Cold White / Warm White |
| Lifespan: |
More Than 50,000 Hours |
| Type: |
Ultra Slim Light Box |
| Usage: |
Advertising |
| Material: |
Acrylic |
| Shape: |
Rectangle |
| Suitable For: |
Indoor |
| Pringting Carrier: |
Inkjet Film |
| Style: |
Decoration |
| Certification: |
UL |
| Installation: |
Ceiling Hanging |
Product Description

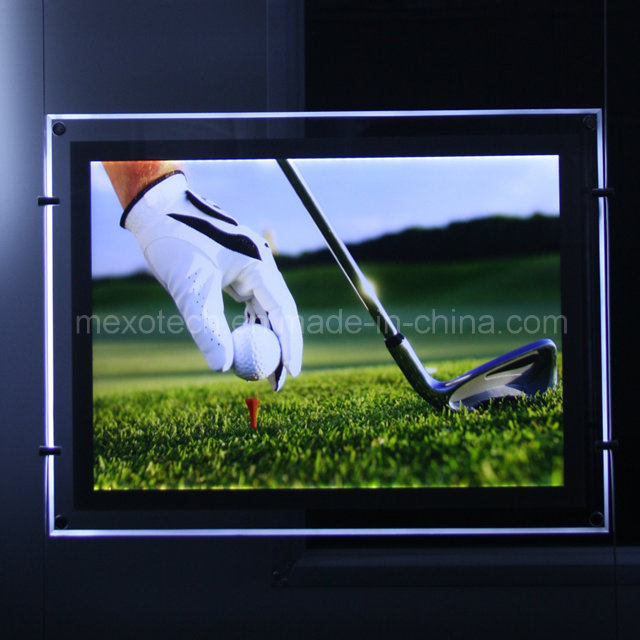

Window Display Single Side Acrylic Advertising Slim Light Box with LED Backlit is widely used for advertising media in all the countries. it easy to change the poster inside, and the ultra bright LED lighting as well as the super thin acrylic panel can draw people's attention immediately also look elegant. The acrylic frame material and LED light strip backlit make the light box look more fashionable and elegant.
1. Single sided,fasten bolt change pictures,crystal frame and rectangle shape
2. Super slim, minimum thickness: 6mm
3. Light guided plate: adopt high-quality light guide plate, LED light strip backlit, in additon to NCN engraving technology, so that is uniform light on light box surface.
4. LED light source, energy saving and long lifetime.
5. Powered supply: AC110V-240V to DC12V adapter with switching control.
6. Applications: Widely use in restaurants, airports, railway stations, metro, chain stores, banks, bus stations, large-scale exhibition works.
| Item No. | Poster Size(mm) | Visual Size(mm) | Frame Size(mm) | Power Watt(W) | Power Ampere(A) | N.W.
(kg) | G. W.(kg) | Package Size(cm) |
| CSH01-A0 | 1189 x 841 | 1179 x 831 | 1251 x 903 | 45.72 | 3.81 | 16.5 | 18 | 135 X 100 X 5 |
| CSH01-A1 | 841 x 594 | 831 x 584 | 903 x 656 | 32.16 | 2.68 | 7.5 | 8.2 | 100 X 76 X 5 |
| CSH01-A2 | 594 x 420 | 584 x 410 | 650 x 476 | 7.56 | 0.63 | 3.9 | 4.6 | 76 X 58 X 2 |
| CSH01-A3 | 420 x 297 | 410 x 287 | 476 x 353 | 3.84 | 0.32 | 2.2 | 2.6 | 58 X 46 X 2 |
| CSH01-A4 | 297 x 210 | 287 x 200 | 353 x 266 | 1.92 | 0.16 | 1.3 | 1.6 | 46 X 38 X 2 |
Located in Shenzhen, the window of China, Hawkspace is a manufacturer of LED back-lite application products since 2006, our products are applied with advanced CNC V-cutting engraving acrylic LGP (light guiding plate) and LED edge-lite. LED is ideal for energy saving and acrylic looks crystal, so our products are well met with the trend of lower carbon and fashion life, since 2007 we have exported 500, 000+ sets of LED light panels to Europe, North America, Australia as well as Asia. With solid OEM / ODM capacity and rich experience in foreign trade, Hawkspace can provide high quality product and good services to our valuable customers.
As a professional manufacturer, our young and passionate team is working hard to develop the best LED lighting panels for building an eco-friendly world. With the feature of energy-saving and ultra slim body, Mexo products are very good for and widely used in the fileds of --
1 Super Slim Light Box, for advertising and display;
2 Photo Frame with back light;
3 Ceiling Lamp, for either resident house or office;
4 Light panels for Home Decoration;
5 Crystal Lighting Giftwares...
Welcome to contact us when you need any further information of our products, Hawkspace offers not only high performance-price products, but also prompt and professional service, we are awared that long term business is based on long term loyalty and stable quality.
Welcome to Hawkspace for our Win-Win business!
