Prod Model: |

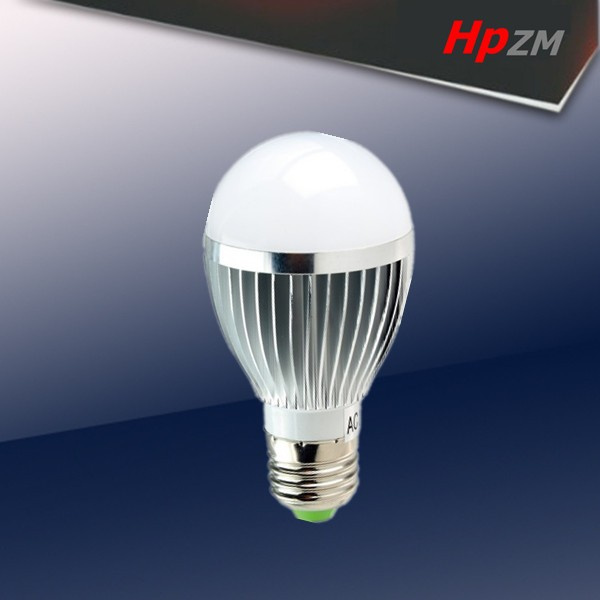

A60 Aluminum LED Light Bulb |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Chip: |
SMD2835 |
Lifespan: |
30000-50000h |
Driver: |
Built-in IC Control |
Bulb Size: |
C35/A45/A60 Ect. |
LED: |
Low-power |
Light: |
Color Scanning |
Usage: |
Landscape Accent |
Warranty: |
3 Years |
IP Rating: |
IP55 |
Input Voltage: |
85-265V |
Color Temperature: |
2700-7000k |
Power: |
3-15W |
Lamp Holder/Base: |
E27/GU10/MR16/Other |
Product Description
A60 Aluminum LED Light Bulb
Specification:
Vlotage:AC85-265V DC12V
Power:3W/5W/7W/9W/12W ect.
Color temp.: 2300K-7000K
Lifetime: 50000H
Luminous flux: 120lm/W
Model No | Specifications | Technical Data | Chips Spec |
Base | Dismension | Materal | Input Voltage | Power | Power Factor | CCT | Lumen | CRI | Model | PCS |
HP-LED Bulb-03 | E27/B22 | φ50*90mm | PBT+PC+Alu | 220V-260V | 3W | ≥0.4 | 3000K-6000K | 240 | ≥80 | 2835 | 6 |
HP-LED-Bulb-05 | E27/B22 | φ55*95mm | PBT+PC+Alu | 220V-260V | 5W | ≥0.6 | 3000K-6000K | 360 | ≥80 | 2835 | 10 |
HP-LED-Bulb-08 | E27/B22 | φ60*117mm | PBT+PC+Alu | 220V-260V | 8W | ≥0.6 | 3000K-6000K | 520 | ≥80 | 2835 | 16 |
HP-LED-Bulb-10 | E27/B22 | φ70*125mm | PBT+PC+Alu | 220V-260V | 10W | ≥0.6 | 3000K-6000K | 720 | ≥80 | 2835 | 22 |
HP-LED-Bulb-12 | E27/B22 | φ80*135mm | PBT+PC+Alu | 220V-260V | 12W | ≥0.6 | 3000K-6000K | 840 | ≥80 | 2835 | 26 |
HP-LED-Bulb-15 | E27/B22 | φ95*164mm | PBT+PC+Alu | 220V-260V | 15W | ≥0.6 | 3000K-6000K | 1000 | ≥80 | 2835 | 30 |
HP-LED-Bulb-03 | E27/B22 | φ50*90mm | PBT+PC | 220V-260V | 3W | ≥0.4 | 3000K-6000K | 200 | ≥75 | 2835 | 12 |
HP-LED-Bulb-05 | E27/B22 | φ55*95mm | PBT+PC | 220V-260V | 5W | ≥0.4 | 3000K-6000K | 300 | ≥75 | 2835 | 18 |
HP-LED-Bulb-07 | E27/B22 | φ60*117mm | PP+PC | 220V-260V | 7W | ≥0.4 | 3000K-6000K | 360 | ≥75 | 2835 | 24 |
HP-LED-Bulb-09 | E27/B22 | φ70*125mm | PP+PC | 220V-260V | 9W | ≥0.4 | 3000K-6000K | 420 | ≥75 | 2835 | 32 |
HP-LED-Bulb-12 | E27/B22 | φ80*135mm | PP+PC | 220V-260V | 12W | ≥0.4 | 3000K-6000K | 580 | ≥75 | 2835 | 42 |
HP-LED-Bulb-15 | E27/B22 | φ95*164mm | PBT+PC | 220V-260V | 15W | ≥0.4 | 3000K-6000K | 720 | ≥75 | 2835 | 52 |
HP-LED-Bulb-03 | E14/E27/B22 | φ45*77mm | PP | 220V-260V | 3W | ≥0.4 | 3000K-6000K | 120 | ≥75 | 5730 | 5 |
HP-LED-Bulb-05 | E27/B22 | φ52*88mm | PP | 220V-260V | 5W | ≥0.4 | 3000K-6000K | 180 | ≥75 | 5730 | 8 |
HP-LED-Bulb-07 | E27/B22 | φ60*96mm | PP | 220V-260V | 7W | ≥0.4 | 3000K-6000K | 260 | ≥75 | 5730 | 11 |
HP-LED-Bulb-09 | E27/B22 | φ68*110mm | PP | 220V-260V | 9W | ≥0.4 | 3000K-6000K | 350 | ≥75 | 5730 | 14 |
HP-LED-Bulb-12 | E27/B22 | φ77*113mm | PP | 220V-260V | 12W | ≥0.4 | 3000K-6000K | 420 | ≥75 | 5730 | 17 |
HP-LED-Bulb-15 | E27/B22 | φ86*123mm | PP | 220V-260V | 15W | ≥0.4 | 3000K-6000K | 500 | ≥75 | 5730 | 20 |
Features:
1) Separated constant current drive designed to ensure that the use of high-power LED security.
2) Driving circuit can endure high-temperature, avoiding short circuit, it is long-life designed and high reliable.
3) Comply with EMT testing of safety test
4) High-grade Magnesium alloy shell, thermal well
5) using acrylic optical lens, and the radiation point of view can be reached (15 -90 degrees celsius), then to form a ray of light, its unique optical technology is better than any other ordinary lens.
6) The voltage and lamp tap can meet the requirements of the customer.
7) High-brightness, thermal little, good color, can substitute the original spotlights.
Applications:
General lighting
1) Apply to hotel, shopping malls etc., can be universally used for decorative lighting of various commercial place
2) Apply to office, meeting room, exhibition hall, can be used for interior lighting in the office building
3) Apply to residential lighting such as aisle, washroom, corridor, storehouse, etc.
4) Apply to shop window, painting displaying, artwork performance, etc., can be used for partial close-up lighting.
5) Apply to cafe, bar etc., can be used for entertainment lighting
Note:
1 All the above items are under factory standard warranty.
2 All the shape, size, color, brightness is available here and OEM is welcome;
3 The prices are negotiable.
4 The price is much more flexible and incompletely depends on the quantity you need.
