| Prod Model: |
KSH-060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
A0-A4 and Can Be Customized |
| Warranty: |
12 Month |
| Life Span: |
Above 80000 Hours |
| Brightness: |
Above 2500lux |
| Thickness: |
15mm |
| Cover Width: |
30mm |
| Type: |
Ultra Slim Light Box |
| Usage: |
Advertising |
| Material: |
Aluminum |
| IP Rating: |
IP33 |
| Shape: |
Square |
| Suitable For: |
Indoor |
| Installation: |
Ceiling Hanging |
| Pringting Carrier: |
Adhesive Film |
| Style: |
Decoration |
| Certification: |
UL |
Product Description

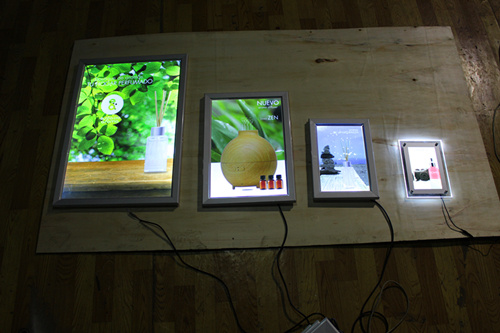

1, Item No.: Single Sided LED Light Box
(1)A1(594mm wide, 841mm height) size illuminated poster frame single side lightbox with strut and printed posters.
(2)Power cable(3m) at the bottom of the frame.
(3)Cables and sleeves(800mm) on top
2, Frame: Aluminum Alloy (Four Clip Type)
3, Color: Electrophoresis Silver
4, Thickness: 14mm, Frame Width: 40mm
5, Light Source: LED
6, Slim Type, Easy to Install
7, Application: Airport, bus-stop, metro-station, chain store, shopping mall, supermarket, hotel, restaurant, bank, exhibition and so on.
| Model | Frame Size
( mm ) | Picture Size
(mm) | Visible Size
( mm ) | Thickness | Weight
(KG) | Power |
| A0 | 1249*901 | 1204*856 | 1189*841 |
Thickness15MM
Cover Width 30MM | 15 |
|
| A1 | 901*654 | 856*614 | 841*594 | 8 |
|
| A2 | 654*480 | 614*440 | 594*420 | 6.8 |
|
| A3 | 480*357 | 440*317 | 420*297 | 2.8 |
|
| A4 | 357*270 | 317*230 | 297*210 | 2.1 |
|
