LED Source:
3X3w RGB,1 Red,1 Green,1 Blue
Beam Angle:
8/15/25/30/45/60 Degree
LED Chip:
Bridgelux/Epistar/Edison or OEM
Lamp Luminous Flux:
360-520lm
Lamp Luminous Efficiency:
120-140 Lm/W
Working Lifetime:
>50000h
Driver:
Built-in Constant Current Output
The Way Of Control:
RF/IR/DMX512
Working Temperature:
-20-+40 Centigrade
Style:
modern
Lamp Body Material:
Aluminum
Lighting Area:
3-5m^2
Power:
6-10W
IP Rating:
IP65
Certification:
UL
Light Source:
With Light Source
Color Temperature:
RGB
Technics:
Outdoor Powder Coating
Warranty:
2 Years
Voltage:
12/24VDC
Product Description

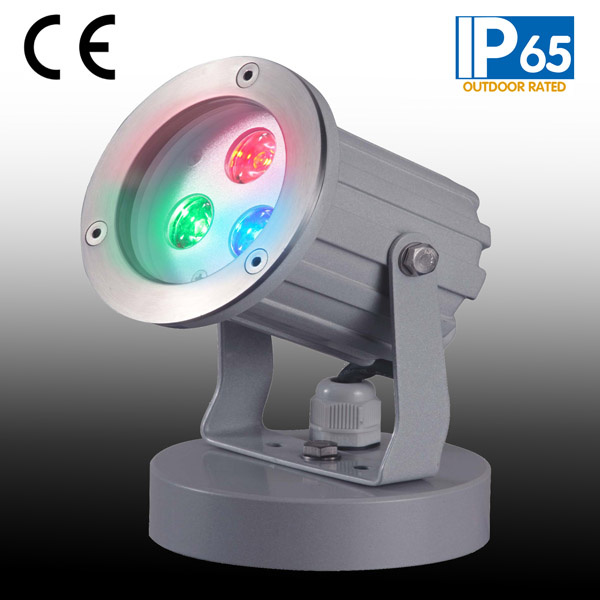

IP65 LED Garden Spot light, 9W RGB LED Garden Light,RGB Garden Lighting, LED Lawn Light,LED Path Light, LED Flood Light,Garden Lamp Specification:

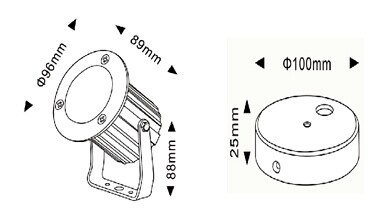

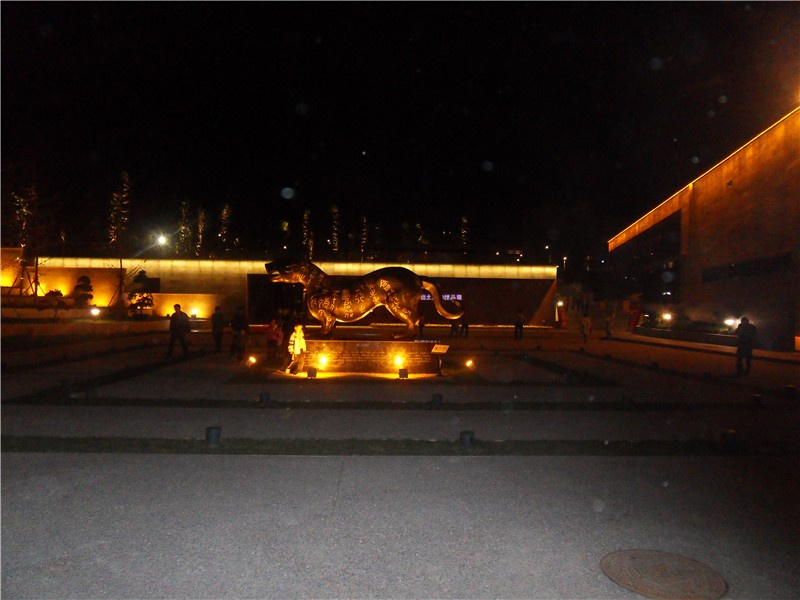

1.Housing:12# Die-casting powder coated aluminum.T=60-80μm.Adhesion of ISO class 1/ASTM class 4B; Body Size:as picture 2.Front cover:Stainless steel SUS304 or 316; 3.Bracket:Powder coated aluminum; 4.Glass:Tempered glass.T=4mm; 5.Lens:Efficiency>85%; 6.Cable gland:IP-68,PG-9 PVC; 7.Gasket:Tooling shaped seal; 8.Mounting Base:Powder coated die-casting aluminum; Garden Light, LED Garden spotlight, LED Tree Light,LED garden light Application: 1. Indoor & outdoor garden lighting decoration 2. Squares 3. Plazas 4. Mansions 5. Parks 6. River banks 7. Pedestrian streets 8. Yard 9. Parking lot 10. Seeded Strip 11. Uptown 12. Lawn
More information if need pls contact!
Item No.
LED Source
Beam Angle
Input Voltage
JP83031H
3X1W single color,cw/ww/nw/r/g/b is avaliable
8°/15° /20° /25° 30° /45°/60°
120/240V
JP83031
3X1W single color,cw/ww/nw/r/g/b is avaliable
8°/15° /20° /25° 30° /45°/60°
12/24VDC
JP83032H
3X3W single color,cw/ww/nw/r/g/b is avaliable
8°/15° /20° /25° 30° /45°/60°
120/240V
JP83033
3X1W RGB,1 red,1 green,1 blue
8°/15° /20° /25° 30° /45°/60°
12/24VDC
JP83032
3X3W RGB,single color,cw/ww/nw/r/g/b is avaliable
8°/15° /20° /25° 30° /45°/60°
2VDC
JP83036
3X3W RGB3in1,Tricolor
8°/15° /20° /25° 30° /45°/60°
24VDC
