Home LED Light Products 90W LED High Bay Lights

90W LED High Bay Lights

90W LED High Bay Lights
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: CLE-GK90-A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Energy-Saving: Long Lifespan
Certification: CE
Lamp Body Material: Aluminum Alloy
Color Temperature: Cool White
IP Rating: IP44
Power: 90W

Product Description

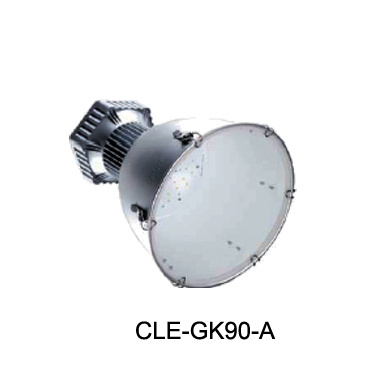

LED High Bay Lights

Item name LED High Bay light
Model CLE-GK90-AC220-FM-A
LED Light Source XB-D/XTE/Rebeles
No. Of LED 40PCS
Power 90W
Frequency 86%
Viewing Angle 80°
Rated light Effect 85lm/W
Liminous Flux 7200lm
Central illumination& effective radiation area illumination illumination area illumination illumination area
5m 117LUX Φ8m circle 94LUX Φ14m circle
6m 81LUX Φ10m circle 65LUX Φ17m circle
7m 59LUX Φ11.5m circle 48LUX Φ20m circle
CR Ra≥ I75
CCT CW: 5700K; PW: 4500K; WW: 3000K
Input Voltage 90-305VAC
Frequency 47-63Hz
PF 0.95
THD ≤ 15%
Storage Temp -40º C- +80º C
Working Temp -40º C- +50º C; 10%-95%RH
Working life 50000Hours
IP Rating IP44
Material AL
Net weight 4.8KG
Gross weight 6.0KG


This is Sally at your service, feel free to write to us for more details. Tell us what you need, we will provide high quality lights and considerate services.
Tel: 86-379-67893907
This is Sally at your service, feel free to write to us for more details. Tell us what you need, we will provide high quality lights and considerate services.
Tel: 86-379-67893907
Luoyang China Light Energy Technology Co., Ltd, founded in 2012, located in Luoyang Airport Industrial park, Henan China. It is a High-Tech enterprise within New Energy production at domestic and overseas, research and development, design, installation and sales. We totally invest 1.2 Billion and our factory covers an area of 30000 sqm. Our company has modern office buildings, workshops, intelligent showroom/ exhibition hall, production/ R&D and testing center. Our High-power LED lighting is one of the key projects in Luoyang Airport industrial park. And also we have got strong support from government and relevant authorities.

There are more than 200 people working here, including 45 professional technicists, 5 Doctors, 10 Graduates, 6 senior titles. We introduce first-class production and testing equipments from USA, Germany, Japan as well as inland. Core components from CREE of USA, Philips of Netherlands, Ming Wei of Taiwan, LED light sources bring together domestic first-class technology and information. With the help of sources of colleges &universities and R&D institutions, we bring in High-Tech talents and solve the cooling difficulties, luminosity uneven distribution and other challenges in high-power LED lighting applications. We innovate and research and develop unique light source configuration technology, Luminous efficiency of products achieves 120LM/W or more. So far, we are mainly manufacturing seven kinds of High-power LED COB source, Including 52 Varieties, such as LED Street light, LED High bay light, LED tunnel lights, LED explosion -proof lights, commercial and residential lighting. Our products are widely used in roads, offices, hospitals, petrochemical, factories, supermarkets, subway, coal and other industries. Our products have a long life, low-power consumption, small size, light-weight, high efficiency, fast response, Non-pollution, etc. Our energy-saving can be increased 80% compared traditional lighting products in same configurations, Lifespan can be increased 10times. And through the intelligent control system management our products can be achieved secondary energy-saving, energy-saving effect can be increased 40% on basis of origination. Our inspection and testing research center is the domestic first-class research center and passed measurement certification by the CMA.

Our company passed ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification, the production of LED lighting products the United States FCC, UL, European CE, China CCC, and CQC certification.

China Light, We care. Welcome friends all over the world to discuss the cooperation.
