North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage Range:
Stage, Theatre, Concert, Exhibition, Dance
LED Source:
8PCS 10W CREE RGBW 4in1 or Lumiengin White LEDs
Feature:
Each LED Can Be Controlled One by One
Beam Angle:
8degree
N.W.:
7.5kgs
Dimension:
1165X170X220mm
Light Source:
LED
Strobe:
Electronic Strobe
Control Mode:
Dmx Signal Control
IP Rating:
IP20
Certification:
RoHS
Control Channel:
10/38 Channels ( RGBW 4-in-1 ) , 5/14channels ( W
Voltage:
90-245V
Product Description
Feature: 1. 8pcs CREE 4in1 LEDs or LumiEngin White leds 2. 8 pixpels(each led is a pixpel) controlllable individually. 3. Lower power consumption and long lifetime

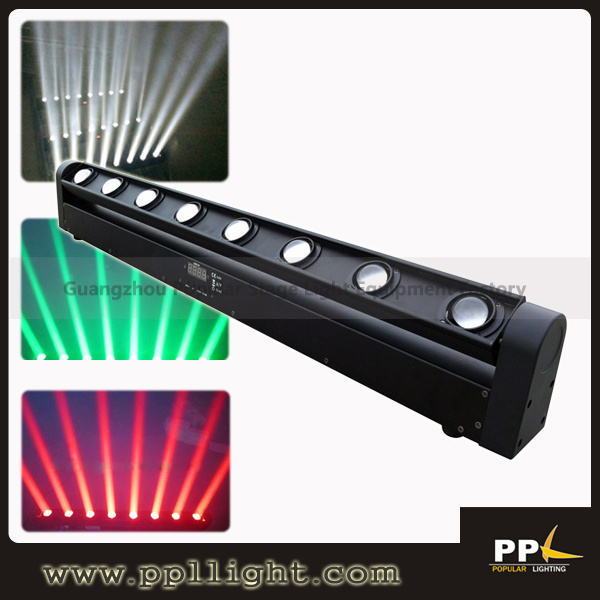

Specification: Item Name: 8X10W 4-in-1 RGBW CREE LED bar Moving Heads Beam Light Voltage: AC90-240V, 50-60Hz Power consumption: 100W Light Source: 8*10W single white LumiEngin or (RGBW 4 in 1 CREE LEDs) Lifespan: 50000hrs with low power consumption Beam Angle: 15° Color: Single white color or RGBW 4 in 1 Pan/Tilt: X axis 540° , Y axis 265° , 16bit Strobe: Electronic strobe with pulse effect, 1-18tims/s Zoom/Focus: With zoom / focus function Program: Built in 8 programmes, controlled by DMX controller Function: General dimming and blackout for all four colors, excellent color mixing and rainbow effect RMX: Remote DMX addressing, lamp on/off, sound control switch by controller Display: Blue LCD display Channel: 5/14CH Control mode: DMX512, Sound active, Auto and Master-slave Protection: Fan cooling over heap protection Packing size: 1165*170*220mm N. G/W: 7.5/5.5kgs Certification: CE, RoHS Warranty 12 months and 7 days money refund if dissatisfaction Payment: T/T, Western Union, PayPal Delivery time: 3-7 days
DMX Channel:
Channel
Function
Instruction
1
Pan
0-255 Pan
2
Pan speed
0-255 Pan speed
3
Dimmer
0-255 Dimmer
4
LED 1 Dimming
0-255 dimming brightness
5
LED 2 Dimming
0-255 dimming brightness
6
LED 3 Dimming
0-255 dimming brightness
7
LED 4 Dimming
0-255 dimming brightness
8
LED 5Dimming
0-255 dimming brightness
9
LED 6 Dimming
0-255 dimming brightness
10
LED 7 Dimming
0-255 dimming brightness
11
LED 8 Dimming
0-255 dimming brightness
12
Strobe
0-255 strobe from slow to fast
13
Internal Program
Internal program effect
14
Speed of internal program
Speed of internal program effect
Product Show:
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
