Control Modes:
Master / Slave, Stand Alone, and Sound Active
Control Options:
DMX, Auto-Trigger
Lighting Source:
1W × 84PCS (R: 21, G: 21, B: 21, W: 21)
Protocol:
Usitt DMX512
LED Color:
RGBW, 84X1w/84X3w
Name:
LED Bar 84W RGBW
Power:
AC100 - 240V, 50 - 60Hz
Maximum Power:
90W
DMX Channel:
17CH
Body Color:
Silver
IP Rating:
IP33
Certification:
CE
Beam Angle:
25??
Lifespan:
50000 hours
Diffuser:
Polycarbonate
Electric Current Type:
AC
Input Voltage:
110 - 240V
Emitting Color:
Full Range
Product Description

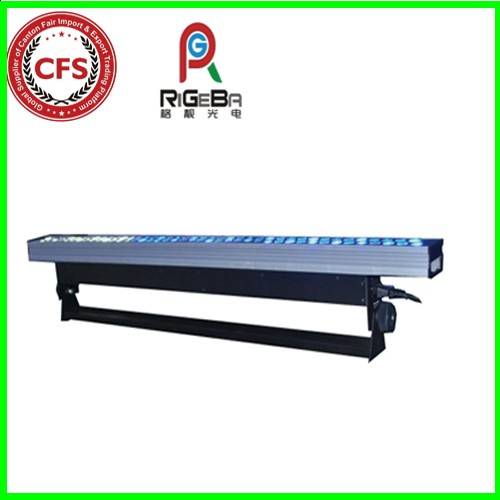

84x3W RGBW LED Wall Washer
Ø Unlimited programming effects
Ø Special lighting effect
Ø 32-bit colour (16.7 million color combinations)
Ø Supplying of a series of lighting effect include Sound active, Auto-run, Master/slave, Jump, Changing
Gradually, Strobe etc.
Ø Modular & highly portable
Ø No technical experience required
Ø Quick and easy installation
Ø More affordable than any existing solutions
Ø Sealed for long, durable lifetime
Ø No bulbs to replace
Ø Indoor use in well temperate rooms
CH1
0
turn off light dimmer, enable CH2 as menu ,you can select mode by CH2 and change speed by CH3
1--128
Master dimmer, CH2-CH16 as dimmer
129--255
flash(slow ->fast), select color by CH2-CH4
CH2
0-255
all red dimmer (ensure the value of CH1 is not 0)
0
turn off red dimmer or you can work / red dimmer single segment by CH5/CH8/CH11/CH14
1--15
FADE(color fade effect)
16--30
ASC(color jump change effect)
31--45
CE_00
46--60
CE_01
61--75
CE_02
76--90
CE_03
91--105
CE_04
106--120
CE_05
121--135
CE_06
136--150
CE_07
151--165
CE_08
166--180
CE_09
181--195
CE_10
196--210
CE_11
211--225
CE_12
226--240
SOUA
241--255
SOUF
CH3
0--255
all green dimmer (ensure the value of CH1 is not 0) / green dimmer single segment by CH6/CH9/CH12/CH15
0--255
as speed control(set CH1 0)
CH4
0--255
all blue dimmer / blue dimmer single segment by CH7/CH10/CH13/CH16
CH5
0--255
segment 1 red dimmer
CH6
0--255
segment 1 green dimmer
CH7
0--255
segment 1 blue dimmer
CH8
0--255
segment 2 red dimmer
CH9
0--255
segment 2 green dimmer
CH10
0--255
segment 2 blue dimmer
CH11
0--255
segment 3 red dimmer
CH12
0--255
segment 3 green dimmer
CH13
0--255
segment 3 blue dimmer
CH14
0--255
segment 4 red dimmer
CH15
0--255
segment 4 green dimmer
CH16
0--255
segment 4 blue dimmer
