| Prod Model: |
SP-1001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
LED Street Light |
| Item No.: |
Sp-1001 |
| Color: |
Warm White or Cool White |
| Color Rendering Index: |
80ra |
| Power Factor: |
More Than 0.90 |
| Total Harmonic Distortion: |
Less Than 5% |
| Working Environment Temperature: |
-20 ~+35 Celsius Degree |
| Frequency Range: |
47-63Hz |
| Junction Temperature: |
Below 75 Celsius Degree |
| Driver: |
Meanwell |
| Certification: |
CE |
| IP Rating: |
IP65 |
| Power Supply: |
AC |
| Application: |
Highway |
Product Description

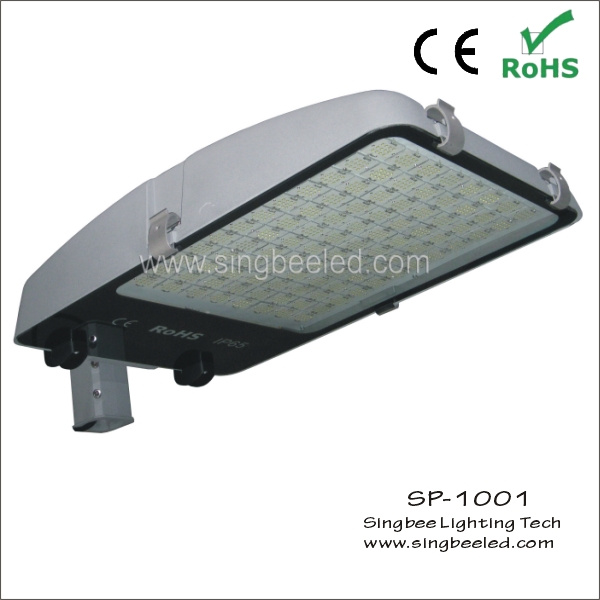

LED street light
1. Aluminum alloy IP65
2. Long Lifetime Energy-saving
3. High brightness low heat
4. UL certificated
5. Electronic Safety Standard: CLASS 1
6. Executive Standard: IEC598
Material and advantages:
1 Lamp frame is aluminum alloy with all fasteners stainless steel.
2 We use high-efficient LED to make lights energy-saving, environment-protecting and long lifespan.
3 We use alternative switch power supplier to change the voltage, ensure LED work routinely and extend its lifespan.
4 We make static-enduring painting on the surface, to resist acid and alkali and prevent aging.
5 5mm toughened transparent glass, high temperature resisting, high intensity, easy for lights penetration.
Standard Specifications:
Beam Angle: 170° Cool White: 5000~6000K 90~260V/AC 60mm Hole Flex Arm 60/48mm
Optional Parts:
Beam Angle: 130° Warm White: 3000~4000K 12/24V/DC 48mm Hole Straight Arm 60mm
Above may be changed with standard part to fit the specification required for your unique project.
Application:
Streets, High Ways, Bridges, Outside Buildings, Squares, Markets
Item NO.
|
Input(V/AC)
|
Power(w)
|
Luminous flux(lm)
|
Color temperature(K)
|
Color rendering property(Ra)
|
Protection
Class(IP)
|
SP-1001
|
90~260
|
50
|
3750
|
5000~6000
|
80
|
65
|
90~260
|
80
|
6000
|
5000~6000
|
80
|
65
|
90~260
|
100
|
7500
|
5000~6000
|
80
|
65
|
90~260
|
120
|
9000
|
5000~6000
|
80
|
65
|
90~260
|
150
|
11250
|
5000~6000
|
80
|
65
|
