| Prod Model: |
TPG-D801-W25S2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
LED Ceiling Office Lighting |
| Dimension: |
D230mm*H88mm |
| Cutout Size: |
200mm |
| LED: |
Samsung 5630 SMD LED/Taiwan 5630 SMD LED |
| Pf: |
>0.9 |
| Shell Color: |
White |
| Beam Angle: |
120 Degree |
| Dimmable: |
Dimmable, Non-Dimmable Optional |
| Luminous Flux: |
2250lm |
| CRI: |
>80ra |
| Certification: |
RoHS |
| IP Rating: |
IP44 |
| Color Temperature: |
Warm White |
| Application: |
Commercial LED Lighting |
| Lamp Body Material: |
Die-Casting Aluminum |
| Source Number: |
Samsung 5630 SMD/Epistar 2835 SMD LED |
| Lamp Installation: |
Recessed |
| Installation: |
Recessed |
Product Description

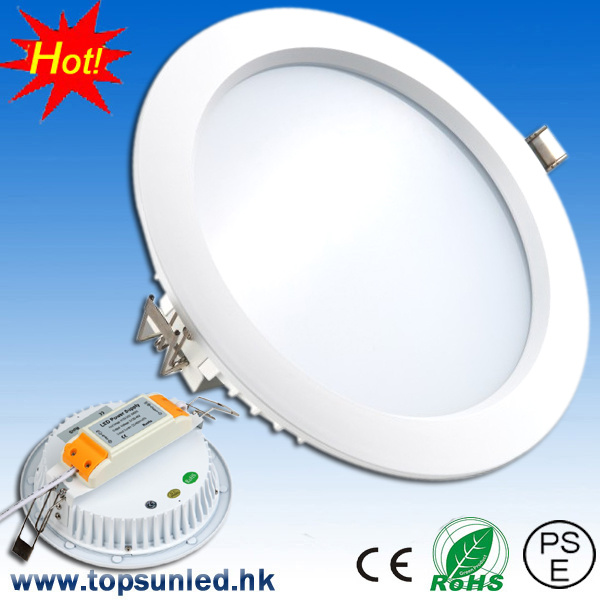

2014 Hot Sale 8 inch LED ceiling light round recessed office LED ceiling light 25W
Topsun is a professional manufacturer of LED Downlights, there are 6 series LED Downlights for optional with different size, CE RoHS PSE Approval. 3 Years Warranty.
TPG-D01 Series LED DOWNLIGHT ,CE ROHS PSE Approved,3 years warranty. 6W/10W/12W/15W/18W/20W/25W/30W; 3 inch/4 inch/5 inch/6 inch/8 inch optional
TPG-D301-W6S2, Dia125mm*H60mm,90mm cutout size,6 Watt
TPG-D401-W10S2,Dia140mm*H80mm,120mm cutout size,10 Watt/12 Watt
TPG-D501-W12S2,Dia180mm*H80mm,150mm cutout size,12 Watt/15 Watt
TPG-D601-W15S2,Dia190mm*H80mm,170mm cutout size,15 Watt/20 Watt
TPG-D601-W25S2,Dia230mm*H88mm,200mm cutout size,25 Watt/30 Watt
For more details about downlights, please feel free to contact me or send an inquiry directly, will try my best to reply you in time. Thank you!
Contact person: Sunny Wei
Mobile: +86 13723577812
Website: www.topsunled.en.alibaba.com
| Description | Dimension | Power |
| LED Downlight | D01 Series --- 3'' 4'' 5'' 6'' 8'' Aluminum Shell SMD LED Downlight, D02 Series --- 3'' 4'' 5'' 6'' 8'' Plastic shell SMD LED Downlight, D03 Series --- 4'' 5'' 8'' 12'' Round ultra-thin SMD LED Downlight. D04 Series --- 6'' 8'' 12'' Square shape ultra-thin SMD LED Downlight. D05 Series --- 2.5'' 3'' 3.5'' 4'' 5'' 6'' 8'' Round ultra-thin SMD LED Downlight . D06 Series --- 2.5'' 3'' 4'' Aluminum Shell COB LED Downlight . | 5W ~ 30W |
| Voltage | AC85-265V 50/60Hz ; |
| Led type | SMD5630, SMD2835 |
| Led chip | Samsung LED, Epistar LED; |
| Color temp | 2800-3500k(WW); 4000-4500k(NW); 6000-6500k(CW); |
| Shell color | White |
| Efficiency | ≥90%,Color lndex:80, PF:>0.92,Class C for Harmonic Current Emition; |
| Lifetime | 50.000hours; |
| Lumin Drop | 1,000HRS UNDER 2%,10,000HRS UNDER 10%, 40,000HRS UNDER 30%,While Average Using under,12 hours per day; |
| Certificate | CE, LVD, EMC, ROHS,PSE |
| Model NO. | Series | LED | Dimension | Cutout Size | Watt |
| TPG-D301 | 3inch | Samsung LED
SMD 5630
Epistar 2835 SMD LED | D125mm*H60mm | φ90mm | 6W |
| TPG-D401 | 4inch | D140mm*H80mm | φ120mm | 10W |
| TPG-D501 | 5inch | D180mm*H80mm | φ150mm | 12W/15W |
| TPG-D601 | 6inch | D190mm*H80mm | φ170mm | 15W/18W/20W |
| TPG-D801 | 8inch | D230mm*H88mm | φ200mm | 24W/25W/28W/30W |
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
