Outline Dimensions:
59.2 0X27.50X8.30mm
Digit Height:
0.8 Inch(20.3mm)
Emitting Color:
Single Color
Dp Number:
3PCS
Digit Number:
3 Digit
Chip Matrial:
4-Element
Tube Chip Color:
Single Color
Scanning Mode:
Static Scan
Display Type:
Segment LED Display
Application:
Meters and Instruments
Certification:
Reach
Display Function:
Numbers and Some Alphabets
Product Description

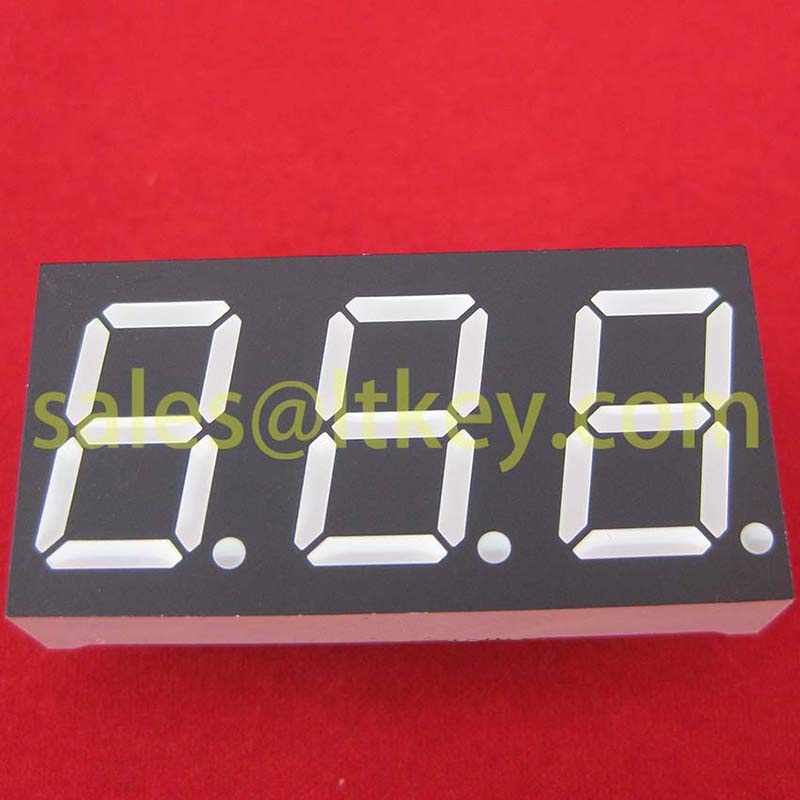

Features Ø 20.3 mm (0.8 inch) digit high Ø Excellent digit appearance Ø Wide viewing angle Ø Range of emitted colors Ø I.C. compatible Ø Low power consumption Ø White segment Ø RoHS compliant
Available options
Ø Alternative emitting luminosity: Standard or high brightness version Ø Alternative emitted color Ø Alternative segment color Ø Alternative font Ø Common Cathode is available Ø Cropped terminal pins
Selection Guide

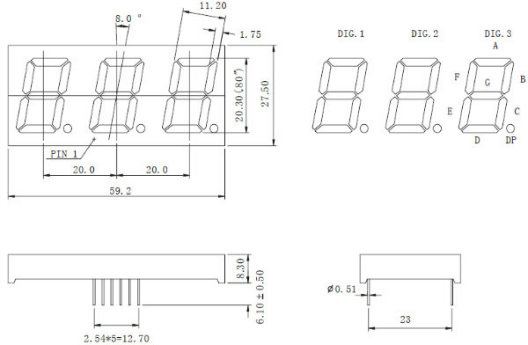

Three Digit 7 Segment LED Display, Digit Height:20.30mm(0.80 inch), External Dimensions: 59.2 0x27.50x8.30mm (L x W x H )
Part No.
Chip
IV@IF=20mA
Iv@IF=20mA

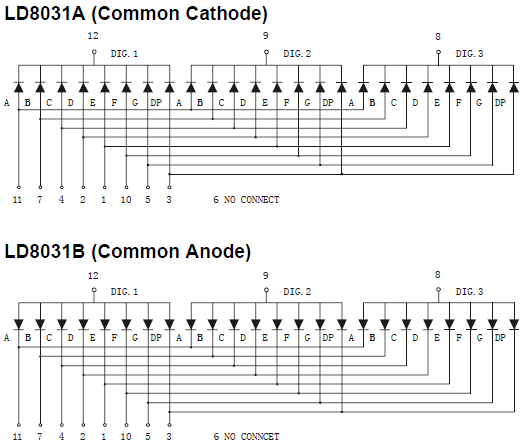

Common Cathode
Common Anode
Material
Color
WLD
One Seg
One DP
Min.
Typ.
Min.
Typ.
LD8031AR
LD8031BR
GaAlAs
Super Red
640
8
10
8
10
LD8031AD
LD8031BD
GaAlAs
Hi-Red
640
18
25
18
25
LD8031AO
LD8031BO
GaAsP
Orange
625
7
9
7
9
LD8031AY
LD8031BY
GaAsP
Yellow
588
8
10
8
10
LD8031AG
LD8031BG
GaP
Green
568
7
9
7
9
LD8031AUR
LD8031BUR
AlGaInP
Ultra Red
640
30
45
30
45
LD8031AUO
LD8031BUO
AlGaInP
Ultra Orange
625
45
60
45
60
LD8031AUA
LD8031BUA
AlGaInP
Ultra Amber
605
30
45
30
45
LD8031AUY
LD8031BUY
AlGaInP
Ultra Yellow
595
30
45
30
45
LD8031AUG
LD8031BUG
AlGaInP
Ultra Green
573
30
45
30
45
LD8031APG
LD8031BPG
InGaN
Pure Green
525
120
300
120
300
LD8031AUB
LD8031BUB
InGaN
Ultra Blue
470
30
45
30
45
LD8031AUW
LD8031BUW
SMD
Ultra White
\
100
120
100
120
Unit:
\
\
\
nm
mcd
mcd
mcd
mcd
