| Prod Model: |
PPL-M7R230 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Carton/Flight Case |
| Output: |
1000PCS Per Month |
| Stepless Frost: |
0%-100% Linear Change Fr |
| Lamp: |
Osram 7r |
| Strobe/Shutter: |
High Speed Shutter, 0-13 |
| Hs-Code: |
95054090 |
| Producting Area: |
Guangzhou China |
| Packing Dimensions: |
53.5 X 400 X 41cm |
| Net Weight: |
10.7kgs |
| Gross Weight: |
13kgs |
| Material: |
Aluminum |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Light Source: |
Osram Lamp |
| Emitting Color: |
14color+White |
| Control Channel: |
16/20CH |
| Strobe: |
Double Lens Strobe(0.5-9time/Second) |
| Control Mode: |
DMX512,Automatic,Master/Slave |
| Voltage: |
AC100-240V, 50/60Hz |
Product Description
Technical parameter:

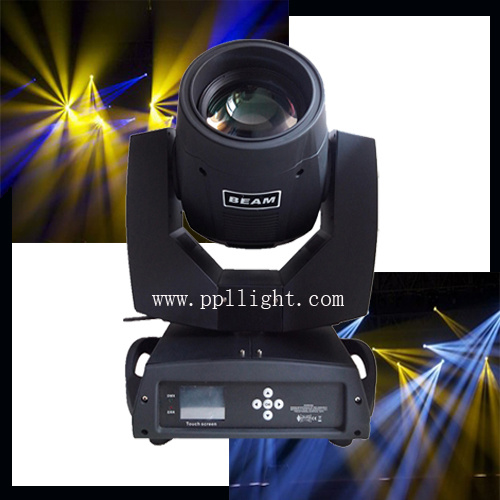

Item No.: M7R230
Power supply: AC100-240V, 50/60Hz
Ballast: Electromagnetic Ballast or Electronic Ballast
Power consumption: 300W
Packing dimensions: 53.5 X 400 X 41cm
Net weight: 10.7Kgs
Gross weight: 13Kgs
Features:
Lamp: Philips PLATINUM 7R
2 DMX Channels mode: 10/12 channels
Stand alone operation with Master/Slave function, sound activated via built in microphone.
Pan and tilt movement:
8 and 16 bit resolution
For smooth and precise motion
Movement: Pan: 360° /540° Optional, Tilt: 270°
Speed of pan/tilt movement adjustable
Scan position memory, auto reposition after unexpected movement
Colors: Basic color wheel with 12 dichroic mirrors, plus White, two direction rainbow effect
Static gobo: 14 static gobos plus open with different speed
Gobo shaking and gobo indexing
Prism and prism rotating: With 16 prism macros
Linear dimmer in precise speed from 0%-100%
Stepless frost: 0%-100% linear change frost
Strobe/shutter: High speed shutter, 0-13 Hz or random strobe
4 digit LED display
Display: Can be changed 180° Reverse to fit for different Installation position.
Auto-program: 8 pre-built programs can be selected
Software-upload by optional accessory via DMX line
| CHMODE | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| 16CH | color wheel | stop/strobe | Dimmer | Stastic Gobo Change | Prism insertion | Prism rotation | effect Movement | Frost | Focus | Pan |
| 20CH |
| 16CH | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| 20CH | Pan Fine | Tilt | Tilt Fine | function
(unused) | Reset | Lamp Control |
|
|
|
|
| Pan-Tilt Time | Color Time | Dimmer prism-forst time | gobo time |
Trade terms:
| Price Term | exw price |
| Payment terms | T/T,Paypal,Western union |
| Shipping Way | 1.By express(DHL,Fedex,Ups,EMS) |
| 2.By air |
| 3.By sea |
| Sample time | 1-3 workdays |
| Production time | general 5-10 days,depend on your order quantity |
| Packing | 1.Standard Carton |
| 2.Flightcase |
| Warranty | 1 years |
| After-Sell server | 1.If there is some problems with the product,please describe it and sent thenecessary picture or video to us for analyzing. |
| 2.Then we will guide you how to fix it and provide free accessories if needed. |
| 3.1year quality guarantee at least, and we will provide free parts for replacement if any problem belong to us during the period(Delivery cost paid by customer);1 year later, we can provide spare parts for replacement based on certain charge. |
