| Prod Model: |
PPL-M7R230 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Packing Size: |
53X40X41cm |
| N/G.W.: |
16/17kgs |
| Lens: |
3D Glass Optical Lense |
| Feature: |
6 Surface Anti-Reflective Coated Lense |
| Lamp Brand: |
Osram 7r Lamp |
| Effect: |
Perfect Beam Light, Gobos, 8-Facet Prism |
| Function: |
Prism, Focus, Dimmer , Strobe |
| Using Place: |
Stage/ Theatre/KTV |
| Emitting Color: |
Changeable |
| Strobe: |
Electronic Strobe |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Light Source: |
Osram 7r |
| Material: |
PC Engineering Plastic |
| Control Channel: |
16/20CH |
| Control Mode: |
DMX 512 Control |
| Voltage: |
90-245V |
Product Description
Feature:
1. OSRAM 7R 230W lamp
2. High preceision glass optical lens, 3-layer glass, 6 surface coasting. It make the output beam looks brighter
3.14 colors + 17 gobos
4. Rotation 8-facet prism
Specification:

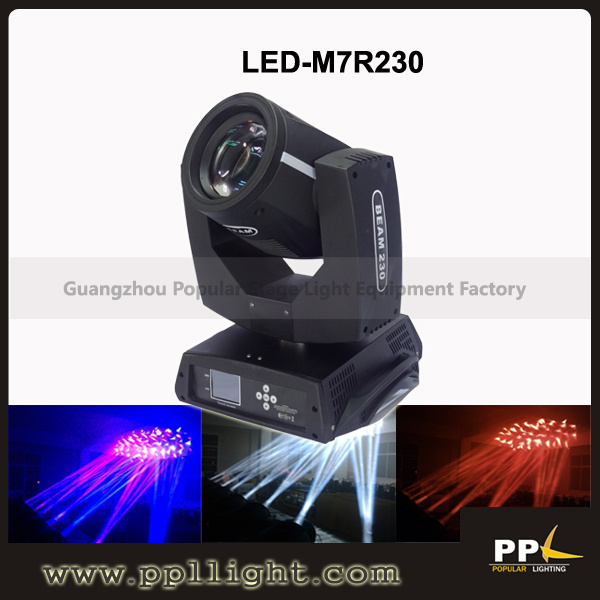

Products Name: 230W Moving head light
Item No.: PPL- M7R230
Power supply: AC100-240V, 50/60Hz
Ballast: Electromagnetic Ballast or Electronic Ballast
Power consumption: 230W
Packing dimensions: 53.5 X 400 X 41cm
N/G Weight: 16 / 17kgs
Features
Lamp: 230W Osram
2 DMX Channels mode: 16/20 channels
Stand alone operation with Master/Slave function, sound activated via built in microphone.
Pan and tilt movement:
8 and 16 bit resolution
For smooth and precise motion
Movement: Pan: 360° /540° Optional, Tilt: 270°
Speed of pan/tilt movement adjustable
Scan position memory, auto reposition after unexpected movement
Colors: Basic color wheel with 12 dichroic mirrors, plus
White, two direction rainbow effect
Static gobo: 14 static gobos plus open with different speed
Gobo shaking and gobo indexing
Prism and prism rotating: With 16 prism macros
Linear dimmer in precise speed from 0%-100%
Stepless frost: 0%-100% linear change frost
Strobe/shutter: High speed shutter, 0-13 Hz or random strobe
Touch Screen LCD
Display: Can be changed 180° Reverse to fit for different
Installation position.
Auto-program: 8 pre-built programs can be selected
Software-upload by optional accessory via DMX line.
DMX Channel:
| CH MODE | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| 16CH | COLOUR WHEEL | STOP/ STROBE | DIMMER | STATIC GOBO CHANGE | PRISM INSERTION | PRISM ROTATION | EFFECTS MOVEMENT | FROST | FOCUS | PAN | PAN FINE | TILT | TILT FINE | FUNCTION (UNUSED) | RESET | LAMP CONTROL |
|
|
|
|
| 20CH | PAN-TILT TIME | COLOUR TIME | DIMMER-PRISM-FROST TIME | GOBO TIME
|
