| Prod Model: |
(LED-M0712) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Osram LEDs: |
Big Lense |
| Fast Lock: |
Back Light |
| Light Source: |
LED |
| Strobe: |
Electronic Strobe |
| IP Rating: |
IP20 |
| Control Channel: |
9/12/16 . |
| Control Mode: |
DMX 512, Master/Slave, Auto Run.Stand Alone, Sound |
| Voltage: |
AC90~245V, 50~60Hz. |

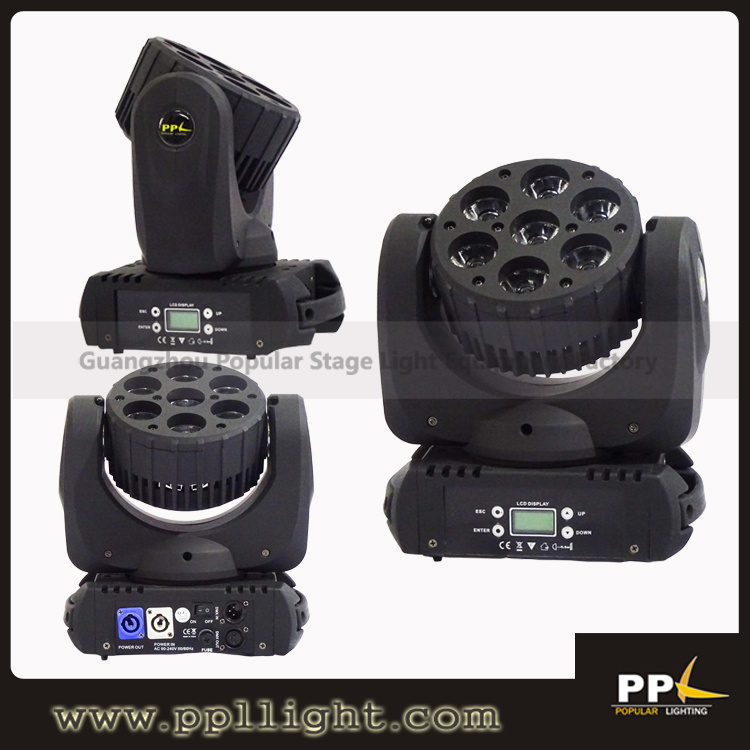

Product Description
Feature:

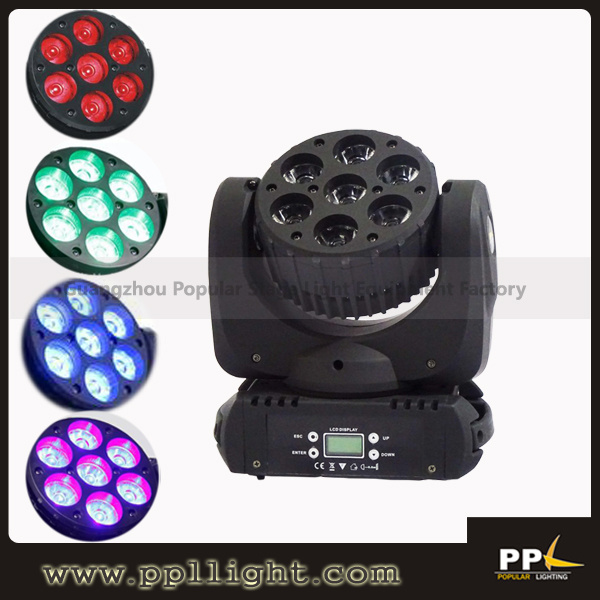

1. 7pcs High brightness OSRAM 4IN1 LEDs, RGBW infinite mixture system
2. High light output 840lux @ 7m
3. Compact and lightweight, easy to control
Specification:
Input Voltage: AC90-260V 50/60Hz
LED Quantities: 7PCS OSRAM 12W 4-IN-1 LEDs (R, G, B, W)
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 15 DMX channels
Power Consumption: 120W
60,000 hours life span for LEDs and low power consumption
Intelligent temperature sensor for LEDs(over heat protection)
High efficiency 8 degree optic lens
Color range with 16.7 millions additive RGBW colors
High light output as 840LUX@ 7M at full
0-100% smooth linear dimmer with flicker free
20t/s strobe effect with variable speed
Pre-programmed random strobe and pulse effects
15 DMX Channels
Built-in programs with macro effects
DMX512, master-slave and sound activated controllable or auto operation
High definition blue TFT LCD display
Quiet, smooth and fast PAN/TILT movement
Low noise and efficient FAN cooling system
540° PAN and 250° TILT movement
Scan position memory, auto reposition after unexpected movement
Compact size with only 4.9KG body and 310mm in height
IEC power connector
45ºC max ambient temperature
IP20 protection rating
3-Pin XLR DMX input/output
Dimensions: 152(D)*265(W)*310(H)mm
Packing Dimensions:260(D)*320(W)*335(H)mm
Net Weight: 4.9kg
Gross Weight: 7kg
| CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| FUNCTION 15 | Pan | Tilt | Pan Fine | Tilt Fine | Dimmer | Strobe | Red | Green | Blue | White | Colors | Macros | Macros
Speed | PAN/TILT
Motor Speed | Reset &
sound control |
1 ) with fast-lock, easy to operate the lights; Esp for lots of quantities.
2 ) with back light, after 10s, the screen light will be off, this function is highly required in some Europe countries;
3) with high power consumption, with real Osram LEDs, with a strong beam effect, splendid effect.

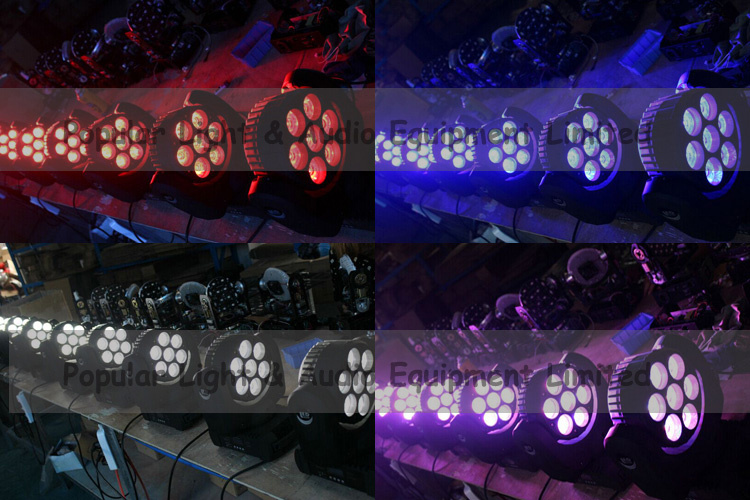

Product Show:
