Prod Model: |
SOL-6W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Solar Panel Max Power: |
18V 20W |
Battery Type: |
Solar Energy Battery 12V/6ah |
LED Chip Brand: |
Epistar From Taiwan with High Brightness |
Lumen(Lm): |
600-660lm |
Life Time: |
50000 Hours |
Lamps Material Of Main: |
Aluminium Alloy |
Charge Time: |
6 Hours(by Sun) |
Certificate: |
CE/RoHS/IP65 |
Product/Packing Size: |
528.5*325*90mm/560*385*140mm |
Quantity/Carton: |
1 Sets/Carton |
Light Source: |
LED Lamp |
Lamp Body Material: |
Aluminum Alloy |
Light Type: |
Solar |
Color Temperature: |
Warm White |
Technics: |
Electroplating |
Illumination Time: |
10h |
Cell Type: |
Ni-MH Battery |
Charging Time (',H): |
6 |
Usage: |
Beach |
IP Rating: |
IP65 |
Certification: |
RoHS |
Voltage: |
12/24V |
Power: |
6W |
Product Description

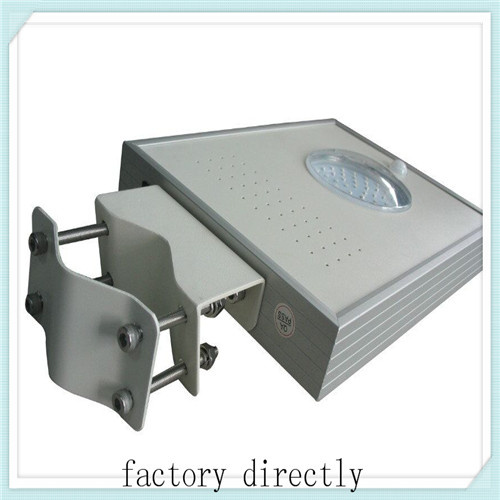

6W All in One Solar LED Street Light for Outside/LED Garden Light/LED Street Light/ LED Road Light
Company briefly introduce:
Bayond Light Co., Ltd manufacture LED modules, LED solar light outdoor lighting for LED Advertising Signage Illumination, as we believe it's better to do a few things well. With six production lines boasting SMT machines from Japan, we make to 150,000 units monthly-all of which are CE- and RoHS- marked. Our lead times are as fast as five days. Orders are typically filled in 20-30 days.
Our strict quality asurance program enables us to carry out all procedures, including development, purchasing, production, packing and distribution in the most efficient manner possible. Your order will be overseen by our 10 diligent QC professionals who boast an average of eight years' experience.
Our product range includes LED module, LED street light LED transformer and controller.
We hope there for customers with a powerful long-term cooperation and common efforts, to give them the best policy to help them to occupy more market share, so that they become bigger and stronger, this is our ultimate goal.
Specifications:
solar power street light (6W) | Model: SOL-6W |
Solar panel | Max power | 18V9W (high efficiency monocrystalline silicon) |
Life time | 25 years |
Battery | Type | lithium battery(6.4V 20AH) |
Life time | 5 years |
LED Lamp (with sensor) | Max power | 12V 6W |
Led chip brand | Epistar with high brightness |
Lumen (LM) | 600-660lm |
Life time | 50000hours |
Viewing Angle | 120° |
Charge time | By sun | 6 hours(with strong sunshine) |
Discharge time | Full power | more than 10 hours |
Saving power mode | more than 20 hours |
Working Temperature | Range( ºC ) | -30ºC~+70ºC |
Colour temperature | Range(k) | 6,000K-7500K(can customized ) |
Mounting height | Range (m) | 3-4m |
Space between light | Range (m) | 8-10m |
Lamps material of main | Aluminium alloy |
Certificate | CE / ROHS / IP65 |
Warranty period | 2years |
Packing & Weight | Product size | 540*320*55mm |
Product weight | 5.8kg |
Packing box | neutral |
Corton size | 560*570*410MM |
Q'ty/ctn | 4sets/ctn |
GW.for corton | 27kg |
Packs Containers | 20GP | 900pcs |
40GP | 1920pcs |
1. solar panel:High efficiency mono or poly crystalline silicon;
2. light source:High bright led, white, lifespan more than 50000hours;
3. controller:Intelligent microcomputer controller, 12v auto, time control & light control,with over-charging and discharging protections etc;
4. battery:Gelled valve-regulated sealed battery,maintenance free and deep cycle;
5. light pole:5-10 meters pole or 1-2m bracket ,made of quality steel, plastic coated after hot dipped galvanized, rust proof.Wind resistance ≥120km/h;
6. work temperature:Ambient temperature for -30--+60 degree c;
7. lighting time:Usually 4-6/6-8 hours lighting per night, 2-3 rainy or cloudy days;
8. voltage:Advisable dc12v for led 10w-20 w.
Shipping&package:
Destination | Method | Fee | Timing (changeable) | Custome Clearance |
door to door | EMS | charge by volumn weight | 10~30 days | Forwarder |
DHL/Fedex | 5~12 days |
UPS/TNT |
airport | by air | Yourself |
seaport | by sea | charge by volumn | 20~40 days |
For sample and trial order, we recommend to send by Express,
for large order, we recommend to send by air or by sea,
it depends on where are you from, also the total volumn and weight of the products.
We will get the most discounted price from our forwarder to help you save the cost.
1. We ship sample by DHL,UPS,Fedex,or TNT express company,depending one which is cheapest cost,item will be posted within 1-3 days after payment,delivery time about 3-10 days (excluding weekends and holidays) to :all countrines.
2. More than 20 sets all in one solar power street light,ocean shipping is the best choice and lowest cost,delivery time about 20-40 days.
Application Guidance:
1. Wall
2. Step
3. Road
4.Garden
5. Park
6. Square
7. Street
8. Pathway
How to install?
Fix the product with a right angle and make sure no shelter on the surface of solar panel.
How to use?
The product is off before delivery in order to avoid discharging during transportation. You can activate it by using the pin or related button or tearing off the film. This is depend on different item, the activate way may differ.
What to do with the rainy day or Cloudy day?
The outdoor solar light is waterproof. You don't need to worry about it. After fully charged, the capacity of battery can keep the LED working in several rainy/ cloudy days.
If you found the light brightness is down or total off, how to handle?
It prove the power of solar light battery is not enough to support normal lighting, so you need have 2-3 goods sunlight charged, especially in Winter season, the sunlight intensity is much below the standard sunlight (1000kw/m2), it may need more longer time to charge.
Why the charging efficiency is low in winter or cloudy day?
Generally the sunlight standard is 1000kw/m2, in the winter or cloudy day, the sunlight intensity are much lower than standard so the charging efficiency is lower accordingly.
Advantage:
The system configurations can be customized based on client's specific project requirement and weather condition.
The batteries are suggested to be placed in battery box and buried in a underground cement pit. In this way, it can avoid overhigh temperature due to sunshine exposure or too cold weather in Winter, wateproof and theftproof, easy for replacement in late period.
The pole patterns are standardized type, practical and economical, which can also be customized as per client's specific requirement.
FAQ:
1. How to choose the configuration?(take our Integrated solar powered street light for example)
At first, to evaluate the use area, understand its climatic conditions and sunlight conditions.
Where is your application? For highway lighting or non-road, non-road is usually parks or residential roads.
whether need some special requirements for brightness and installation ? What is the lighting range ?
2.How to choose the best suitable solar powered street light?(Below for your reference):
Installation height 7-10M: normally select WG-A30, WG-A40, WG-A50, WG-A60, LED power are 30W, 40W, 50W, 60W.characteristics are high brightness, high power, a wide range of lighting. ideal for school sports, docks, ports and other places or width of 15-25 meters of road.
Installation height 5-7M: normally select WG-A15, WG-A20, WG-A25, LED power are 15W, 20W, 25W.characteristics are brightness, medium power, lighting range is suitable for rural, residential, parks. schools and other sidewalk or road width of 10-15M.
Installation 3-5M height: normally select WG-A05, WG-A08, WG-A12, LED power are 5W, 8W, 12W.characteristics are low power, cost-effective.suited for rural roads, roadway, residential, garden,or road width of 6-10M.
3.How to install all in one solar powered street lihgt?
Installation is the easiest, just to lay the foundation of a straight bar, then it can be installed, usually two workers can complete the installation only with a wrench in 5 minutes,neither the use of heavy equipment or tools,nor technical support or engineer's guidance.
Choose us:
1. Provide professional person to communicate with you before the order.
2. Provide permanent magnet generator with advanced technology, exquisite workmanship, top design.
3. Provide strict quality check for each part, each process before export.
4. Provide optimum system solution based on each client's specific requirement and local location's weather condition.
5. Provide complete post-sale service, including installation, technical guide and training.
Terms and condition:
1. Price Term: EXW Yangzhou or FOB Shanghai based on project . The price includes solar panel, LED street lamp, controller, battery. The price does not include bracket. Shipping seaport: Shanghaior Ningbo Seaport. For CFR or CIF price, please specify which exact model you need and whether pole is needed, and tell us your order quantity so that we can calculate the local charges and sea freight.
2. MOQ: 10 sets. For less than 10 sets.
3. Payment: Typically 30% by T/T as down payment, balance by T/T or L/C before shipment. Other payment way can be negotiated.
4. Package: Export standard plywood case or carton packing suitable for tough handling and long-distance ocean transport.
5. Delivery: for 100 sets, goods can be ready for shipment within 20 working days.
