| Prod Model: |
HZ-TYN20WDC60W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CRI: |
80 |
| PF: |
0.9 |
| Cct: |
3000-6500k |
| Style: |
Countryside |
| Light Type: |
LED |
| Material: |
Aluminum Alloy |
| Technics: |
Painted Matte |
| IP Rating: |
IP65 |
| Warranty Period: |
3 Years |
| Voltage: |
85-265V |
| Certification: |
RoHS |
Product Description

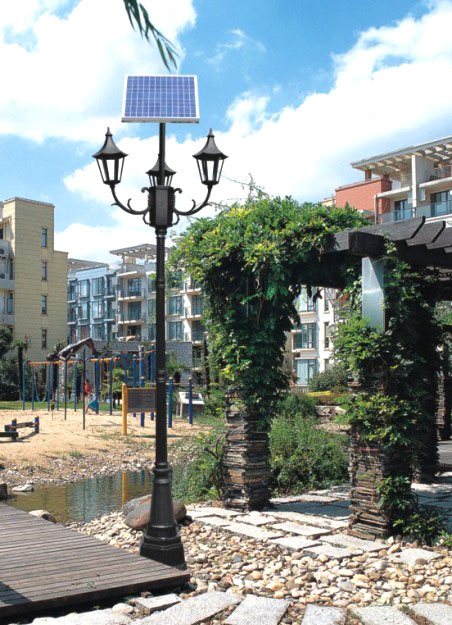

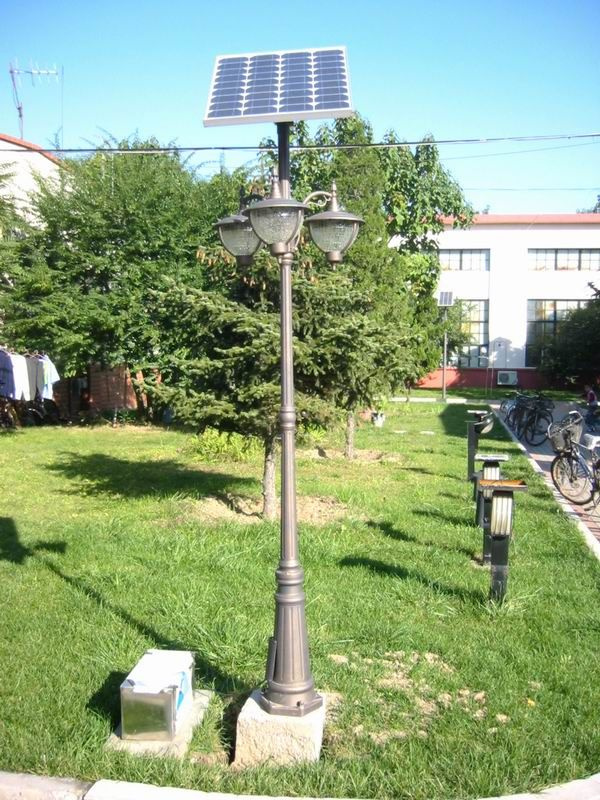

60W LED Solar Lights for Garden Lighting Specifications:
Product number: HZ-TYNTY60W
Component Part:
1. Head part-- 6W LED street light, 3pcs
2. Solar panel, 1pc
3. Battery, 1 pc
4. Controller, 1pc
5. Pole, 1pc
6. Wire
60W LED Solar Lights for Garden Lighting Advantages:
Superior thermal management.
Intelligent management of Power
Save energy cost.
Applications: Country road, commercial street, factory, Garden.
| 1. 6W LED street light | Voltage | 100-265V 50-60HZ | LED quantity | 18 pcs |
| Power | 6W | Color | white(5000-6000K) |
| IP | IP-65 | Lumen | 1800lm |
| LED source | Bridgelux | Emitting angle | 130*60 degree |
| Power supply | Meanwell | Warranty | 3 years |
| Pole | Φ50mm |
|
|
| Material | aluminium alloy |
|
|
| Product model | HZ-TY60W | Type | Monocrystalline silicon |
| Power | 60W | conversion efficiency | 17% |
| Voltage | 18V | open-circuit voltage | 22V |
| Size | 615*535*30mm | Warranty | 10 years |
| Installation dimension | 450*492, 4-Φ8 | Weight | 5.6KG |
| 3. Battery | Model | HZ-100AH |
| Free of maintanance |
| Voltage | 12V | Type | energy storage battery |
| Capacity | 100AH | Warranty | 3 years |
| Size | 484x171x241x241mm | weight | 30KG |
| Model | HZ-KZ12V10A | control mode | PWM (pulse width modulation) |
| Voltage | 12V | Warranty | 3 years |
| Power | 120W | Cut-out | 126 X 50mm |
| Size | 133 X 70mm |
|
|
| 5. Pole | Model | HZ-DG3.5m | Material | Q235 |
| Height | 3.5M | Lamp installation dimension | 50mm |
| Thickness | 3.5mm | Warranty | 10 years |
| Lamp to Ground height | 4M |
|
|
| 6. Wire | 2.5Square, 10m |
|
|
Hi-semicon manufacture product by using our leading-edge technological expertise in thermal management, optics and electronic circuitry, lenses and LEDs to improve our existing products, bringing further efficiencies through cost improvements and product design.
Hi-semicon technology focus on Unique application such as: Flicker-free, low CCT, High CRI, Dali lighting system, Intelligent microwave sensor, daylight harvesting and so on.
