DMX Signal:
3 Pin
Beam Angle:
0-3.8 Degree
Light Source:
Gas Discharge Bulb
Control Channel:
16CH
Strobe:
Combined Type Double Strobe
Control Mode:
Dmx Signal Control
IP Rating:
IP20
Certification:
RoHS
Voltage:
90V-240V
Product Description

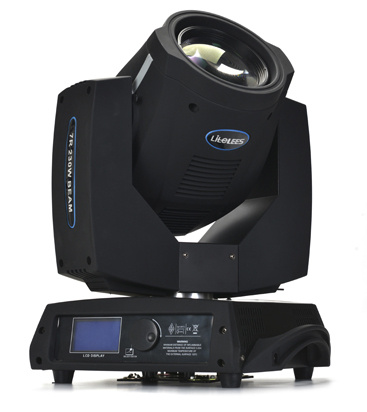

POWER SUPPLIE Input power: 110-240V 50/60 Hz LAMP SOURCE Discharge lamp with a short arc burner in a reflector system - Type: Optional YODN MSD Platinum R7 230W Osram Siruis HRI 230W - Output Lamp power: 200W/230W - Color temperature: 8, 500 K - Average life: 2, 000 h OPTICS 3-lens optical group combination Focus: Electronic Light output at 20 meters (65 feet): 59, 760 lux COLOR SYSTEM Interchangeable color wheel with 14 colors + open EFFECTS SECTION Interchangeable gobo wheel with 17 fixed gobos + open High speed shake effect 8-face rotating prism Frost filter Mechanical shutter and adjustable speed strobe effect Mechanical dimmer CONTROL AND PROGRAMMING 16/20 DMX 512 control channels Display: LED red/blue display or LCD display Pan/Tilt Resolution: 16 bit Movement control: Vectorial DMX signal connection: 3 PIN output BODY Aluminium structure with die-cast plastic cover. Two side handles for transportation. Device locking PAN and TILT mechanisms for transportation and maintenance. MOVING BODY Travel: - PAN = 540° - TILT = 250° ELECTRONICS Function reset from the lighting desk ON/OFF lamp control from the lighting desk "AUTOTEST" function from menu Electronic monitoring with status error SAFETY DEVICES Bipolar circuit breaker with thermal protection. Automatic break in power supply in case of overheating or failed operation of cooling system. Forced ventilation with axial fans. Hanging system: With fast-lock omega clamps (1/4 turn) on the base WEIGHT 17.5 Kg
CHANNEL
STANDARD(16CH)
VECTOR(20CH)
1
Color Wheel
Color Wheel
2
Strobe/Stop
Strobe/Stop
3
Dimmer
Dimmer
4
Static Gobos
Static Gobos
5
Prism Insertion
Prism Insertion
6
Prism Rotation
Prism Rotation
7
Function
Function
8
Frost
Frost
9
Focus
Focus
10
Pan
Pan
11
Pan Fine
Pan Fine
12
Tilt
Tilt
13
Tilt Fine
Tilt Fine
14
Pan/Tilt Speed
Pan/Tilt Speed
15
Reset
Reset
16
Lamp Control
Lamp Control
17
Pan/Tilt Time
18
Color Time
19
Beam Time
20
Gobo Time

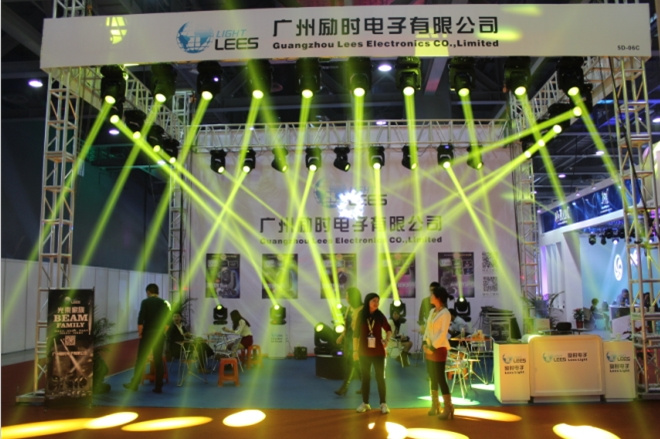

Guangzhou Lees Electronics Co., Limited professional in stage lighting electronic and equipment, especially in beam moving head lighting. Have a great team of programming-makers, superb technicists, experienced salers, and advanced stuffs.
After one year preparation, we researched one new moving head lighting. 300W beam moving head light. In the beginning of beam light hot year, Many customers all over the world are looking for beam light factory in China. Especially crazy for similar products with Claypaky, Martin, Robe brand.
Continuing the exploration and innovation, Lees launched the 5R Sharpy Beam, 2R Beam, 15R Beam and 15R Spot&beam in succession.
Looking forward to your contact. And Let's talk about beam light together!
