Body Color:
Black
Material:
Aluminum Alloy
Color Mixing:
RGB Color Mixing
DMX Channel:
8/20CH
Effect:
Wash, Backdrop Light
Function:
Each LED Can Be Controlled Individually
Sound Active:
Built-in Microphone Sound Controlled
Using Place:
Professional Stage, KTV, Disco, Bar
N.W.:
3.5kgs
Packing Size:
62*15*16cm
Application:
etc.
IP Rating:
IP20
Kind:
Matrix Light
Emitting Color:
RGB Color Mixing or Single White

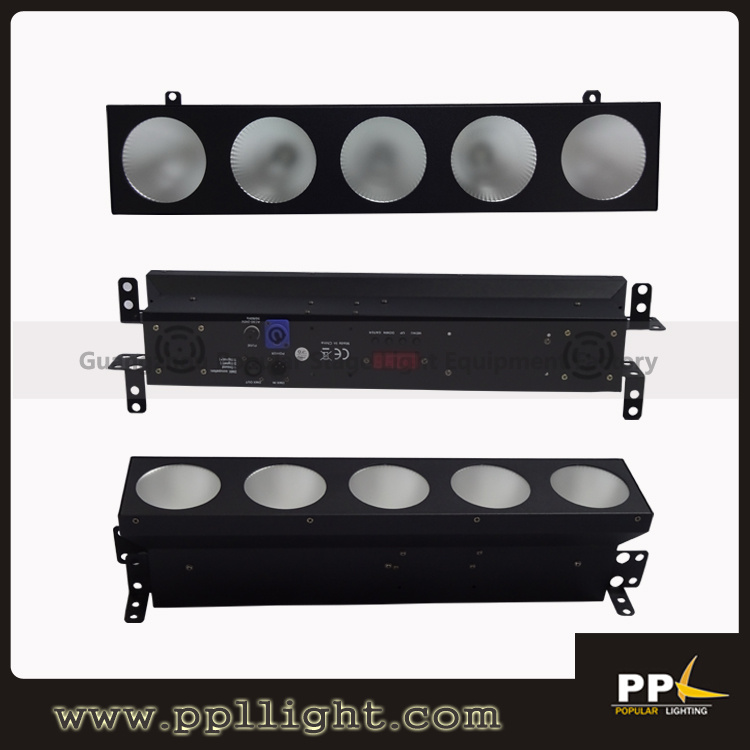

Product Description
Advantage:

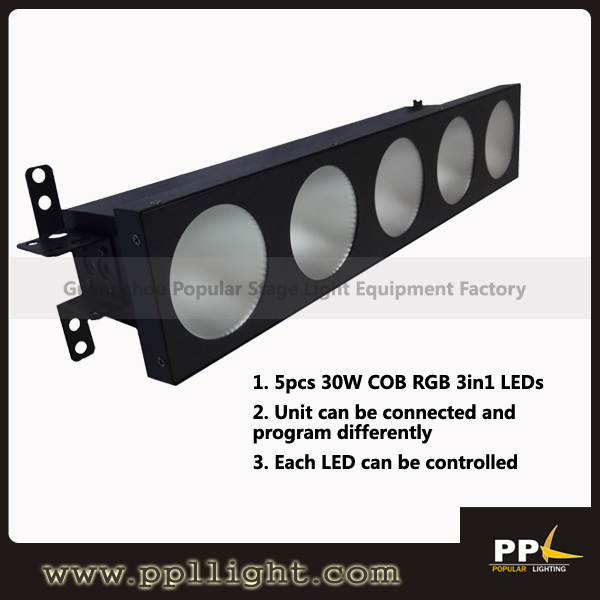

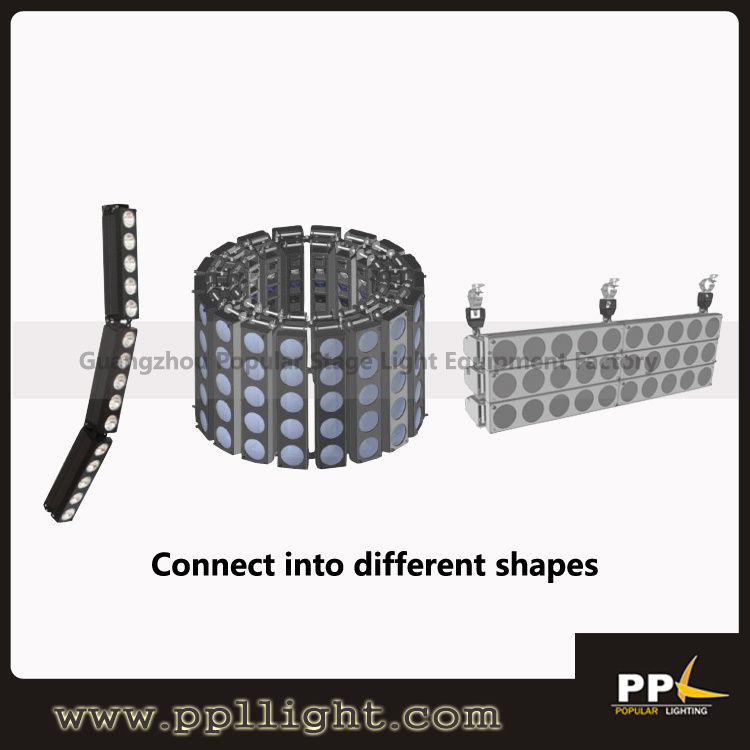

1. 5pcs 30W RGB 3in1 COB LEDs, High brightness, Uniform spot 2. Each LED Can be controlled individually 3. Unit lamp can be connected, like display, or other shapes
Technology Parameter: 1. Voltage: AC100-240V , 50/60Hz 2. Power: 150W 3. Light source: 5pcs 30w COB RGB 3in1 LEDs 4. DMX 8/20 channels selectable 5. Each LED can be controlled individually 6. Sound controlled via built-in microphone 7. Adjustable sound sensitivity 8. Function: Color mix, automatic color change, built-in program and strobe effect with adjustable speed, dimmer, master/slave 9. LED display, easy to control 10. Full DMX512 control 11. Unit can be connected and program differently. 12. With Safety loop 13. Package size: 62X15X16CM 14. Weight: 3.5kg
DMX Channel:
DMX CH
Function
remark
CH1
Dimmer
WDimming,linear dimmingfromdark to bright
CH2
Strobe
W Strobe,Speed,from slow to fast
CH3
Function
0--20:DMX 7CH;21--70:Color Jump;71--120:Color Fade;121--170:Colorpulse;171--220:Running;221--240:Sound control 1;241--255:Sound control 2
CH4
Speed
Speed Function from slow to fast
CH5
R Dimming
R Dimming, linear dimming from dark to bright
CH6
G dimming
G Dimming, linear dimming from dark to bright
CH7
B dimming
B Dimming, linear dimming from dark to bright
CH8
DMX512 ID
ID 1 5--9 ID 2 10--14 ID 3 15--19 ID 4 20--24 ........ ......... ID 51 255 under sameaddress code, single-control lighting up to 50 Maximum
Product Show:
