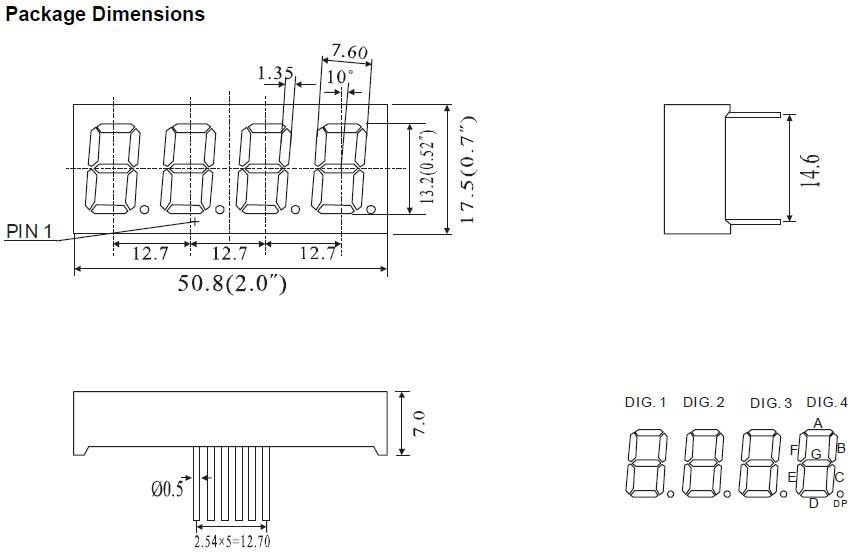

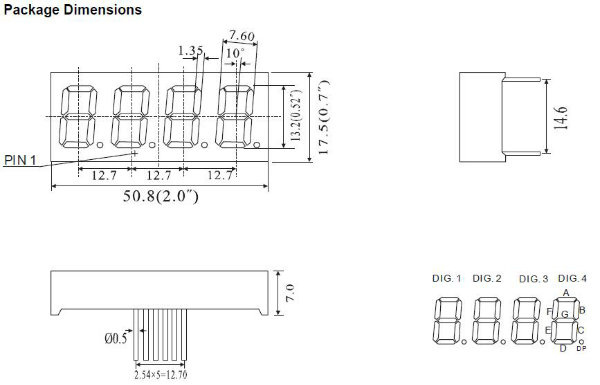

Outline Dimensions:
50.80X17.50X7.00mm
Digit Height:
0.52 Inch(13.2mm)
Emitting Color:
Single Color
Dp Number:
4PCS
Digit Number:
4 Digits
Chip Matrial:
4-Element
Tube Chip Color:
Single Color
Scanning Mode:
Static Scan
Display Type:
Segment LED Display
Application:
Meters and Instruments
Certification:
Reach
Display Function:
Numbers and Some Alphabets
Product Description
Features Ø 13.2mm (0.52 inch) digit high Ø Excellent digit appearance Ø Wide viewing angle Ø Range of emitted colors Ø I.C. compatible Ø Low power consumption Ø White segment Ø RoHS compliant
Available options
Ø Alternative emitting luminosity: Standard or high brightness version Ø Alternative emitted color Ø Alternative segment color Ø Alternative font Ø Common Cathode is available Ø Cropped terminal pins
Selection Guide
Four Digit 7 Segment LED Display, Digit Height:13.20mm(0.52 inch), External Dimensions: 50.80x17.50x7.00mm (L x W x H)
Part No.
Chip
IV@IF=20mA
Iv@IF=20mA

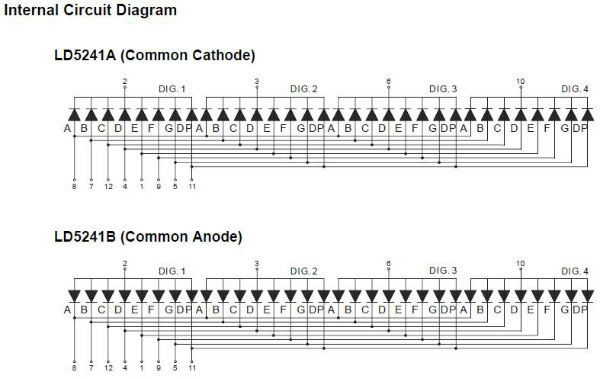

Common Cathode
Common Anode
Material
Color
WLD
One Seg
One DP
Min.
Typ.
Min.
Typ.
LD5241AR
LD5241BR
GaAlAs
Super Red
640
8
10
8
10
LD5241AD
LD5241BD
GaAlAs
Hi-Red
640
18
25
18
25
LD5241AO
LD5241BO
GaAsP
Orange
625
7
9
7
9
LD5241AY
LD5241BY
GaAsP
Yellow
588
8
10
8
10
LD5241AG
LD5241BG
GaP
Green
568
7
9
7
9
LD5241AUR
LD5241BUR
AlGaInP
Ultra Red
640
30
45
30
45
LD5241AUO
LD5241BUO
AlGaInP
Ultra Orange
625
45
60
45
60
LD5241AUA
LD5241BUA
AlGaInP
Ultra Amber
605
30
45
30
45
LD5241AUY
LD5241BUY
AlGaInP
Ultra Yellow
595
30
45
30
45
LD5241AUG
LD5241BUG
AlGaInP
Ultra Green
573
30
45
30
45
LD5241APG
LD5241BPG
InGaN
Pure Green
525
120
300
120
300
LD5241AUB
LD5241BUB
InGaN
Ultra Blue
470
30
45
30
45
LD5241AUW
LD5241BUW
InGaN
Ultra White
\
100
120
100
120
Unit:
\
\
\
nm
mcd
mcd
mcd
mcd
How we produce this 0.52 inch 4 digits 7 Segment LED Display? Factory view:
