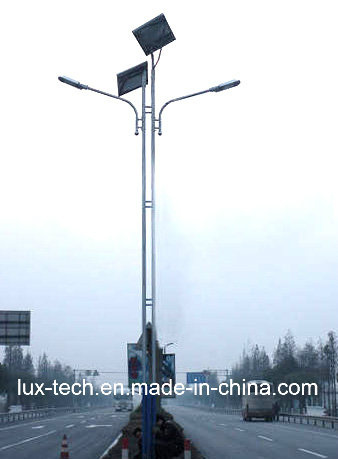

50W Double Arm LED Solar Light
Price: |
US $ 1140-1150/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Set |
Pay Type: |
L/C,T/T,Western Union |
Brief Specification for 50W double arm Solar LED Street Light with 8m pole, designed based on average solar radiation condition 4.5KWH, Lighting hours: 10 Hrs/Day and 3 rainy days for backup. Configuration: 50W double arm solar LED street light | 50W/24V LED lamp *2 |
360W/24V solar panel(180W/24V *2) |
10A/24V charge controller *2 |
200AH/24V GEL battery(200AH/12V *2) |
200/24 type underground battery box |
8m galvanized pole with arm and brackets. |
Detailed technical parameter:Detailed technical parameter for 50W double arm solar LED street light |
Working Time:10 hours/day, 3 rainy or cloudy dasy backup |
Component Name | Technical Parameter for components |
50W/24V LED lamp *2 | LED Power: | 50W |
Power Voltage: | 24VDC |
Total Lums: | 5800lm |
Color Temperature: | 6500K |
Illumination: | 8M≥30Lux |
LED Quantity: | 1W*50PCS |
Luminous efficiency: | 140~150Lm/W |
CRI: | >80 |
IP Protection: | IP65 |
Illumination Area: | 24*10M |
LEDs chip: | BridgeLux from USA |
Light transmittance: | ≥90% |
Size: | 520*220*60MM |
Weight: | 5.5Kgs |
180W/24V Solar panel *2 | Nominal Power(W): | 180W/24V |
Type of cell: | Mono or Poly |
Encapsulation: | Glass/EVA/Cells/EVA/TPT |
Cells efficiency: | 17.88% |
Maximum power(W): | 183.5W |
Voltage at max power(VMP): | 35.38V |
Current at max power(IMP): | 5.09A |
Open circuit voltage(VOC): | 43.21V |
Short circuit current(ISC): | 5.95A |
Dimension(MM): | 1330*992*35MM |
Weight(KGS): | 15.6KGS |
10A/24V charge controller *2 | Standard power: | 10A/24V |
Rated voltage(VDC): | 24V |
Rated current(A): | 10A |
Charge recommended max. current(A): | 10A |
The biggest open-circuit voltage(V): | 50V |
Charge(V) | Protection: | 28.8±0.2 |
Floating charge: | 26.4~27.2 |
Restore: | 26.4±0.2 |
Temperature compensation: | -26.4mV/ºC |
Low voltage(V) | Disconnecct: | 21.6±0.2 |
Restore: | 26.4±0.2 |
Over voltage(V) | Cut off: | 35±0.2 |
Restore: | 23±0.2 |
Current without load (mA): | <10MA |
Application ambient temperature: | -20ºC~+70ºC |
IP Protect: | IP67 |
Protect function: 1. Battery reverse connection protection 2. Solar panel reverse polarity connection protection 3. Over load and short circuit protection 4. Back flow from battery to solar module protection 5. Battery open circuit protection 6. Lighting surge protection(in case necessary) 7. Over-charging and over-discharging protection 8. LED display 9. Thunder strike protection; 10. Time control and light control. |
200AH/24V GEL battery(200AH/12V *2) | Nominal Voltage(V): | 12V |
Capacity(10HR,25ºC): | 200AH |
Dimension | Length(MM) | 522MM |
Width(MM) | 240MM |
Height(MM) | 220MM |
Total Height(MM) | 245MM |
Capacity 25ºC (77ºF) To 1.70V/Cell | 20 hr rate: | 202AH |
10 hr rate: | 198AH |
5 hr rate: | 158AH |
1 hr rate: | 120AH |
Weight(KGS): | 55.0KGS |
200 Type battery box | Material: | PP(200/24) |
8M glavanized pole(with double 1.2m arms and brackets) | Standard height: | 8M |
Material: | Q235 |
Top diameter(MM): | 76MM |
Bottom diameter(MM): | 165MM |
Thickness(MM): | 3.5MM |
Baseplate(MM): | 280*280*14MM |
Anchor bolts(MM): | 4*M20*700MM |
Hot dip galvanized thickness not less than 80um |

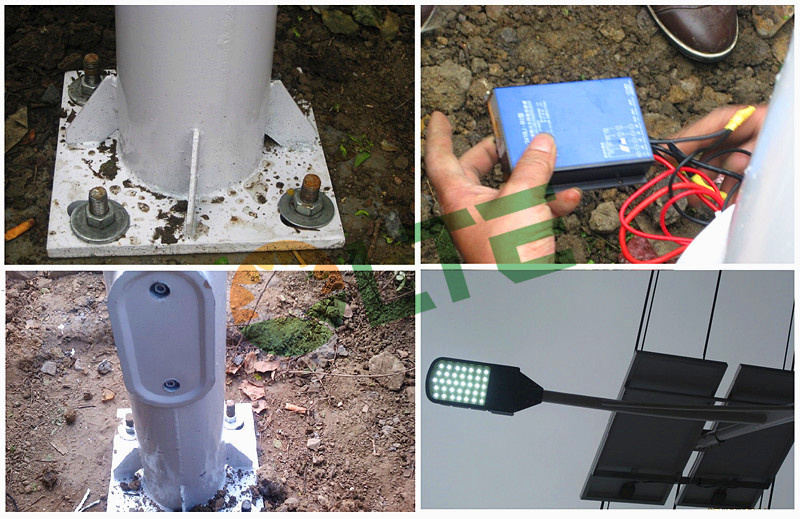

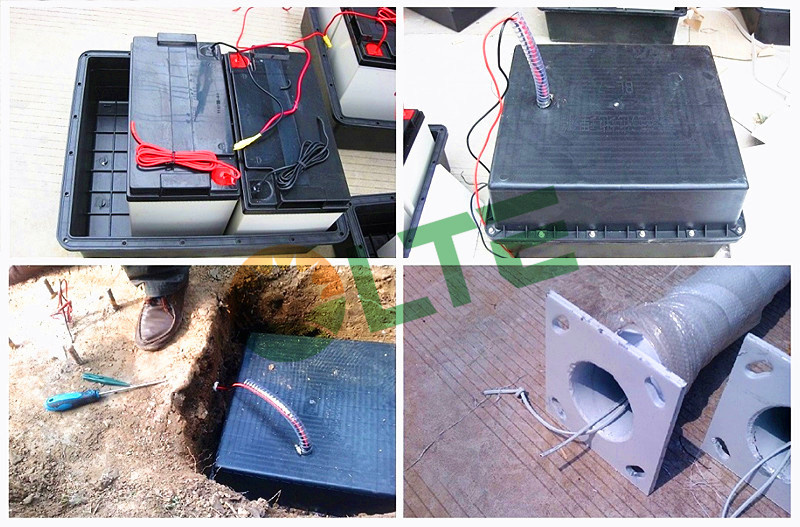

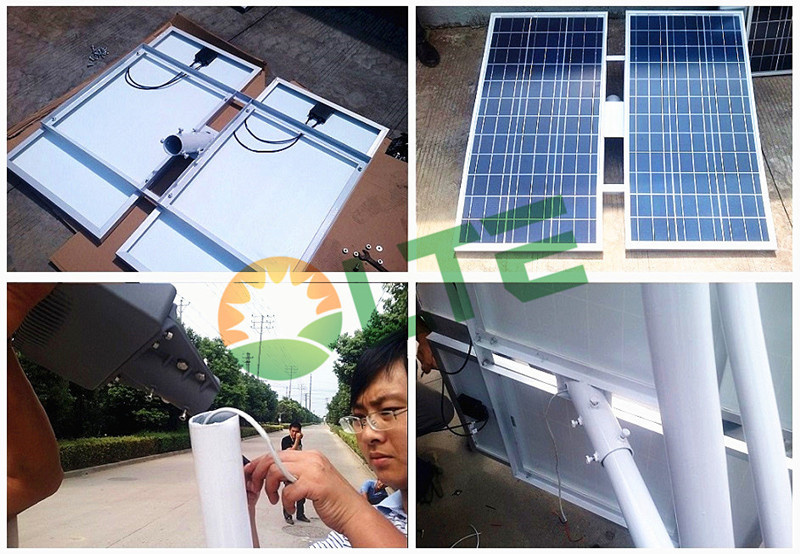

Installation pictures:
Working principle:1. LED solar street light relies on solar energy, which is clean, endless and environment-friendly. 2. The system is mainly composed of solar panel, light source, controller and free-maintenance battery.
3. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloud condition, the battery shall supply power for normal lighting. 4. The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action.How to choose models from LTE-Solar?
First:
1).the power of your required LED light?
2).the height of the pole?
3).how many hours/night the light can work?
Second: If you have no idea on the above question, please inform us below:
1). What's the width of road?
2). What's your request on the power of the light source?
The Third:
Please choose your favorite model from our website or the catalogue.
Prod Model: |
LTE-SSL-046 |
Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
Working Mode: |
Turn on and off Automaticly |
Maintenance: |
Free-Maintenance |
Light Source: |
LED Lamp |
Lamp Body Material: |
Aluminum |
Light Type: |
Solar |
Color Temperature: |
Cool White |
Technics: |
Hand-woven |
Illumination Time: |
6h |
Charging Time (',H): |
12 |
Usage: |
Factory |
IP Rating: |
IP65 |
Certification: |
RoHS |
Voltage: |
12/24V |
With Light Source: |
With Light Source |
Power: |
50W *2 |
Cell Type: |
Gel Battery |
With the fast development of solar energy industry in past years, costs of solar products is
Declining rapidly, which makes solar energy the most competitive energy with good features like clean, unlimited and economical.
LTE-Solar dedicates to prompt solar energy all overthe world, so that we could breathe fresh air and see blue sky everywhere.
LTE-Solar was established in 2008, our company specializes in the R&D (research &development), manufacturing and sales of Solar street light, Solar garden light and solar lawn light. LTE-Solar has always been enthusiastic, bursting with innovative ideas and intelligent solutions. We are providing different kinds of solar lighting products, such as common solar street light and AIO series solar street light.
LTE-Solar regards high quality and innovation as the most important value of the company. We
Always insist on the two principles which high product quality and perfect service to create benefits for our clients. Meanwhile, based on our professional technical strength and years of experience, we are providing integrated solutions from designing to installing.
In the long term, our customers not only make profit from a reliable return, but also make an important contribution to preserve the ecological environment by a green supply power mode.
