Color:
W/Ww/R/G/B/Y/RGB
Life:
50,000h
Emitting Color:
Red, Green, Blue, Cool White, Warm White,RGB
Usage:
Garden, Plaza, Lawn, Park,Square
Diffuser:
Tempered Glass
LED Chips:
Edison
Style:
European
Color Temperature:
Pure White
Lamp Body Material:
Aluminum
Lighting Area:
3-5m^2
Power:
≤5W
Technics:
Drawbench
Warranty:
2 YEARS
IP Rating:
IP67
Certification:
RoHS
Voltage:
12V
Light Source:
With Light Source
Product Description

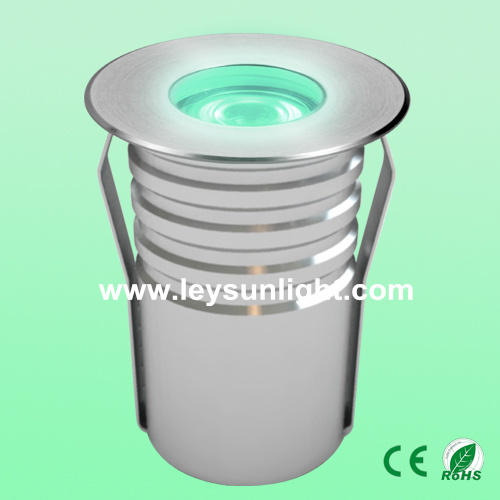

Recessed IP67 led garden path light fitting Product description: Product name: LED Path Light Product model: LS-DMD24 Input voltage: 12/24VDC Power: 1W or 3W Color: Red, Green, Blue, Cool white, Daylight white, Warm white, RGB(3in1) LED Qty: 1pc 1W or 1pc 3W high power LED Beam angle: 15/30/45/60 DEG Dimension: D50*68mm IP Rate: IP67 Housing: 12" die-casting aluminum RAL9007 grey power coated, T=60-80μm Adhesion of ISO class 1/ASTM class 4B Front cover: 304# stainless steel (316# is available) Lens: optical lens, efficiency≥85% Glass: step tempered glass T=12mm Loading capacity: exert force area of ?10=1330kgs Waterproof seal: molding shaped double silicone seal Brass cable: H05RN-F 2*1.0 for 2 wires; H05RR-F 4*0.75 for 4 wires Standard cable length: 60cm (any length is available) Mounting sleeve: ABS plastic Net weight: 330g Operating temperature: -20- +45 DEG Standard: CE certification and Rosh compliance

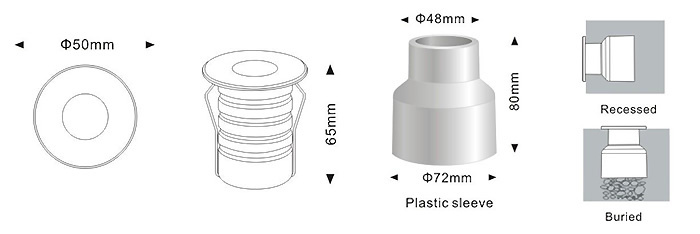

Black and white mounting sleeve optional: Dimension installation drawing for LED underground deck light: Features: 1. Energy-saving 2. Environment protection 3. High brightness 4. Anti-shock, anti-vibration 5. Purity color and more than 16,770,000 kinds of color output 6. Long lifespan, up to 50,000 hours 7. Easy to install and operate 8. Stainless steel panel
Applications: LED step light is specially designed to be applied in wall, steps,courtyard, stages, recessed wall, lawns, parks, parking lots and gardens and it can be installed in pavement, baseboards, etc. It is not suitable for use underwater.
