| Price: | US $ 1200-2000/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | P5-480x480mm led panel |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: | 480X480mm |
| Cabinet Material: | Die-Cast Aluminum |
| Module Size: | 240X240mm |
| Module Resolution: | 48X48dots |
| Tube Chip Color: | Full Color |
| Display Function: | Video Display |
| Pixel Pitch: | 5mm |
| Pixel Configuration: | 1R,1G,1B |
| Pixel Density: | 40,000 dots / m² |
| Scanning Mode: | 1/16 Scan |
| Display Type: | LED Video Display |
| Application: | Shopping Guide |
| Certification: | FCC |
| System Operating Platform: | Win XP,Win 2000,Win7/8/10 |
| IP Rating: | IP31 |

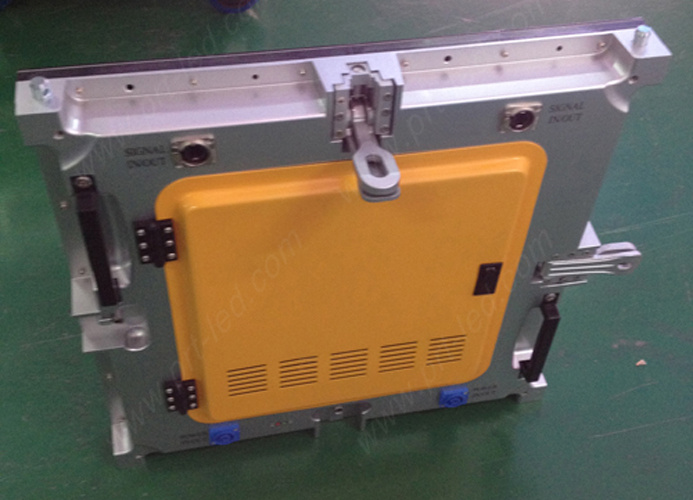

Slim Pixel pitch 5mm rental led display screem with die-casting aluminum panel size of 480x480mm for indoor rental use or permanent fixed install, with high resolution, high contrast ratio and good display performance
1. Die-cast Aluminum material,keep strong configuration and good heat dissipation
2. Small panel size of 480×480mm and with thickness of 60mm only
3. Packed with flight case,easy to move and transportation,better for rental use
4. With fast locks,easy to install and dismantle,save much time and labour cost
5. Seamless splicing,wide view angle, not color change from different ange, good performance
6. This cabinet size also suit to Indoor led display P3,P3.75 and P4
Please see more pictures for your reference
| Indoor Rental full Color LED Screen Specification | |||||||
| Pixel pitch | 3mm | 3.75mm | 4mm | 4.8mm | 5mm | ||
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | ||
| LED component | SMD2121 black | SMD2121 black | SMD2121 black | SMD3528 | SMD3528 | ||
| Size of module | 240mm x 240mm | ||||||
| Resolution of module(Dots) | 80 x 80 | 64 x 64 | 60 x 60 | 50 x 50 | 48 x 48 | ||
| Size of cabinet | 480mm x 480mm x 60mm | ||||||
| Resolution of cabinet(Dots) | 160 x 160 | 128 x 128 | 120 x 120 | 100 x 100 | 96x 96 | ||
| Material of Cabinet | Die-casting Aluminum | ||||||
| Weight of Cabinet | 10.5KGS | 10.5KGS | 10.5KGS | 10KGS | 10KGS | ||
| Brightness | >1500cd/ | >1500cd/ | >1500cd/ | >1500cd/ | >1500cd/ | ||
| Density | 111111dots/ | 71111dots/ | 62500dots/ | 43402dots/ | 40000dots/ | ||
| Best viewing angle | 140 /140 | 140 /140 | 140 /140 | 140 /140 | 140 /140 | ||
| Best viewing distance | 3-50M | 3-50M | 3-50M | 4-60M | 4-60M | ||
| Maximum power consumption | 1200W/sq.m | 1200W/sq.m | 1200W/sq.m | 1000W/sq.m | 1000W/sq.m | ||
| Average power consumption | 640W/sq.m | 640W/sq.m | 640W/sq.m | 500W/sq.m | 500W/sq.m | ||
| Driving method | 1/16 scan | 1/16 scan | 1/15 scan | 1/10 scan | 1/16 scan | ||
| Control method | Synchronization | ||||||
| Gray scale | 65536 | ||||||
| Colors | 256*256*256 | ||||||
| Color temperature | 3200-9300k | ||||||
| Uniformity | 97% | ||||||
| Working voltage | AC220V/110V±10% | ||||||
| Working temperature | -20ºC~+50ºC±10% | ||||||
| Working humidity | 10% ~ 90% | ||||||
| MTBF | 10,000 hours | ||||||
| Frame frequence | 50/60Hz | ||||||
| Refresh frequence | >1920Hz | ||||||
| IP grade | IP31 | ||||||
| Life Span | 100,000 hours | ||||||
| Data transafer method | RJ45 | ||||||
| Pratical standard | CCC TUV-CE ETL etc. | ||||||
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;Single-mode optic fiber: 10KM | ||||||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | ||||||
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development | ||||||
