| Prod Model: |
LED 2009 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DMX Channel: |
3CH/6CH |
| Switch Power Supply: |
Built-in and Auto Switching |
| Control Panel: |
Digital 4 Characters Alphanumeric |
| Connector: |
3-Pinxlr (in and out) |
| Electronic Dimmer: |
1-100% Linear Dimmer |
| Electronic Strobe: |
1-30 Flashes/Second |
| Cooling: |
Entire Casing as Heat Sink (No Fans) |
| Flicker Free: |
Refresh Rate >1000 Hz |
| Key Point: |
Temperature-Protected Easily |
| Usage: |
Theatres, Stage , Robust Housing |
| IP Rating: |
IP65 |
| Certification: |
SGS |
| Lifespan: |
50000 hours |
| Diffuser: |
Polycarbonate |
| Electric Current Type: |
AC |
| Beam Angle: |
6-120degree to Choose |
| Input Voltage: |
90-245VAC 50/60Hz |
| Emitting Color: |
RGBWA Full Color |

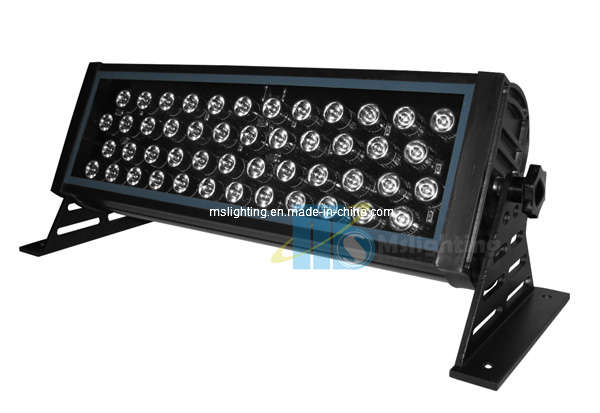

Product Description
MODEL: LED 2009: 36*1W/36*3W (12Red/ 12Green/ 12Blue)/(9Red/ 9Green/ 9Blue/ 9White(or Amber)
MODEL: LED 2009A: 48*1W/48*3W (16Red/16Green/ 16Blue)(12 Red/ 12Green/ 12Blue/ 12White(or Amber)
MODEL: LED 2009B: 72*1W (24Red/ 24Green/ 24Blue)/(18Red/ 18Green/ 18Blue/ 18White(or Amber)
MODEL: LED 2009C: 96*1W (32Red/ 32Green/ 32Blue)/(24Red/ 24Green/ 24Blue/ 24White(or Amber)
MODEL: LED 2009D 144*1W (48Red/ 48Green/ 48Blue)/(36Red/ 36Green/ 36Blue/ 36White(or Amber)
Control signal: DMX512
Power consumption: 45W/55W/155W/80W/105W/155W
Protection rating: IP 65
1) Input voltage: AC 90-130V/280V-240V/50-60Hz, auto change
2) Power: 140W
3) LED size: 1W/3W
4) DMX Channels: 6CH/3CH, 7CH/4CH
|
Housing Material |
Aluminum |
|
Housing Color |
Black/White |
|
Aperture Cover |
Aluminum |
|
Operating voltage |
90-130V AC / 176-254V AC |
|
Output voltage |
DC 24-36V |
|
Control Modes |
Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
|
Lamp Luminous Efficiency(lm/w): |
99% |
|
Certification: |
CE,EMC, LVD, RoHs |
|
LED Life Time |
80000-100,000 hours |
|
Beam Angle |
6-120degree to choose |
|
Power Consumption |
70W/200W |
|
Light Projecting Distance |
5-200M |
|
IP Rating |
outdoor |
|
Operating Temperature |
-20ºC-+45 ºC |
|
Power In: |
Fixed |
|
CRI (Ra>): |
95 |
|
warranty: |
2 year |
|
Compatibility: |
|
1. Color Range:16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) |
|
2. Dimming 0-100%with regulated constant color control |
|
3.Strobe: 30 Flashed per second (any color) |
|
4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable and Save function. |
|
5. 6 channel Mode and 3channel Mode would change each other in every light |
|
6. 6CH Mode DMX Value |
CH 1 _ General dimmer (1-255, from dart to light) |
|
CH 2_ Red (1-255, Dimmer, from dart to light) |
|
CH 3 _ Green (1-255, Dimmer, from dart to light) |
|
CH 4_Blue (1-255, Dimmer, from dart to light) |
|
CH 5_ Strobe & Color change/ color gradual change open |
|
CH 6 _Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast) |
|
7. 3CH Mode DMX Value |
CH 1_ Red (1-255, Dimmer, from dart to light) |
|
CH 2 _ Green (1-255, Dimmer, from dart to light) |
|
CH 3_Blue (1-255, Dimmer, from dart to light) |
|
8.Control modes |
0: Sound activity mode |
|
1. DMX control mode |
|
2. Adjusting the color manual |
|
3. Adjusting the brightness manual |
|
4. Adjusting the strobe manual |
|
5. Adjusting the strobe speed manual |
|
6. Master-slave control mode, as the master |
|
7. Sound activity synchronization mode |
|
8. Adjusting color's gradual change manual |
|
9. Adjusting gradual change's speed. |
|
9. Thermal: |
Maximum ambient temperature: 40° |
|
Maximum housing temperature: 60° |
|
|
|
|
