| Prod Model: |
LED 07 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DMX Channel: |
6CH |
| Switch Power Supply: |
Built-in and Auto Switching |
| Control Panel: |
Digital 4 Characters Alphanumeric |
| Connector: |
3 or 5-Pinxlr (in and out) |
| Electronic Dimmer: |
1-100% Linear Dimmer |
| Electronic Strobe: |
1-30 Flashes/Second |
| Cooling: |
Casing as Heat Sink Plus Noiseless Fans |
| Flicker Free: |
Refresh Rate >1000 Hz |
| Key Point: |
Temperature-Protected Easily |
| Usage: |
Theatres, Stage , Robust Housing |
| Application: |
Film and Television |
| Kind: |
Strobe Light |

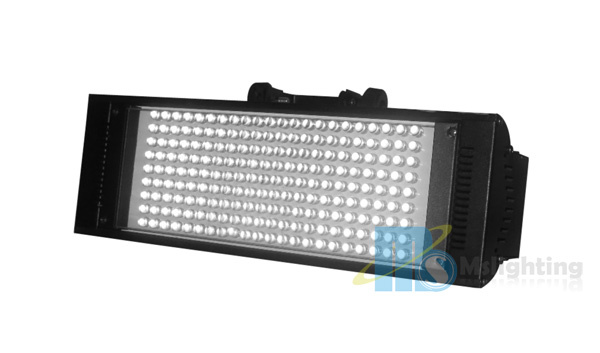

Product Description
LED Strobe light, Strobe light, LED Stage light and LED Effect light/DMX LED light, LED COLOR CHANGE LIGHT, Staget Lighting. LED Light, LED Lighting
According to various kinds of safety standards, IP20 protect grades, The cable accords to the cCE20/22 standard
|
Specification: |
|
Model |
LED 07 (198* Ø 10) |
|
Housing Material |
Iron |
|
Housing Color |
Black |
|
Aperture Cover |
Aluminum |
|
Operating voltage |
100-250V AC |
|
Power |
Switch Power Supply |
|
LED current |
20mA |
|
Control Modes |
Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
|
DMX Channel |
6CH |
|
Connector |
3-PinXLR (In and Out) |
|
NO.of LED |
198LEDS(66R/ 66B /66G) |
|
LED Life Time |
80000-100,000 hours |
|
Beam Angle |
25°/30° |
|
Power Consumption |
30W |
|
Light Projecting Distance |
10-12M |
|
IP Rating |
Indoor |
|
Operating Temperature |
-20ºC -+45ºC |
|
Dimensions |
L460*W155*H135 mm |
|
Weight |
3.50KGS |
|
Packing Dimension |
L530*W200*H280 mm |
|
Gross Weight |
4.00KGS |
|
Compatibility: |
|
1. Color Range : 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) |
|
2. Dimming 0-100%with regulated constant color control |
|
3.Strobe: 10 Flashed per second (any color) |
|
4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable. |
|
5. 6CH DMX Value |
CH 1 _ General dimmer (1-255, from dart to light) |
|
CH 2_ Red (1-255, Dimmer, from dart to light) |
|
CH 3 _ Green (1-255, Dimmer, from dart to light) |
|
CH 4_Blue (1-255, Dimmer, from dart to light) |
|
CH 5_ Strobe & Color change/ color gradual change open |
|
CH 6 _Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast) |
|
6.Thermal |
Maximum ambient temperature: 40° |
|
Maximum housing temperature: 60° |
