| Prod Model: |
(LED-BM0410) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage Range: |
Stage/Theatre/ KTV etc |
| LED Source: |
4PCS 10W RGBW 4in1 or Single White LEDs |
| Beam Effect: |
2degree |
| Feature: |
Each Mini Light Can Be Controlled One by One |
| Effect: |
Rotating Beam Effect |
| N.W.: |
12kgs |
| Dimensions: |
1032X100X273mm |
| Light Source: |
LED |
| Strobe: |
Electronic Strobe |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Material: |
Aluminum Alloy and Plastic |
| Emitting Color: |
RGBW/White |
| Control Channel: |
14CH/32CH |
| Control Mode: |
DMX512, Sound-Activation, Mast-Slave or Auto-Run |
| Voltage: |
AC90V-260V |

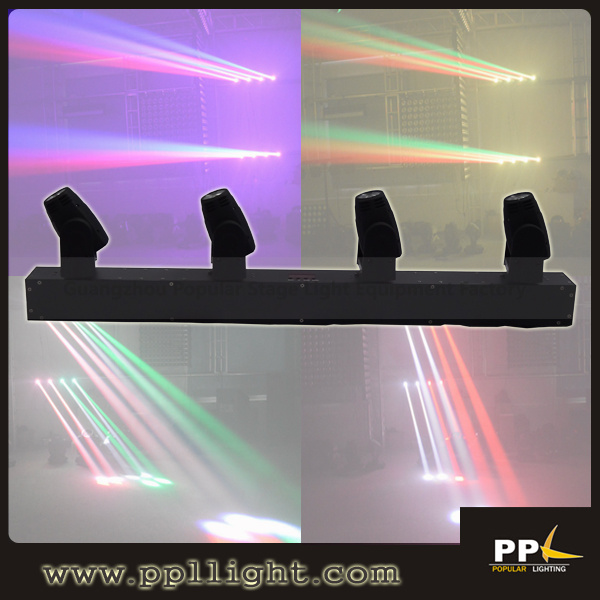

Product Description
Feature:
1. 4pcs 10W mini led moving head light team
2. Each mini lamp can be controlled one by one
3. 50000h lifetime, lower power consumption
Technical Parameter:
Output Voltage: AC90-260V 50/60Hz
4pcs*10W RGBW LED
50, 000Hours lifetime, low power consumption
4pcs moving head lights, could be controlled one by one
Fast, accurate pan/tilt rotation
Pan540° , Tilt: 270°
Scan position memory function, reset function
Beam Effect: 2 degree
18tims/s high speed strobe & pulse strobe function
0-100% nice linear dimming
12types Marco function
8pcs inner setting program
14CH or 32CH (RGBW)
DMX512, Sound-activation, mast-slave or auto-running
Blue LCD screen
Efficient, noiseless heat dissipation system
Body size: 100(D)x1032(W)x273(H)mm
Technical Parameter:
Output Voltage: AC90-260V 50/60Hz
4pcs*10W RGBW LED
50, 000Hours lifetime, low power consumption
4pcs moving head lights, could be controlled one by one
Fast, accurate pan/tilt rotation
Pan540° , Tilt: 270°
Scan position memory function, reset function
Beam Effect: 2 degree
18tims/s high speed strobe & pulse strobe function
0-100% nice linear dimming
12types Marco function
8pcs inner setting program
14CH or 32CH (RGBW)
DMX512, Sound-activation, mast-slave or auto-running
Blue LCD screen
Efficient, noiseless heat dissipation system
Body size: 100(D)x1032(W)x273(H)mm
DMX Channel:
| DMX-control operation |
| 14ch |
| CH | DMX | functional description |
| CH1 | 000-255 | dimming |
| CH2 | 000-255 | strobe |
| CH3 | 000-255 | red dimming |
| CH4 | 000-255 | green dimming |
| CH5 | 000-255 | blue dimming |
| CH6 | 000-255 | white dimming |
| CH7 | 000-255 | colour mixture |
| CH8 | 000-255 | macroefficiency |
| CH9 | 000-255 | macroefficiency speed |
| CH10 | 000-255 | level motor |
| CH11 | 000-255 | vertical motor |
| CH12 | 000-255 | level motor speed |
| CH13 | 000-255 | vertical motor speed |
| CH14 | 000-255 | reset |
| DMX- control operation |
| 32ch |
|
| CH | DMX | functional description |
| CH1 | 000-255 | dimming |
| CH2 | 000-255 | strobe |
| CH3 | 000-255 | head 1 red dimming |
| CH4 | 000-255 | head 1 green dimming |
| CH5 | 000-255 | head 1 blue dimming |
| CH6 | 000-255 | head 1 white dimming |
| CH7 | 000-255 | head 2 red dimming |
| CH8 | 000-255 | head 2 green dimming |
| CH9 | 000-255 | head 2 blue dimming |
| CH10 | 000-255 | head 2 white dimming |
| CH11 | 000-255 | head 3 red dimming |
| CH12 | 000-255 | head 3 green dimming |
| CH13 | 000-255 | head 3 blue dimming |
| CH14 | 000-255 | head 3 white dimming |
| CH15 | 000-255 | head 4 red dimming |
| CH16 | 000-255 | head 4 green dimming |
| CH17 | 000-255 | head 4 blue dimming |
| CH18 | 000-255 | head 4 white dimming |
| CH19 | 000-255 | color mixture of 4 heads |
| CH20 | 000-255 | macroefficiency of 4 heads |
| CH21 | 000-255 | macroefficiency speed of 4 heads |
| CH22 | 000-255 | head 1 level motor |
| CH23 | 000-255 | head 1 vertical motor |
| CH24 | 000-255 | head 2 level motor |
| CH25 | 000-255 | head 2 vertical motor |
| CH26 | 000-255 | head 3 level motor |
| CH27 | 000-255 | head 3 vertical motor |
| CH28 | 000-255 | head 4 level motor |
| CH29 | 000-255 | head 4 vertical motor |
| CH30 | 000-255 | speed of level motor |
| CH31 | 000-255 | speed of vertical motor |
| CH32 | 000-255 | reset |
