| Prod Model: |
LED-BM0410 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Beam Effect: |
2 Degree |
| Usage Range: |
Stage/ Theatre/KTV |
| Screen: |
Blue LED |
| Dimming: |
0-100% Nice Linear Dimming |
| Material: |
Aluminum |
| Strobe: |
Adjustable Speed Strobe |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Light Source: |
4PCS*10W White Lumi LEDs LED/10W CREE4 In1 |
| Emitting Color: |
RGBW/Singel White |
| Control Channel: |
13CH/30CH |
| Control Mode: |
DMX512, Sound-Activation, Mast-Slave or Auto-Runni |
| Voltage: |
AC90V-260V |

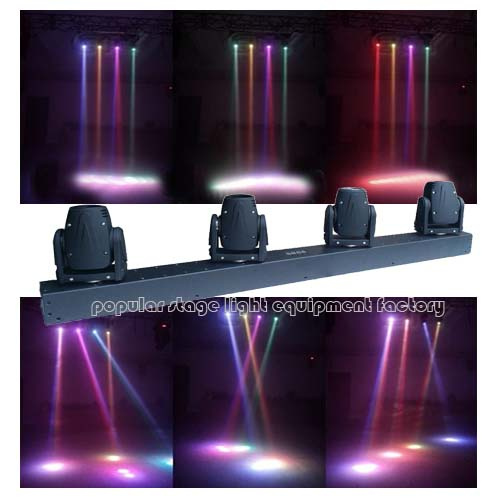

Product Description
Technical Parameter:
· Output Voltage: AC90-260V 50/60Hz
· LED sources: 4PCS*10W White LED
· 50, 000Hours lifetime, low power consumption
· 4PCS moving head lights, could be controlled one by one
· Fast, accurate pan/tilt rotation
· Pan540° , Tilt: 270°
· Scan position memory function, reset function
· Beam Effect: 2 degree
· 18tims/s high speed strobe & pulse strobe function
· 0-100% nice linear dimming
· 12types Marco function
· 8PCS inner setting program
· 13/30CH alternatively
· DMX512, Sound-activation, mast-slave or auto-running
· Blue LCD screen
· Efficient, noiseless heat dissipation system
· Body size: 100(D)X1032(W)X273(H)mm
| CH MODE | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| 6CH | pan | tilt | rdimming | gdimming | wdimming |
|
|
|
|
|
| 29CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ...... | 18 |
| dimming | strobe | r1dimming | G1 dimming | B1 dimming | w1 dimming | R2dimming | G2dimming |
| W4dimming |
| 19 | 20 | 21 | 22 | .... | 26 | 27 | 28 | 29 |
|
| pan1 | tilt1 | pan2 | tilt2 | ..... | tilt4 | motor speed | function option | DMX512ID |
|
