Outline Dimensions:
90.00X122.00X15.00mm
Digit Height:
4 Inch(101.6mm)
Emitting Color:
Single Color
Dp Number:
1PC
Digit Number:
1 Digit
Chip Matrial:
4-Element
Tube Chip Color:
Single Color
Scanning Mode:
Static Scan
Display Type:
Segment LED Display
Application:
Meters and Instruments
Certification:
Reach
Display Function:
Numbers and Some Alphabets
Product Description
Features Ø 101.6 mm (4 inch) digit high Ø Excellent digit appearance Ø Wide viewing angle Ø Range of emitted colors Ø I.C. compatible Ø Low power consumption Ø White segment Ø RoHS compliant
Available options
Ø Alternative emitting luminosity: Standard or high brightness version Ø Alternative emitted color Ø Alternative segment color Ø Alternative font Ø Common Cathode is available Ø Cropped terminal pins Selection Guide

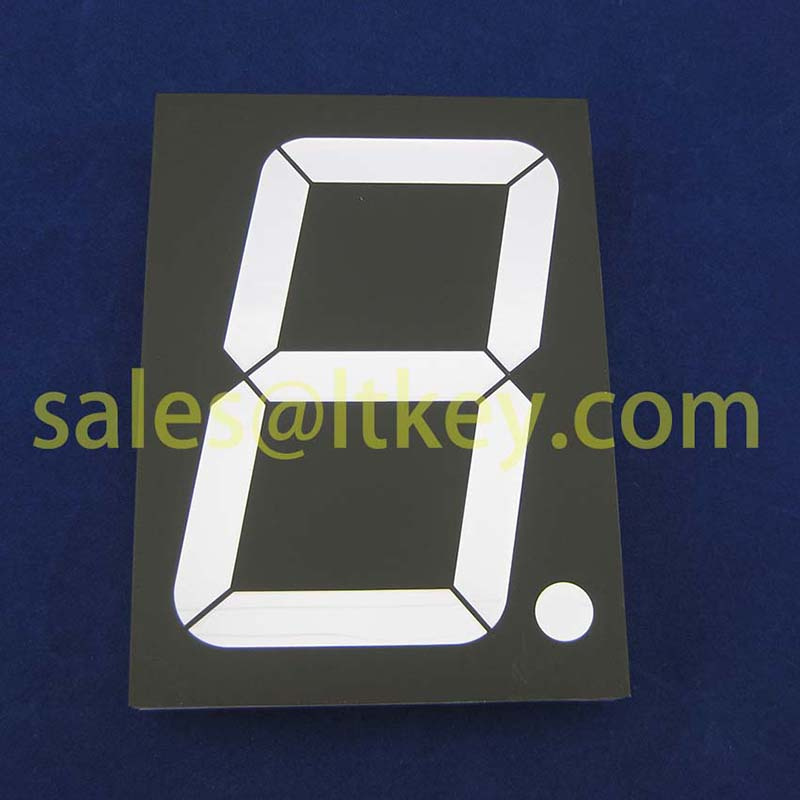

Single Digit 7 Segment LED Display, Digit Height: 101.60mm(4.00inch), External Dimensions: 90.00x122.00x15.00mm (L x W x H )
Part No.
Chip
Iv@IF=20mA
Iv@IF=20mA

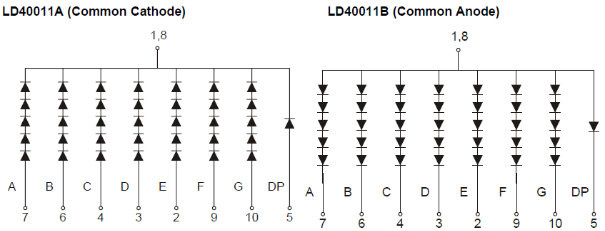

CC
CA
Material
Color
WLD
One Seg
One DP
Min.
Typ.
Min.
Typ.
LD40011AR
LD40011BR
GaAlAs
Super Red
640
30
37.5
8
10
LD40011AD
LD40011BD
GaAlAs
Hi-Red
640
67.5
93.75
18
25
LD40011AO
LD40011BO
GaAsP
Orange
625
26.25
33.75
7
9
LD40011AY
LD40011BY
GaAsP
Yellow
588
30
37.5
8
10
LD40011AG
LD40011BG
GaP
Green
568
26.25
33.75
7
9
LD40011AUR
LD40011BUR
AlGaInP
Ultra Red
640
112.5
168.8
30
45
LD40011AUO
LD40011BUO
AlGaInP
Ultra Orange
625
168.75
225
45
60
LD40011AUA
LD40011BUA
AlGaInP
Ultra Amber
65
112.5
168.8
30
45
LD40011AUY
LD40011BUY
AlGaInP
Ultra Yellow
595
112.5
168.8
30
45
LD40011AUG
LD40011BUG
AlGaInP
Ultra Green
573
112.5
168.8
30
45
LD40011APG
LD40011BPG
InGaN
Pure Green
525
450
1125
120
300
LD40011AUB
LD40011BUB
InGaN
Ultra Blue
470
112.5
168.8
30
45
LD40011AUW
LD40011BUW
SMD
Ultra White
\
375
450
100
120
Unit:
\
\
\
nm
mcd
mcd
mcd
mcd
