Lifespan:
8, 000 hours
Type:
3U
Tube Diameter:
9mm
Lamp Holder/Base:
E27
Certification:
ISO9001
Warranty:
1 Year
Shell Type:
Transparent
Color Temperature:
2700k 4100k 6400k
Product Description
1) Model A) Power: 7W 9W, 11W, 15W, 18W B) Voltage: 110 - 130V, 220 - 240V C) Luminosity (Lm): 450, 560, 650, 840 D) Ra: ≥ 80 E) Temperature: 2, 700 - 6, 400K F) Base type: E27/B22 G) Lifetime (hrs): ≥ 6, 000 H) L (mm): 95, 100, 105, 110 I) L1 (mm): 50 J) A (mm): 49 K) Φ (mm): 9 L) C (mm): 43
2) Model A) Power: 15W, 20W, 23W, 26W B) Voltage: 110 - 130V, 220 - 240V C) Luminosity (Lm): 840, 1120, 1300, 1480 D) Ra: ≥ 80 E) Temperature: 2, 700 - 6, 400K F) Base type: E27/B22 G) Lifetime (hrs): ≥ 6, 000 H) L (mm): 115, 135, 145, 155 I) L1 (mm): 65 J) A (mm): 60 K) Φ (mm): 12 L) C (mm): 54
3) Model A) Power: 15W, 20W, 23W, 26W B) Voltage: 110 - 130V, 220 - 240V C) Luminosity (Lm): 840, 1120, 1300, 1480 D) Ra: ≥ 80 E) Temperature: 2, 700 - 6, 400K F) Base type: E27/B22 G) Lifetime (hrs): ≥ 6, 000 H) L (mm): 120, 140, 150, 160 I) L1 (mm): 70 J) A (mm): 60 K) Φ (mm): 12 L) C (mm): 54
Inner packing: Color box 1) dimensions (cm): A) 9W: 5.0 x 5.0 x 10.3 B) 11W: 5.0 x 5.0 x 10.8 C) 13W: 5.0 x 5.0 x 11.3 D) 15W: 5.0 x 5.0 x 11.8 2) dimensions (cm): A) 15W: 6.1 x 6.1 x 12.3 B) 20W: 6.1 x 6.1 x 14.3 C) 23W: 6.1 x 6.1 x 15.3 D) 26W: 6.1 x 6.1 x 16.3 3) dimensions (cm): A) 15W: 6.1 x 6.1 x 12.8 B) 20W: 6.1 x 6.1 x 14.8 C) 23W: 6.1 x 6.1 x 15.8 D) 26W: 6.1 x 6.1 x 16.8
Outer packing: 1) 100PCS/CTN Carton dimensions (cm): A) 9W: 56.0 x 28.5 x 26.5 B) 11W: 56.0 x 28.5 x 27.5 C) 13W: 56.0 x 28.5 x 28.5 D) 15W: 56.0 x 28.5 x 29.5 2) 50PCS/CTN Carton dimensions (cm): A) 15W 66.0 x 34.0 x 16.5 B) 20W 66.0 x 34.0 x 18.5 C) 23W 66.0 x 34.0 x 19.5 D) 26W 66.0 x 34.0 x 20.5 3) 50PCS/CTN Carton dimensions (cm): A) 15W 66.0 x 34.0 x 17.0 B) 20W 66.0 x 34.0 x 19.0 C) 23W 66.0 x 34.0 x 20.0 D) 26W 66.0 x 34.0 x 21.0

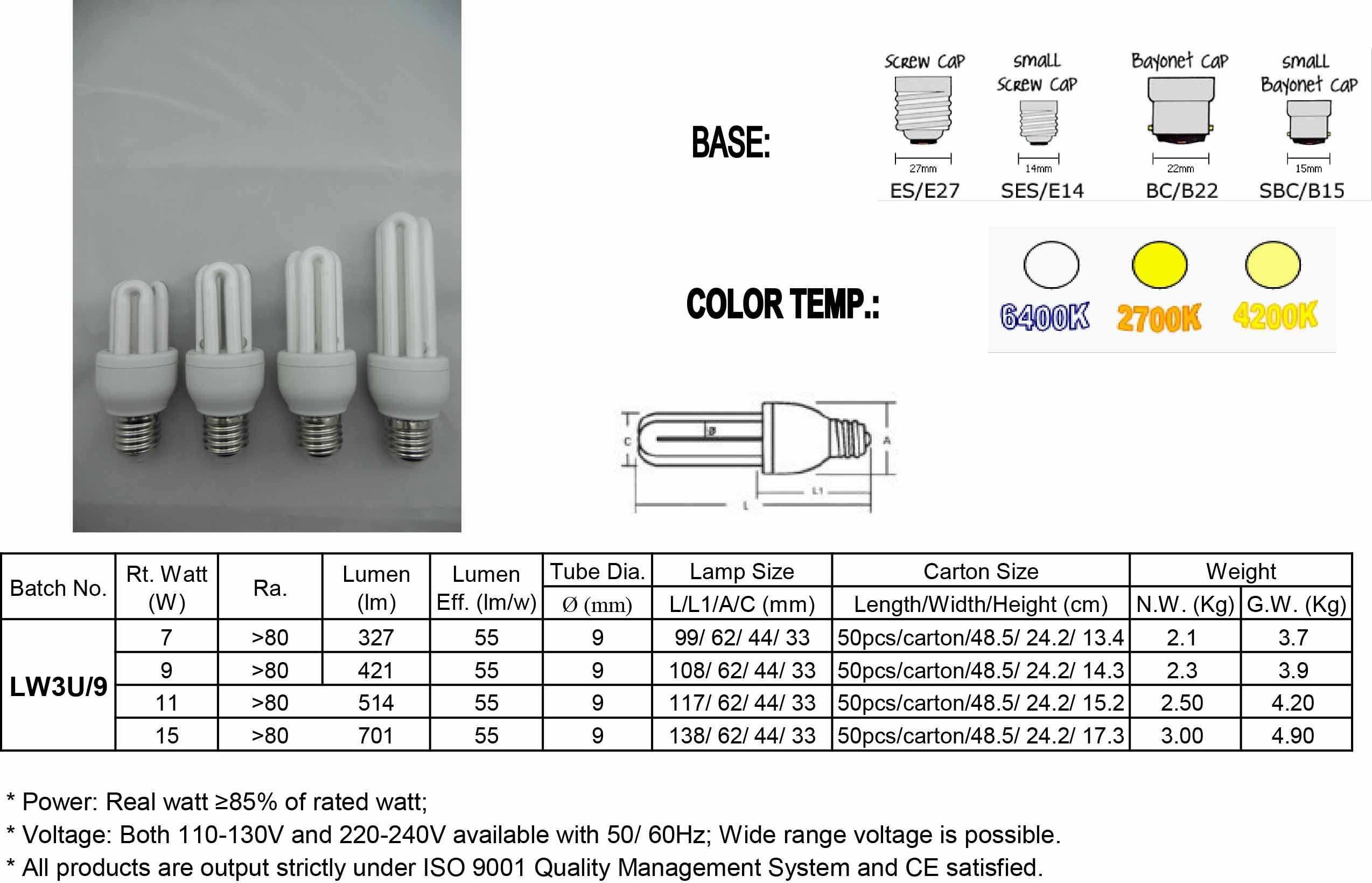

Batch No.
Rt. Watt (W)
Ra.
Lumen (lm)
Lumen Eff. (lm/w)
Tube Dia.
Lamp Size
Carton Size
Weight
Ø (mm)
L/L1/A/C (mm)
Length/Width/Height (cm)
N. W. (Kg)
G. W. (Kg)
LW3U/9
7
> 80
327
55
9
99/ 62/ 44/ 33
50pcs/carton/48.5/ 24.2/ 13.4
2.1
3.7
9
> 80
421
55
9
108/ 62/ 44/ 33
50pcs/carton/48.5/ 24.2/ 14.3
2.3
3.9
11
> 80
514
55
9
117/ 62/ 44/ 33
50pcs/carton/48.5/ 24.2/ 15.2
2.50
4.20
15
> 80
701
55
9
138/ 62/ 44/ 33
50pcs/carton/48.5/ 24.2/ 17.3
3.00
4.90
Hangzhou Leiwei Electric Appliance Co., Ltd. Which has a total investment of $20 million, while $2.5 million registered capital. It located in Zhejiang Lin' An Economic Development Zone in Zhejiang province. The factory area reaches to 36667 square meter and workshop area is 25000 square meter.
The company is a newly high-tech enterprise, which devotes in such field as the design, the research&development and manufacturing of Energy-saving lamp, as well as the LED lamps. At present, the monthly output is approximately 3, 000, 000 pieces.
Currently, there are 18 energy saving lamp series with more than 100 specifications, All of the products are according to the ISO9001: 2000' S standard and own CE, EMC, RoHS, GS, UL international approval. Moreover, it formed the sales network globally in the rough.
The ' Quality First, Customer upmost' Is our guiding philosophy, Based on the enterprise spirit of ' Solidarity, collaboration, deploitation, Dedication ' We will constantly strive to provide our customers both the resonable price and best sales services.
