| Prod Model: |
LED-M3641B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage Range: |
Stage/ Theatre/KTV |
| LED Source: |
36PCS 10W RGBW 4in1 LEDs |
| DMX Channel: |
15/39CH |
| Feature: |
LED Color Fan-Shaped Changed |
| Light House: |
PC Engineering Plastic |
| Light Source: |
LED |
| IP Rating: |
IP20 |
| Strobe: |
Electronic Strobe |
| Control Mode: |
Dmx Signal Control |
| Certification: |
RoHS |
| Voltage: |
AC 90~245V, 50~60Hz |
| Material: |
PC Engineering Plastic |
| Emitting Color: |
RGBW |
| Control Channel: |
15/39CH |

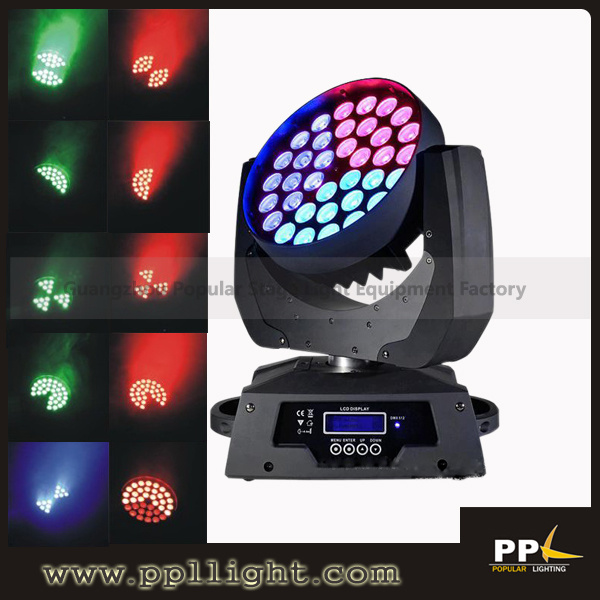

Product Description
Technical Parameter :
Voltage: AC 90~245V, 50~60Hz
Lamp: 36*10W 4IN1 RGBW /A
Rated Power: 360W
Control Signal: DMX 512/Master-slave/ Auto/Custom/Sound Control
Channels: 15/39CH (RGBW)
Installed with 36 LED Lamps, the power of the products reaches 360W.
The average life time of each LED reaches 100, 000 hours.
Low power consumption.
Super luminance, comparable to the efficiency of halogen discharge lamps, rich and splendid color.
DMX-512 control signal, 15/39 standard channels.
The housing is made of streamline fashionable PC engineering
Plastic 0f after once casting.
Wide range super tiny smooth scanning, horizontal scanning
Angle reaches 540° , and vertical 270° , the scanning precision
Reaches 8bit and16bit, with smooth and precise positioning,
Additionally, the scanning speed is adjustable.
Infinite RGB color mixed system.
The light beam angle can be 15° , 25° , 45° , 60° , optional.
High speed electronic strobe reaches 1-18 times/second
Size: 380 x 350 x 450 mm
N/G Weight: 10.0/12.0kg
DMX Channel:
39 DMX Channel | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| Pan | Pan Fine | Tilt | Tilt Fine | Dimmer | Strobe | Red | Green | Blue | White | Speed | Macro | Color Fading |
| 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 |
| Auto | Reset | Red | Green | Blue | White | Red | Green | Blue | White | Red | Green | Blue |
| 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 |
| White | Red | Green | Blue | White | Red | Green | Blue | White | Red | Green | Blue | White |
