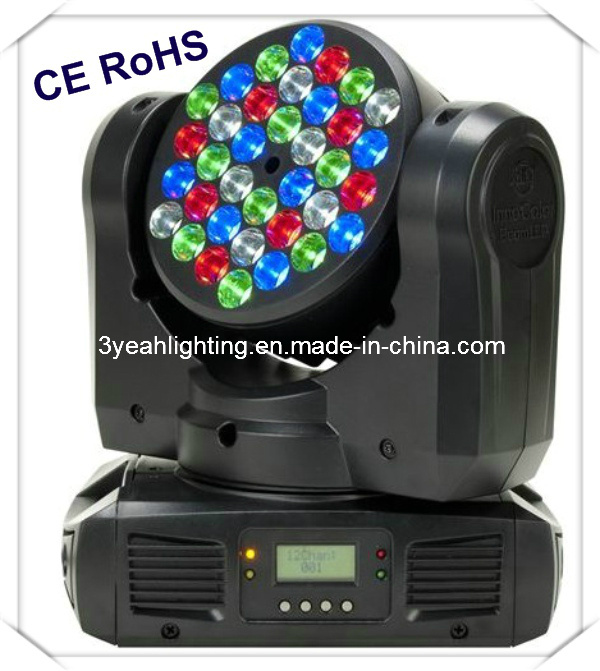

36PCS 3W High-Efficiency CREE LED Moving Head Beam / Beam Moving Head / RGBW CREE LED Beam Light
Parameter:
1. Light source: 36x 3-Watt CREE LEDs lamp (8x Red, 10x Green, 10x Blue & 8x White)
2.3 operational modes: DMX-512, Sound Active or Master/Slave
3.14 DMX channels
4. Smooth electronic dimming: 0% - 100%
5.13.5-degree beam angle
6. Pan: 540-degree; Tilt: 240-degree, speed adjustable
7. LED DMX 4-Button menu system
8.3-pin XLR In/Out
9. Fan cooled
10. Electronic strobe with pulse and random effects
11. Extreme long lifetime of the LED (50, 000 hr. Rating)
12. Multi-voltage Operation: 100-240V, 50Hz/60Hz
13. Power Consumption: 120W max
14. Fuse: T 4A
15. Dimensions (LxWxH): 304X267X167 mm
16. Weight: 5.7kg
Zenith 36PCS 3W High-Efficiency CREE LED Moving Head Beam YC-6836C
Channel |
Value |
Function |
CH1 |
0-255 |
Pan |
CH2 |
0-255 |
Pan Fine |
CH3 |
0-255 |
Tilt |
CH4 |
0-255 |
Tilt Fine |
CH5 |
0-255 |
Pan and tilt from fast to slow |
CH6 |
0-255 |
Dimmer |
CH7 |
0-255 |
Strobe |
CH8 |
0-255 |
Red dimming 0%-100% |
CH9 |
0-255 |
Green dimming 0%-100% |
CH10 |
0-255 |
Blue dimming 0%-100% |
CH11 |
0-255 |
White dimming 0%-100% |
CH12 |
0-10 |
no function |
11-80 |
fixed 7 colors |
81-123 |
four colors jumping |
124-166 |
four colors to gradual changing |
167-209 |
sixteen colors jumping |
210-255 |
sixteen colors to gradual changing |
CH13 |
0-127 |
no function |
128-255 |
Auto operation |
CH14 |
128-255 |
Reset of system |
