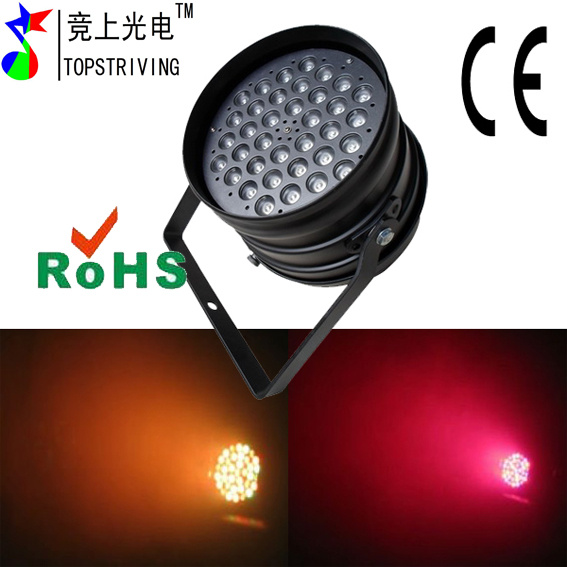

36*1W or 3W LED Stage PAR 64 Light LED PAR 64 36 S
TECHNICAL SPECIFICATIONS:
Power supply: 90-240V AC 50/60Hz
Power consumption: 130W
DMX-control-channels: 8
DMX-512-connection: 3-pin XLR
Number of LED: 36 high MCD 3W LED:
R/G/B: 12/12/12 PCS for each
25° Beam angle
Dimensions: 340X270X270mm
Weight: 3.5 kgs
DETAILED PARAMETERS:
DU hanging brackets for easy floor standing
Electronic power supply AC 88-264V 47-63Hz
Full Master/Slave operation in any operational mode,
Electronic Dimming, color strobe effect and long life operation
Short silver/black housing PAR 64 with 36*1W or 3W high MCD LEDs (12 Red, 12Green, 12 Blue LEDs)
Smooth RGB color mixing
Low heat, Long Life LEDs (100, 000 hrs. )
Operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave
Beam Angle: 15° /25° /30° /45° Degrees
Color strobe effect
Uses 8 DMX Channels
Stand Alone, Master/Slave
Linkable via 3-pin XLR cable
Electronic Dimming: 0-100%
Dimensions: 300*270*240mm
Weight: 3 kgs
OUR SERVICE:
1. Your inquiry related to our products or prices will be replies in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design And put into product without any charges
3. Shipping method: DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc
4. Promised After-sales Service
5. Definitely high brightness with good material inside
6. Customised LED Quantity Design
EIGHT DMX channels |
Channel 1 |
red from small to big brightness (dimming) |
Channel 2 |
green from small to big brightness (dimming) |
Channel 3 |
blue from small to big brightness (dimming) |
Channel 4 |
master dimmer from small to full brightness |
Channel 5 |
strobe from slow to fast |
Channel 6 |
dimmer,color macro |
0-30 |
dimmer on at ch1/ch2/ch3/ch4 |
31-255 |
color macro, the brightness can be adjusted by the master dimmer at ch4 |
Channel 7 |
dimmer, increasing brightness, then decreasing brightness, colors following one by one |
0-85 |
dimmer on at ch1/ch2/ch3/ch4 |
86-169 |
increasing brightness, then decreasing brightness, the running speed can be adjusted by ch8 |
170-255 |
color following one by one, the running speed can be adjusted by ch8 |
Channel 8 |
running speed adjustments |
