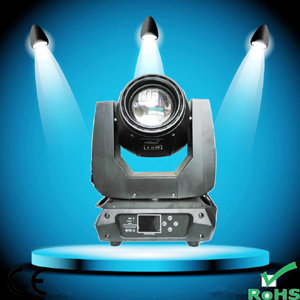

330W LED Moving Head Beam Light

Prod Model:	JNT-B030
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Osram:	Hri280W
Total Power:	600W
Color:	9color+White
X-Axis:	540
Display:	LCD
Prism:	8-Faced Prism
Light Source:	LED
Material:	Aluminum Alloy
Emitting Color:	Changeable
Control Channel:	18CH
Strobe:	Adjustable Speed Strobe
Control Mode:	Dmx Signal Control
IP Rating:	IP20
Certification:	RoHS
Voltage:	240V

Product Description

Specifications

1.YODN bulb, with super high brightness
2.18CH
3.Sharpy moving head beam
Ballast:E-ballast

Name	15R SPOT PRO FEATURES
Model
Input power	AC110-240V 50/60 Hz
Light source	Discharge lamp with a short arc burner in a reflector system - Type: Optional Yodn MSD R17 350W,1,500hr, 8000k                         Philips UHP 15R                         Philips MSD Platinum 15R                          Osram Siruis HRI 330W - Output Lamp power: 330W - Average life: 750 h
OPTICS	Lens: Anti-reflective coated lens YiLong optic system Output Lux: 10,500lux at 20 meters
COLOR SYSTEM	Colors: Basic color wheel with 6 dichroic mirrors, plus white, two direction rainbow effect. CMY Variable Color Mixing for Infinite Color Possibilities
GOBO SYSTEM	8 rotating gobos plus open, all gobos can be easily replaceable and gobo indexing Static gobo wheel with 14 indexing gobos plus open, gobo shaking in different speed
EFFECTS SECTION	Prism and prism rotating , with 16 prism macros Linear dimmer in precise speed from 0% ~ 100% Stepless frost, 0%-100% linear change frost Motorized focus Iris from 5%~100% with pulse iris effect. Zoom: 9°~27° linear zoom Strobe/shutter: High speed shutter, 0-13 Hz or random strobe
CONTROL AND PROGRAMMING	DMX Channels: 3 DMX Modes-21/23/34 Channels DMX Control: 3-pin&5-pin DMX Control board with LCD graphic touching display
BODY	Remote controller lamp's switch function, display light and lamp's using time Structure: heat-proof plastic+module pressing alloy materials
MOVING BODY	Pan and tilt movement: 8 and 16 bit resolution For smooth and precise motion Movement: Pan: 360°/540°optional, Tilt: 270° Speed of pan/tilt movement adjustable Scan position memory, auto reposition after unexpected movement
ELECTRONICS	Function reset from the lighting desk ON/OFF lamp control from the lighting desk "AUTOTEST" function from menu Electronic monitoring with status error
SAFETY DEVICES	Bipolar circuit breaker with thermal protection. Automatic break in power supply in case of overheating or failed operation of cooling system. Forced ventilation with axial fans. Hanging system: with fast-lock omega clamps (1/4 turn) on the base
WEIGHT&SIZE	Weight: 23kgs Dimensions: 409*419*541mm

15R SPOT PRO FEATURES

Brighter:
(New 330W Lamp Source Brings Incomparable Pure Brightness)
Small size but stronger:
(Comparable Output Of 1500W Fixtures,but 1/5 Power Consumption and 1/3 size Only 23kg, 41*37*75cm)
Best color system:
(CMY color mixing effect and 6 dichroic colors, YL optic system)
Best gobo system:
(2 gobo wheels: 14 static gobos and 8 rotating replaceable gobos)
Most Funtional:
(Zoom, Iris, Prism, Focus, Frost Filter, Shutter, with full Moving Heads Spot/Wash functions)
