Prod Model: |
UB-15R Beam-H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
409*419*541mm |
Weight: |
23kg |
Channel: |
16 Chs / 20 Chs |
Pack: |
Cutton Paper/Flight Case |
Power Supply: |
AC110V-240V 50/60Hz |
Power Consumption: |
350W Max |
Lamp: |
Osram 330W |
Color Temperature(K): |
8000k |
Life Time(H): |
1, 500hr |
Cmy: |
Cmy Color Mixing System |
Light Source: |
LED |
Material: |
Aluminum |
Emitting Color: |
RGB |
Control Channel: |
16CH |
Strobe: |
Adjustable Speed Strobe |
Control Mode: |
Dmx Signal Control |
IP Rating: |
IP20 |
Certification: |
UL |
Voltage: |
220V |
Product Description
330W 15r Spot Beam Moving Head stage Light
Features:
Yodn 330w 15r, unique Optical lens
Sharpiest, biggest beam in the beam market
Unique/only 8/16/24/32/40/48 prism effect all in one
2 gobo system that can cast colorfull beam and different beam shape combining with the gobo wheel
1.Parameter:
beam spot moving head Model: YA056 |
Voltage | AC 100-240v, 50-60Hz |
Power frequency | 330w |
Control channel | 3 DMX modes 21/23/34 Channels DMX International DMX512 signal, auto-run, master/slave |
Strobe | 0-13 times/sec, with random stroboscopic |
Color | 7500K |
Function | a color wheel.6colors+white,a pattern plate. 14Pattern+whiteReplaceable pattern plate high speed wobble effect,an atomizer a eight prism positive and negative direction of rotation Positioning function with prism.focus,zoom,LCD display |
|
|
Prism | rotating 3-prism, can be positive and negative rotation direction and with 16 prism micro effect |
|
|
Focus | linear electronic focus |
Dimmer | 0-100% linear dimmer |
Aperture | 5%-100% aperture effect |
G.W. | 23kg |
channel | Channel mode |
1CH | color wheel | 0-255 |
2CH | strobe/swiching | 0-255 |
3CH | dimming | 0-255 |
4CH | pattern plate | 0-255 |
5CH | rotation of pattern plate | 0-255 |
6CH | 16 prism rotation | 0-255 |
7CH | 16 prism autorotation | 0-255 |
8CH | focus | 0-255 |
9CH | enlarge | 0-255 |
10CH | fixed 24 prism | 0-255 |
11CH | X | 0-255 |
12CH | X fine turning | 0-255 |
13CH | Y | 0-255 |
14CH | Y fine turning | 0-255 |
15CH | reset | 0-255 |
16CH | lamp control | 100-105light off 200-205light on |

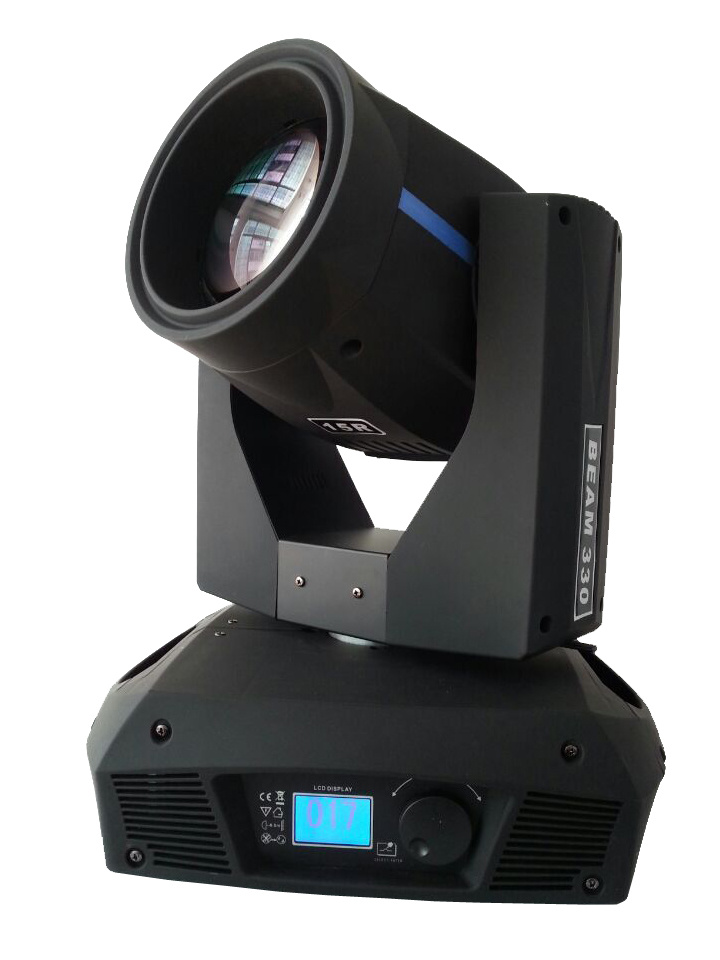

2.product images:

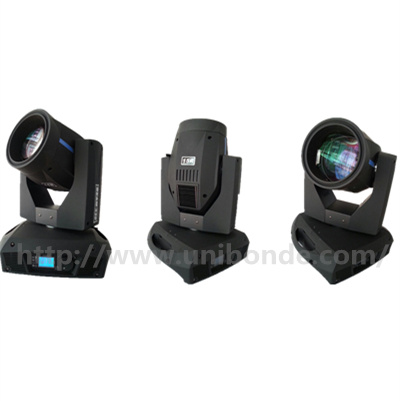

3.detailed drawing
4.FAQQ:How about the warranty?
A:All of our light have 24 months warranty.
Q:When you will ship the product after I pay the money?
A:Its depend on the order, small order will takes 3-5 work days. if the item in store, we will ship next day.
Q: If the light have some problem,do you have some after sales service?
A:Ofcourse. First, you need send picture or video to us,let us make sure what's problem about the product.If this problem can use parts to solve
we will send the replacements in free and bear the shipping fee, if the problem cannt solve,We will give u discounts in your next order for compensation.5.after serviceDear customer, every product passes the quality inspection before shipment. If you find any problems with the product, Pls kindly to provide us the photos or video. That will help us figure out the problem as soon as possible. We always devote ourselves to be a better choice to customers. Your support is highly appreciated
Choose us, choose profession! Dear customer, every product passes the quality inspection before shipment. If you find any problems with the product, Pls kindly to provide us the photos or video. That will help us figure out the problem as soon as possible. We always devote ourselves to be a better choice to customers. Your support is highly appreciated
Choose us, choose profession!

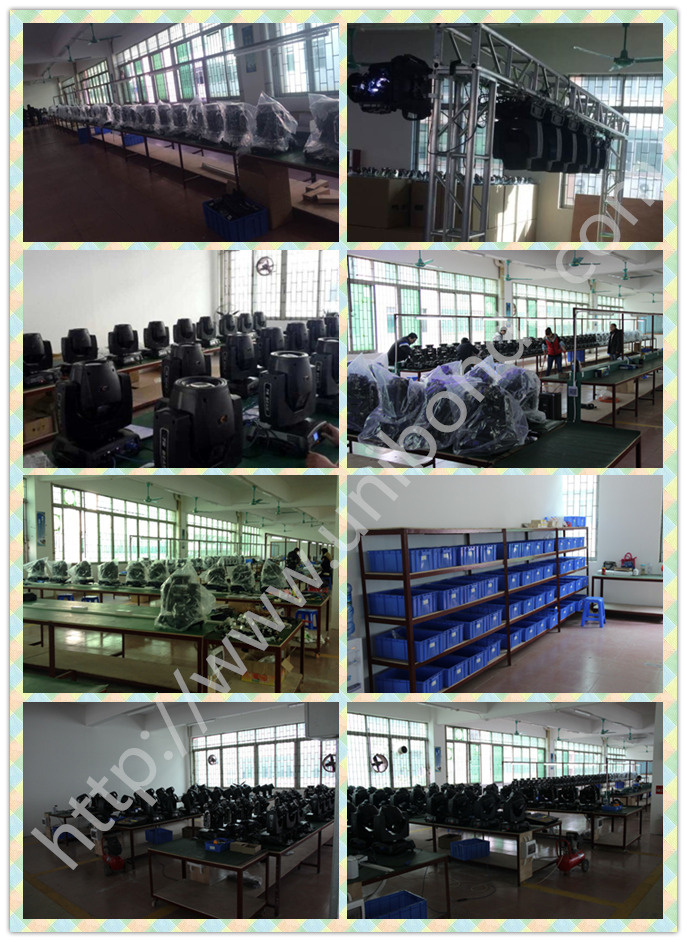

6.factory images
7.About us
The Unibond Electronics group is a global designer, manufacturer and distributor of electronic and electric products for the lights industry.
Frankfurt Music Messe Pro Light + Sound, Beijing PALM Show,Guangzhou pro sound and light show , Music China Shanghai and other trade fairs provide us opportunities for face-to-face communication with customers. Alibaba, Google, facebook,, Baidu and other network promotion are the way to achieve the customers.
UnibondLights is specialized in stage lighting researching,producing,selling and after sell serviceand also doing the stage lighting engineering.With leading technology, fashion experience elite team , advanced management mode, excellent workmanship,at the same time.
Guangzhou Unibond Electronics Co., Ltd has been dedicated to R&D, manufacture and sales of stage lighting, architectural series, LED series. Such as Beam light, Spot light, LED Moving, LED Effect Light, LED PAR Light, LED washer and so. OEM and customized service is well provided for our customers.
Over 20 years of technical experience of our lighting engineers are the foremost guarantee to all of our operation. Nearly 70 light professionals and staffs are working for the company dedicatedly and energetically. Insistent training with serious, systematic and sophisticated QA concept to our staffs had built up solid foundation to our quality as well as to our success in the industry. We have the world top-ranking professional test equipment. The excellent quality and fast service acquire us great reputation from distributors and users all over the world.
