| Prod Model: |
PL-TNL320W-W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
LED Tunnel Light |
| LED Light Source: |
4PCS 80W COB LED Chips |
| Power: |
240W |
| Material: |
Stainless Steel Cover+Aluminium Body |
| Color: |
White, Warm White |
| Ralated Power: |
100W 160W 200W 210W 240W 320W |
| Flux: |
25600lm |
| Size: |
930*290*110mm |
| Application: |
Tunnel, High Way, Billboard |
| Pf: |
0.9 |
| Color Temperature: |
Cool White |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP65 |
| Beam Angle: |
90?? |
| Housing Color: |
black |
| Lifespan: |
>50000 hours |
| Warranty: |
3 Years |
| Certification: |
RoHS |
| With Light Source: |
With Light Source |
| Voltage: |
85-265VAC |
Product Description

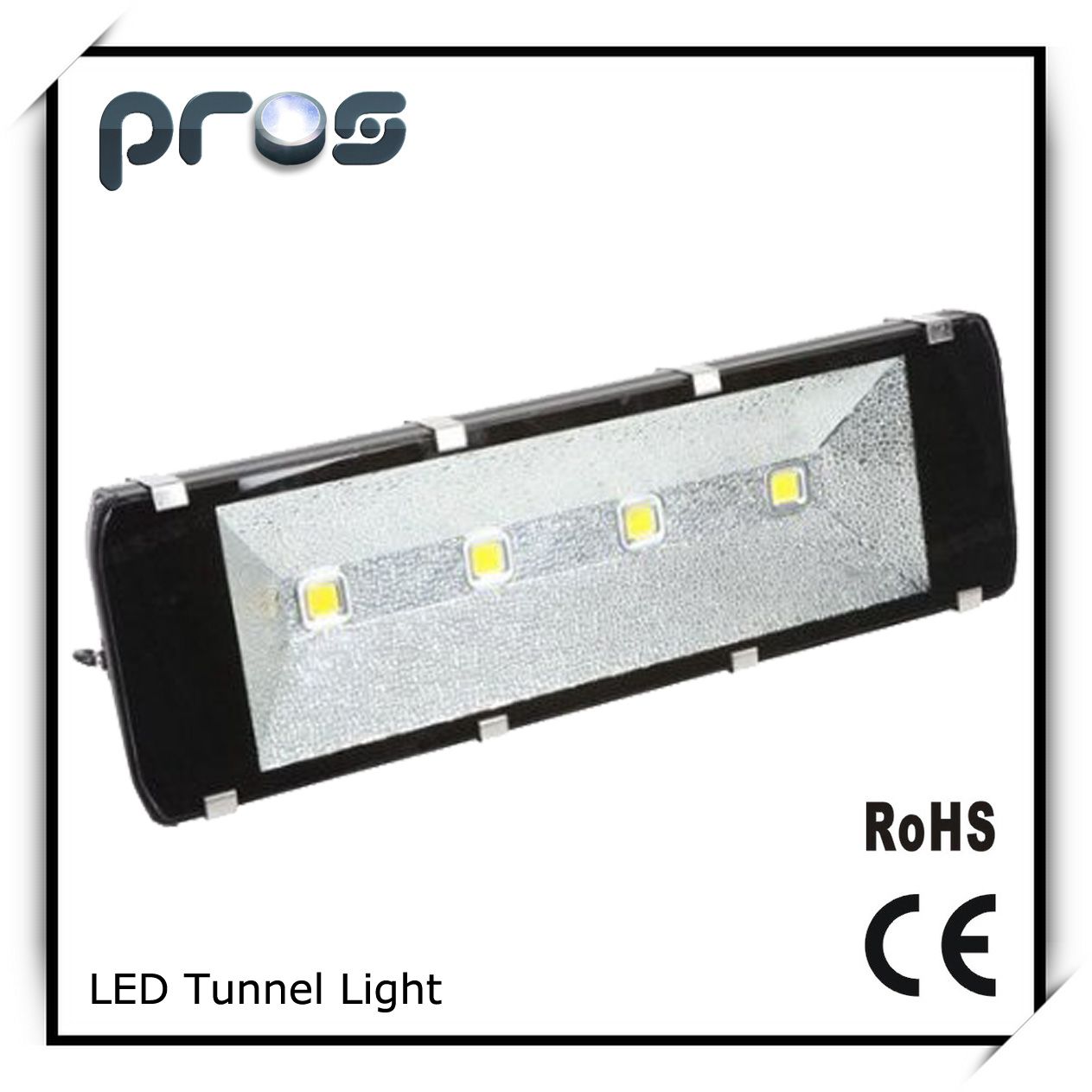

320W LED Outdoor Lighting for Tunnel Feature:
1. Adopting integrated Chip as light source with high lighting efficiency, high CRI(Ra>70), good quality heat dissipation, low
Light degradation.
2. Aluminium alloy die cast sheel, good strength, high quality heat dissipation. Anti corrosion and baking varnish surface, can
Be for outdoor using.
3. Make a dedicated luminous intensity distribution design via the aluminium reflector, there are two options for lighting
Distribution, one is for focusing, another is for divergencing.
4. Wide Input Voltage from 90V~264VAC, constant voltage constant current output, can start up at once, no flicker, PFC Function available.
Industrial led tunnel light application:
Buildings, warehouses, street, construction sites, basements, tunnels, stadiums, parking lots, gas stations, billboards, squares, docks, lawn, gardening, design, exhibition hall factory, the factory shops, supermarkets and other light and decorative
Lighting situations.
LED outdoor light package:
Packaging: 1 piece per carton
General Character&Dimension
| Item Number | PL-TNL100W-W | PL-TNL160W-W | PL-TNL210W-W | PL-TNL240W-W | PL-TNL320W-W |
| Input Voltage(V) | AC 85-265 | AC 85-265 | AC 85-265 | AC 85-265 | AC 85-265 |
| LED Consumption(W) | 100W | 160W | 210W | 240W | 320W |
| Driving power factor | >0.97 | >0.97 | >0.97 | >0.97 | >0.97 |
| Size(mm) | 360*290*110 | 600*290*110 | 760*290*110 | 760*290*110 | 930*290*110 |
| Lumen(lm) | 9000 | 14400 | 16800 | 19200 | 25600 |
| Colour | warm white,white | warm white,white | warm white,white | warm white,white | warm white,white |
| IP rating | IP65 | IP65 | IP65 | IP65 | IP65 |
