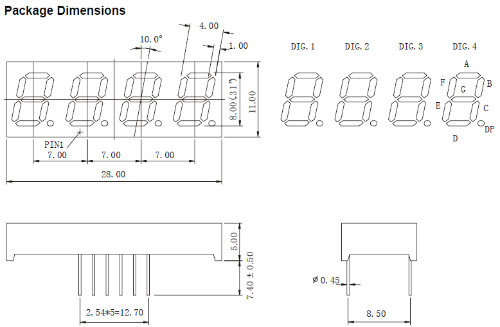

Outline Dimensions:
28X11X5mm
Digit Height:
0.31 Inch(8mm)
Emitting Color:
Red Color
Dp Number:
4PCS
Digit Number:
4 Digits
Chip Matrial:
4-Element
Tube Chip Color:
Single Color
Scanning Mode:
Static Scan
Display Type:
Segment LED Display
Application:
Meters and Instruments
Certification:
Reach
Display Function:
Numbers and Some Alphabets
Product Description
Features Ø 8 mm (0.31 inch) digit high Ø Excellent digit appearance Ø Wide viewing angle Ø Range of emitted colors Ø I.C. compatible Ø Low power consumption Ø White segment Ø RoHS compliant Available options
Ø Alternative emitting luminosity: Standard or high brightness version Ø Alternative emitted color Ø Alternative segment color Ø Alternative font Ø Common Cathode is available Ø Cropped terminal pins Selection Guide

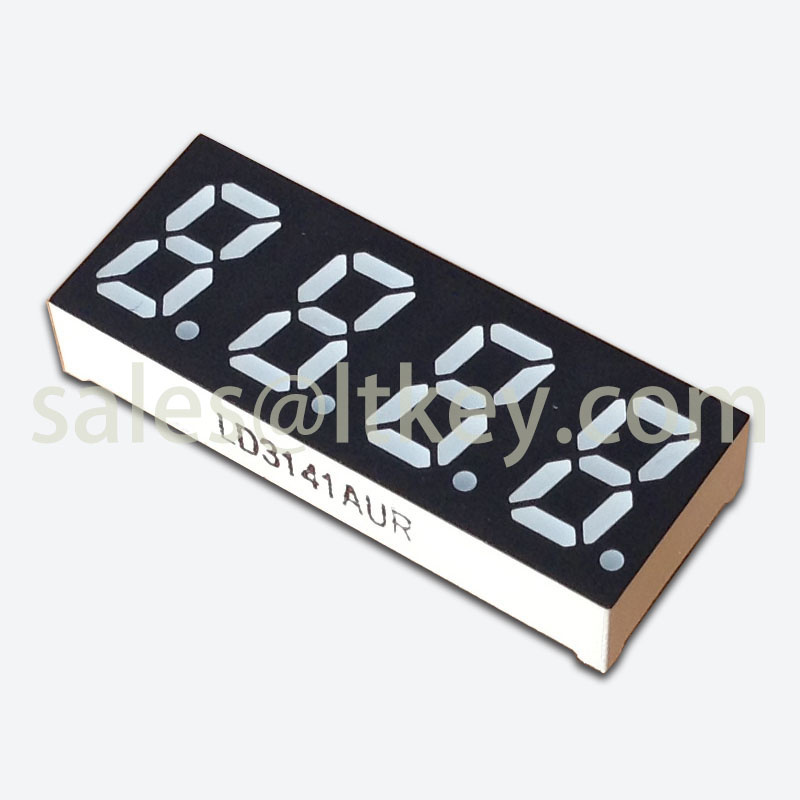

Four Digit 7 Segment LED Display, Digit Height:8.00mm(0.31 inch), External Dimensions: 28.00x11.00x5.00mm (L x W x H)
Part No.
Chip
IV@IF=20mA
Iv@IF=20mA
Common Cathode
Common Anode
Material
Color
WLD
One Seg
One DP
Min.
Typ.
Min.
Typ.
LD3141AR
LD3141BR
GaAlAs
Super Red
640
8
10
8
10
LD3141AD
LD3141BD
GaAlAs
Hi-Red
640
18
25
18
25
LD3141AO
LD3141BO
GaAsP
Orange
625
7
9
7
9
LD3141AY
LD3141BY
GaAsP
Yellow
588
8
10
8
10
LD3141AG
LD3141BG
GaP
Green
568
7
9
7
9
LD3141AUR
LD3141BUR
AlGaInP
Ultra Red
640
30
45
30
45
LD3141AUO
LD3141BUO
AlGaInP
Ultra Orange
625
45
60
45
60
LD3141AUA
LD3141BUA
AlGaInP
Ultra Amber
605
30
45
30
45
LD3141AUY
LD3141BUY
AlGaInP
Ultra Yellow
595
30
45
30
45
LD3141AUG
LD3141BUG
AlGaInP
Ultra Green
573
30
45
30
45
LD3141APG
LD3141BPG
InGaN
Pure Green
525
120
300
120
300
LD3141AUB
LD3141BUB
InGaN
Ultra Blue
470
30
45
30
45
LD3141AUW
LD3141BUW
InGaN
Ultra White
\
100
120
100
120
Unit:
\
\
\
nm
mcd
mcd
mcd
mcd
