| Prod Model: |
YCL-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
According to Your Requirements |
| IP Rating: |
IP65 |
| Certification: |
RoHS |
| Color Temperature: |
Pure White |
| LED Chips Brand: |
CREE |
| Lamp Body Material: |
Aluminum Alloy |
| Input Voltage: |
220v |
| Power: |
30w |
| Power Supply: |
Solar |
| With Light Source: |
With Light Source |
| Application: |
Highway |
Product Description
We are the manufacturer specializing in the supply of solar LED street light 10W~250W and 5 years warranty
1. The LED street light saves about 50-70% electricity cost comparing with traditional street light
2. Unique Integrated Lens and Lampshade Design
3. Horizontal or vertical installation are available
4. Superior tempered glass diffuser makes a good light transmittance and invariant color
5. Long working lifespan of over 50, 000 hours
6. The LED street light is environment friendly, no UV or IR radiation or mercury
7. No delay start
8. Specification and design of LED street light could be customized according to the client's requirement
Applications:
1. City streets and roads
2. Highways
3. Pavements
4. Squares
5. Schools
6. Parks
7. Yards
8. Inhabitancy area

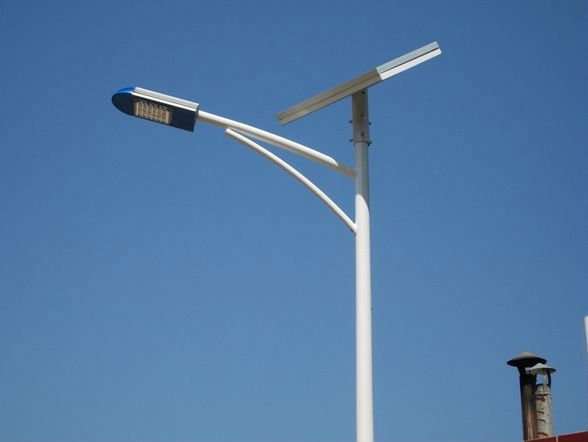

Solar Street Light /solar Led Street light
System includes:
1. Solar module: 50Wp /12VDC *2PCS
2 Solar Module Support Structures: 50Wp /12VDC *2PCS
3. Battery: Free-maintained lead-acid battery 65AH/12V DC *2PCS
4. Battery Box: 65AH/12V DC *2PCS
5. Controller/ Regulater: 10A/24VDC
6. Light Source: High Power Street Light 30W /24VDC
( luminous lumen: 2700-3000LM, the center lux: 22lux )
7. Cable and other install material
8. Metal Pole: 6m-7meter
9. Work Temp: --40º C~55º C. Wind-Stand > 120km/h
10. Operate time: 10 -12 Hours/per day. Keep 3 rain days
Solar Street Light /solar Led Street light
Benefits:
-Easy installation no wiring required.
-Installing and moving is easy no more waiting for the utility company.
-Proven technology. Vandal and theft-resistant components and hardware.
All parts are corrosion resistant.
-Low installation cost.
-Easily and quickly deployed in almost any location.
-NO wiring run from the grid.
-NO cuts through existing roads, sidewalks or landscaping.
-NO Maintenance.
-NO Utility bill.
-Maintenance Free Batteries.
-Big Credits and Savings form State and Federal Taxes.
-Better Color Rendition & Nighttime Visibility.
-No Warm-Up or Cold Start Problems.
-Solar panel Component lifetime of 25 years.
-LED street light life: More than 50, 000.00hours
-Two-year full system warranty.
To size your system properly, please contact us. Our consultant team will assist you in finding the right configuration for your needs.
| Technical Specifications: |
| Model No. | YC-LD-20-220 |
| Input Voltage | AC 85-265V |
| LED Consumption | 56x1W |
| Power Factor | > 0.95 |
| Color Temperature | 2700K-7000K |
| Luminous Flux | 110lm/W |
| Average illumination | Height 6M | > 14Lux |
| Height 8M | > 12Lux |
| Illumination Area | Height 6M | 7x18M 2 |
| Height 8M | 10x25M 2 |
| LED Lifespan | > 50, 000 hrs |
| IP Rating | IP65 |
| Housing Material | High-Purity Aluminum+ HighlyToughened glass cover |
| Dimension | L435× W305x H80mm |
| Working Temperature | -30° C – 50° C |
Yangzhou Youchuang Renewable Energy Co., Limited, Established in 2007, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT and CCC approved manufacturer and trading Group company.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 60 Countries such as the sri landka, USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.
For the Future:
With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.
Main Products:
Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;
Solar Garden Lights & Solar Landscape Lights;
Solar Panel & Solar Modules.
Small Solar Home System,
POLE,
LED light
Attention: We are good at
1: Designing, producing, installing solar 10W-120W Solar LED street lights
2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.
3: Producing solar panel below 315W
4. Solar Battery 7Ah-300Ah/12V
5. solar garden light.
OEM Service for solar lighting and PV panel is available.
. Welcome to contact us for details!
