Prod Model: |
RH3-002-2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Cct: |
Pure White/Warm White/Cool White |
Warranty: |
12 Months |
Weight: |
1.41 Kg/PCS; 19.6 Kg/Carton |
Carton Size: |
47*43*43 (Cm) |
Color Temperature: |
Pure White |
IP Rating: |
IP65 |
Operating Voltage: |
85-265V |
Projection Distance: |
12-18m |
Lamp Body Material: |
Aluminum Alloy |
Certification: |
RoHS |
Application: |
Garden |
Product Description

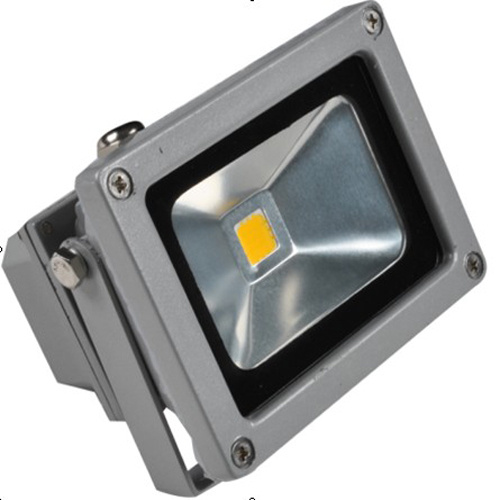

30W LED Flood Light
Die-casting Aluminum with Taiwan Chip
Size:L225*W185mm
Irritation Angle: 120°
Input: AC95-240V DC constant current 900mA/ 17-43V
Lumen≥3500lm (70-80lm/W),Ra≥70
1m vertical illuminance: ≥800lux
Features
1)High power LEDs as light source. High Luminous Efficiency, long life span.
2)Adoption of constant-current to control the circuit. With over-temperature protection, short-circuit protection, high reliability performance, longer life can be achieved.
3)Die-casting aluminum cover. Driver cavity and Light source cavity are parted. The inside of Light source cavity is tightly closed to LED light source. Good cross-ventilation between external heat sink and air, which guarantee the life span of light source and driver.
4)Toughened glass, high temperature resistant silicon rubber sealing belt. Internal silicone potting ensures excellent waterproof properties and good thermal performance, high strength toughened glass inside strengthen the safety of lamps. Inner smooth mirror aluminum reflector enlarges the reflecting area. It is a idea choice for commercial advertising lighting.
5)Environmental friendly: no pollution, cold light source design, no heat radiation, no lead, mercury and other pollution elements.
6)Start without delay, Reach full brightness quickly after power on.
7)The inside and outside of the led flood light is strong shockproof, effectively to resolve the problems such as led falls off, lamp bead shorten life, structure breakdown.
We can provide LED flood light from 10W to 200W.
NO. |
Power |
Input |
IP rating |
Size |
Weight |
1 |
10W |
AC95-240V |
IP65 |
L115*W85mm |
0.416Kg/pcs |
2 |
20W |
AC95-240V |
IP65 |
L180*W140mm |
0.75Kg/pcs |
3 |
30W |
AC95-240V |
IP65 |
L225*W185mm |
1.41Kg/pcs |
4 |
50W |
AC95-240V |
IP65 |
L285*W235mm |
2.1Kg/pcs |
5 |
70W |
AC95-240V |
IP65 |
L365*W285mm |
4.3Kg/pcs |
6 |
80W |
AC95-240V |
IP65 |
L365*W285mm |
3.7Kg/pcs |
7 |
100W |
AC95-240V |
IP65 |
L335*W235mm |
3.4Kg/pcs |
8 |
120W |
AC95-240V |
IP65 |
L425*W325mm |
8.2Kg/pcs |
9 |
150W |
AC95-240V |
IP65 |
L425*W325mm |
8.32Kg/pcs |
10 |
200W |
AC95-240V |
IP65 |
L450*W325mm |
9.3Kg/pcs |
