| Prod Model: |
LED-P012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage Range: |
Stage/ Theatre/KTV |
| Lamp Sourse: |
LED |
| Size: |
200*260*280 |
| Weight: |
6.7kgs |
| Emitting Color: |
RGB |
| Power: |
3W |
| Waterproof: |
Not Waterproof |
| IP Rating: |
IP20 |
| Life: |
50000h |
| Electric Current Type: |
AC |
| Diffuser: |
Tempered Glass |
| Shell Material: |
Aluminium Alloy |
| Certification: |
RoHS |
| Type: |
PAR 30 |
| Input Voltage: |
AC90V-250V |
| LED Chips: |
Tianxin |
Product Description

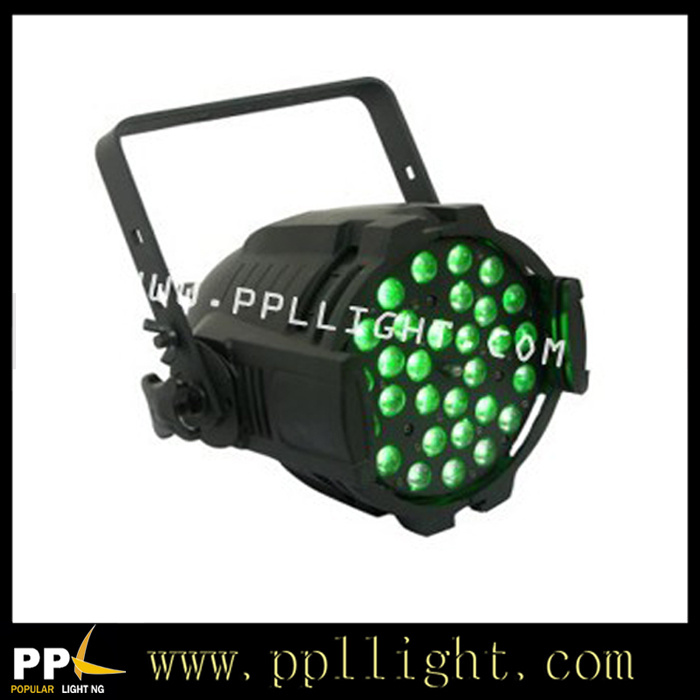

Zoom LED PAR (LED-P012) stage light Fixture
Item No.: LED-P012
Technical parameter:
Voltage: AC90V-245V/50-60Hz
Power: 120W
Lamp: 30*3W Tril -in-1 30 LEDs LED Zooming PAR Light
Beam Angle: 0° -60° Motorized zoom
Ingress protection: IP20
Control: DMX512, Master-slave, stand-alone, music Activate
Channel: 6/9 CH
18 preset colors+3 built in programs
Motorized zooming
Smooth color mixing by tri-color LEDs
Variable strobe 0-25fps
Dimension: 200 x 260 x 280mm
Weight: 6.75KG
| CHANNEL | NUMBER | CONTROL FUNCTION |
| 1 | 0~255 | General dimming |
| 2 | 0~255 | Red(when choose the number in CH8 fromPR01~10, and CH2 controls TIME) |
| 3 | 0~255 | Green(When choose the number in CH8 from PR01~10, and CH3 controls FADE) |
| 4 | 0~255 | Blue |
| 5 | 0~5 | Invalid |
| 6~20 | HIGH POWER(only when in NORMAL POWER model) |
| 21~30 | Invalid |
| 31~255 | Multicolor change(Refer to "color selection chart ") |
| 6 | 0~10 | No strobe |
| 11~255 | Strobe speed(255 the fastest) |
| 7 | 0~20 | Invalid |
| 21~30 | Built-in-Program1 |
| ^^ | ^^(Every 10 numbers represent a program ) |
| 110~120 | Built-in-Program10 |
| 121~130 | Self-written Program1 |
| ^^ | ^^(Every 10 numbers represent a program) |
| 211~220 | Self-written Program 10 |
| 221~255 | Invalid |
| 8 | 0~255 | Speed regulation for built-in-Program(Please adjust CH2\CH3 for self-written Program Speed regulation) |
| 9 | 0~9 | Dimming speed(0~9means using Dimming speed at SET menu) |
| 10~49 | Close |
| 50~99 | Speed1(the fastest) |
| 100~149 | Speed2 |
| 150~199 | Speed3 |
| 200~255 | Speed4(the slowest) |
| 10 | 0~9 | ID address invalid |
| 10~19 | ID1 |
| ^^ | ^^(Every 10 numbers represent an ID) |
| 200~209 | ID20 |
| 210 | ID21 |
| ^^ | ^^(Each number represents an ID) |
| 254 | ID65 |
| 255 | ID66 |
| 11 | 0~255 | Zoom |
| 12 | 0~255 | Zoom speed(0 the slowest,255 the fastest) |
