Prod Model: |
H-S300BP36B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dimension: |
300x300x11.8mm |
Power Consumption: |
36W |
Color Temperature: |
Warm White/Pure White/Cold White |
Lumen: |
2340lm |
Dimmable Way: |
IR/RF Remote Controller or Dali System |
Emitting Way: |
Edges |
Frame Color: |
Silver/White/Black |
Shape: |
Square |
Install Way: |
Embededsuspended/Surface Mounted |
Extra Function: |
Emergency/Cct and Brightness Adjustable |
Light Source: |
LED |
Appearance: |
Square |
Type: |
Flat-Type |
Housing Material: |
Acrylic |
Emitting Color: |
Warm White/Pure White/Coll White/RGB |
Certification: |
CE&RoHS/ISO9001 |
Base Material: |
Aluminium Alloy |
Voltage: |
AC100-240V |
Beam Angle: |
120 |
Product Description

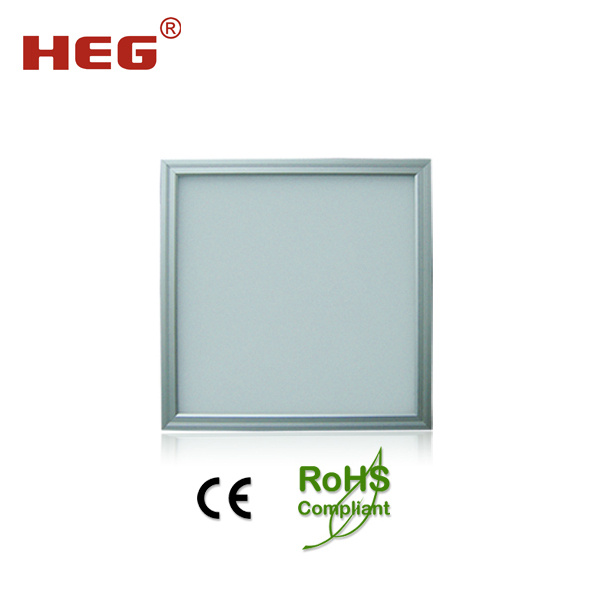

300x300 led panel light
Dimmable way: IR&RF Remote control/Dali System/0-10V/DMX
Optional Power: 36W/18W/9W
Optional size: 300X300/295X295
1. Advantages of LED Panel
A. Ultra-thin, modern, simple and elegent
B. Energy-saving, no harmful hazardous ingredients, environmental-friendly
C. Various Installation ways: Recessed /Suspended/Surface Mounted
D. A good replacement for traditional grille lamp.
2. Installation Way
* Recessed
* Surface Mounted
* Suspended
3. Delivery Time
5-7 working days for sample order, 10-15 working days for 1000PCS after payment confirmed
4. Warranty Time
3 years since the date of purchase.
Other Sizes Available as belowing:
Model |
Dimension |
Power |
LED Type |
LED QTY |
Lumen |
Material |
HS200BP10B |
200x200x11.8mm |
10W |
SMD3528 |
96 |
650±10% |
PMMA+Aluminum |
H-S300BP18B |
300*300*11.8mm |
18W |
SMD3528 |
180 |
1170±10% |
PMMA+Aluminum |
H-S300BP36B |
300*300*11.8mm |
36W |
SMD3528 |
372 |
2340±10% |
PMMA+Aluminum |
H-1506AP18A |
150*600*8.5mm |
18W |
SMD3020 |
216 |
1170±10% |
PMMA+Aluminum |
H-0306BP18B |
300*600*11.8mm |
24W |
SMD3528 |
252 |
1560±10% |
PMMA+Aluminum |
H-0306BP36B |
300*600*11.8mm |
36W |
SMD3528 |
372 |
2340±10% |
PMMA+Aluminum |
H-S600BP36B |
600*600*11.8mm |
36W |
SMD3528 |
372 |
2340±10% |
PMMA+Aluminum |
H-S595BP36B |
595*595*11.8mm |
36W |
SMD3528 |
372 |
2340±10% |
PMMA+Aluminum |
H-S595BP72B |
595*595*11.8mm |
72W |
SMD3528 |
744 |
4680±10% |
PMMA+Aluminum |
H-S600BP72B |
600*600*11.8mm |
72W |
SMD3528 |
744 |
4680±10% |
PMMA+Aluminum |
H-S620BP36B |
620*620*11.8mm |
36W |
SMD3528 |
372 |
2340±10% |
PMMA+Aluminum |
H-S620BP72B |
620*620*11.8mm |
72W |
SMD3528 |
744 |
4680±10% |
PMMA+Aluminum |
H-S625BP36B |
625*625*11.8mm |
36W |
SMD3528 |
372 |
2340±10% |
PMMA+Aluminum |
H-S625BP72B |
625*625*11.8mm |
72W |
SMD3528 |
744 |
4680±10% |
PMMA+Aluminum |
H01512BP36B |
150*1200*11.8mm |
36W |
SMD3528 |
372 |
2340±10% |
PMMA+Aluminum |
H-0312BP36B |
300*1200*11.8mm |
36W |
SMD3528 |
372 |
2340±10% |
PMMA+Aluminum |
H-0312BP72B |
300*1200*11.8mm |
72W |
SMD3528 |
768 |
4680±10% |
PMMA+Aluminum |
H-0611BP68B |
600*1100*12.5mm |
68W |
SMD3528 |
732 |
4080±10% |
PMMA+Aluminum |
H-0612BP72B |
600*1200*12.5mm |
72W |
SMD3528 |
768 |
4320±10% |
PMMA+Aluminum |
