Outline Dimensions:
73.00X110.0X10.0mm
Digit Height:
3 Inch(78mm)
Emitting Color:
Single Color
Dp Number:
1PC
Digit Number:
1 Digit
Chip Matrial:
4-Element
Tube Chip Color:
Single Color
Scanning Mode:
Static Scan
Display Type:
Segment LED Display
Application:
Meters and Instruments
Certification:
Reach
Display Function:
Numbers and Some Alphabets
Product Description
Features Ø 78mm (3 inch) digit high Ø Excellent digit appearance Ø Wide viewing angle Ø Range of emitted colors Ø I.C. compatible Ø Low power consumption Ø White segment Ø RoHS compliant
Available options
Ø Alternative emitting luminosity: Standard or high brightness version Ø Alternative emitted color Ø Alternative segment color Ø Alternative font Ø Common Cathode is available Ø Cropped terminal pins Selection Guide

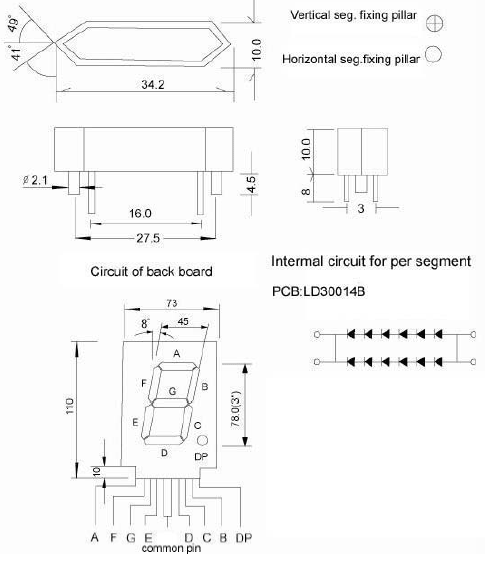

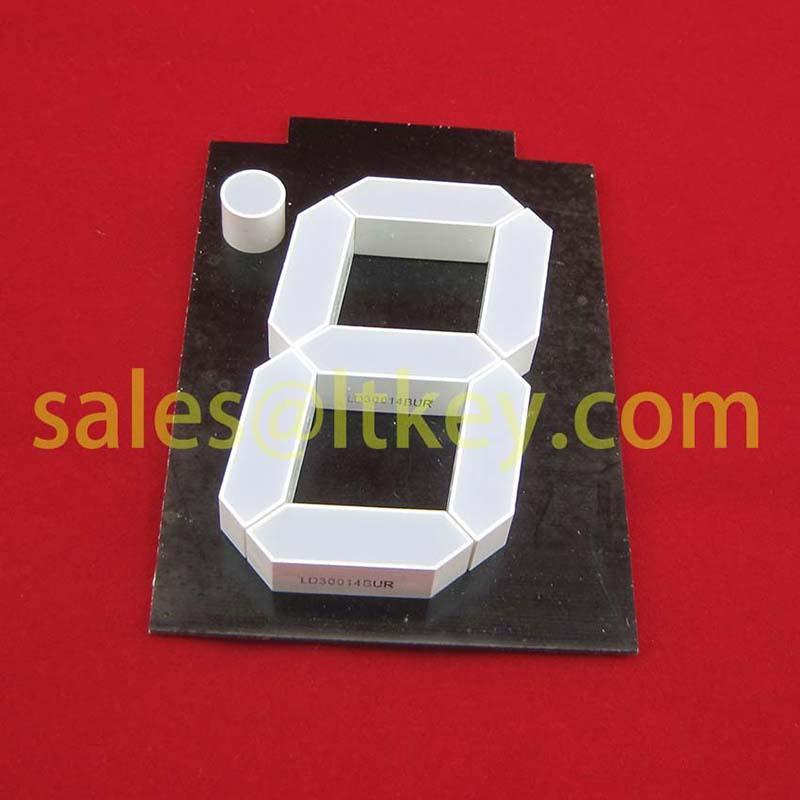

Single Digit 7 Segment LED Display, Digit Height: 76mm(3inch), External Dimensions: 73.00x110.0x10.0mm (LxWxHmm)
Part No.
Chip
Iv@IF=20mA
Common Cathode
Common Anode
Material
Color
WLD
One Seg
Min.
Typ.
LD30014AR
LD30014BR
GaAlAs
Super Red
640
72
90
LD30014AD
LD30014BD
GaAlAs
Hi-Red
640
162
225
LD30014AO
LD30014BO
GaAsP
Orange
625
63
81
LD30014AY
LD30014BY
GaAsP
Yellow
588
72
90
LD30014AG
LD30014BG
GaP
Green
568
63
81
LD30014AUR
LD30014BUR
AlGaInP
Ultra Red
640
270
405
LD30014AUO
LD30014BUO
AlGaInP
Ultra Orange
625
405
540
LD30014AUA
LD30014BUA
AlGaInP
Ultra Amber
605
270
405
LD30014AUY
LD30014BUY
AlGaInP
Ultra Yellow
595
270
405
LD30014AUG
LD30014BUG
AlGaInP
Ultra Green
573
270
405
LD30014APG
LD30014BPG
InGaN
Pure Green
525
1080
2700
LD30014AUB
LD30014BUB
InGaN
Ultra Blue
470
270
405
LD30014AUW
LD30014BUW
SMD
Ultra White
\
900
1080
Unit:
\
\
\
nm
mcd
mcd
