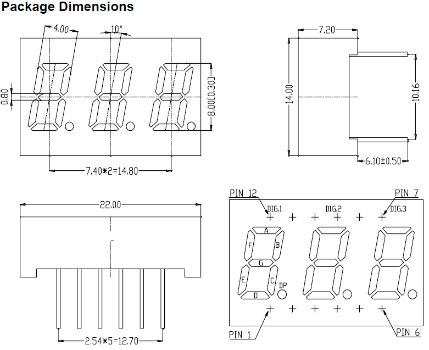

Outline Dimensions:
22.00X14.00X7.20mm
Digit Height:
8.00 mm (0.30 Inch)
Emitting Color:
Single Color
Dp Number:
3PCS
Digit Number:
3 Digit
Chip Matrial:
4-Element
Tube Chip Color:
Single Color
Scanning Mode:
Static Scan
Display Type:
Segment LED Display
Application:
Meters and Instruments
Certification:
Reach
Display Function:
Numbers and Some Alphabets
Product Description
Features Ø 8.00 mm (0.30 inch) digit high Ø Excellent digit appearance Ø Wide viewing angle Ø Range of emitted colors Ø I.C. compatible Ø Low power consumption Ø White segment Ø RoHS compliant
Available options
Ø Alternative emitting luminosity: Standard or high brightness version Ø Alternative emitted color Ø Alternative segment color Ø Alternative font Ø Common Cathode is available Ø Cropped terminal pins
Selection Guide

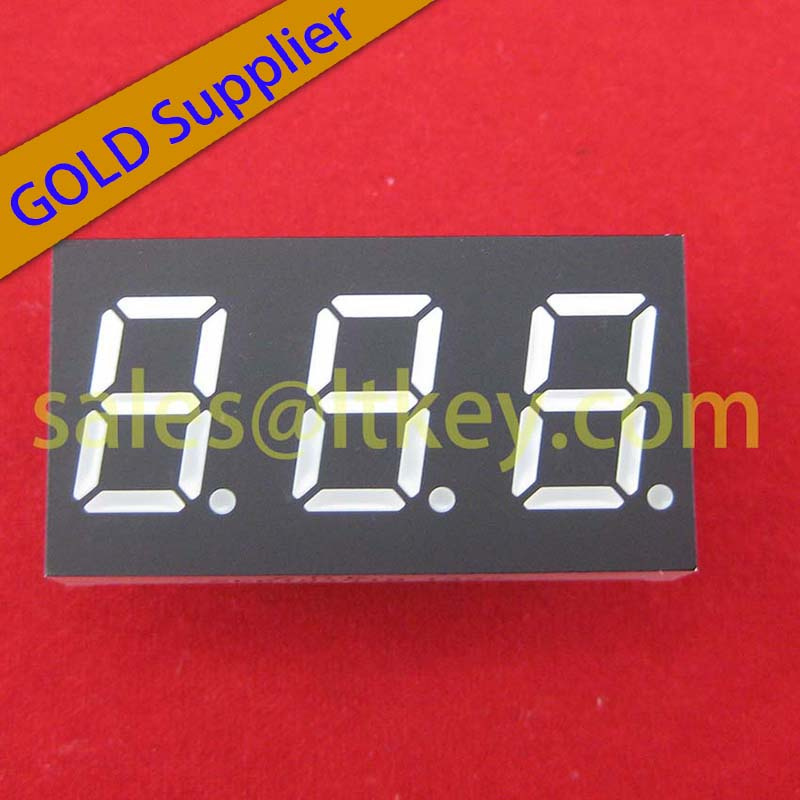

Three Digit 7 Segment LED Display, Digit Height: 8.00mm(0.30 inch), External Dimensions: 22.00x14.00x7.20mm (L x W x H)
Part No.
Chip
IV@IF=20mA
Iv@IF=20mA

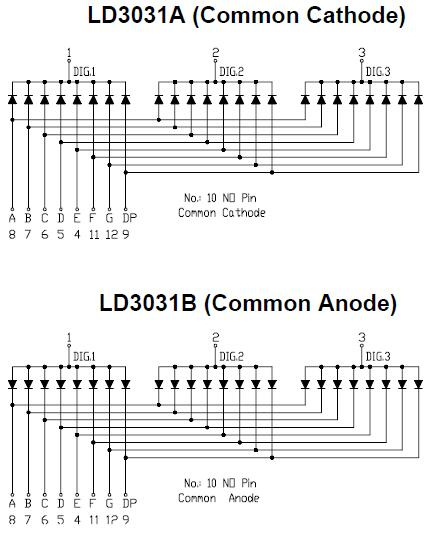

Common Cathode
Common Anode
Material
Color
WLD
One Seg
One DP
Min.
Typ.
Min.
Typ.
LD3031AR
LD3031BR
GaAlAs
Super Red
640
8
10
8
10
LD3031AD
LD3031BD
GaAlAs
Hi-Red
640
18
25
18
25
LD3031AO
LD3031BO
GaAsP
Orange
625
7
9
7
9
LD3031AY
LD3031BY
GaAsP
Yellow
588
8
10
8
10
LD3031AG
LD3031BG
GaP
Green
568
7
9
7
9
LD3031AUR
LD3031BUR
AlGaInP
Ultra Red
640
30
45
30
45
LD3031AUO
LD3031BUO
AlGaInP
Ultra Orange
625
45
60
45
60
LD3031AUA
LD3031BUA
AlGaInP
Ultra Amber
605
30
45
30
45
LD3031AUY
LD3031BUY
AlGaInP
Ultra Yellow
595
30
45
30
45
LD3031AUG
LD3031BUG
AlGaInP
Ultra Green
573
30
45
30
45
LD3031APG
LD3031BPG
InGaN
Pure Green
525
120
300
120
300
LD3031AUB
LD3031BUB
InGaN
Ultra Blue
470
30
45
30
45
LD3031AUW
LD3031BUW
InGaN
Ultra White
\
100
120
100
120
Unit:
\
\
\
nm
mcd
mcd
mcd
mcd
How to produce these item? Factory viewing:
LightKey Optoelectronics Ltd. Is a big LED manufacturer, which covers an area of 40, 000 square meters, with approximately 390 production workers, and more than 50 R&D people. It has more than 10 advanced automatic production lines including die attaching, wire bonding, taping and casting. LightKey is also equipped with advanced sorting, testing, and analyzing instruments as well as other technical R&D equipments. We focus on the quality since our estabilishment. Is a manufacturer specialized in LED products especially LED components. Our main products are LED displays: 7 segment LED display, 14 and 16 segment LED display, LED DOT matrix, LED bargraph, &LED lightbar and so on: Lamp type LEDs: White LED, signboard oval LED, standard LED, high-brightness LED, traffic LED, IR LED, photodiode silicon, high power LED, super flux LED, & SMD LED and LED applications. Our company is managed according to ISO9001: 2008. Our LED products have RoHS and REACH compliance.
