LED Brand:
CREE
Hs-Code:
95054090
Extremely Long Life:
50,000 Hr
Dimming:
0 - 100% Electronic Dimming
Pan:
0 - 360 Degree
Tilt:
0 - 185 Degree From Smooth Stepper
Beam Angle:
5 Degrees
Display:
4-Button DMX LED Display
Dimensions (Lxwxh):
458 X 429 X 208mm
Weight:
10.6 Kg
Light Source:
LED
Material:
Aluminum
Strobe:
Electronic Strobe
IP Rating:
IP20
Certification:
RoHS
Emitting Color:
RGBW
Control Channel:
12/43 DMX Channels
Control Mode:
DMX512, Mater-Slave, Auto, Sound Active
Voltage:
AC90-240V 50-60Hz
Product Description

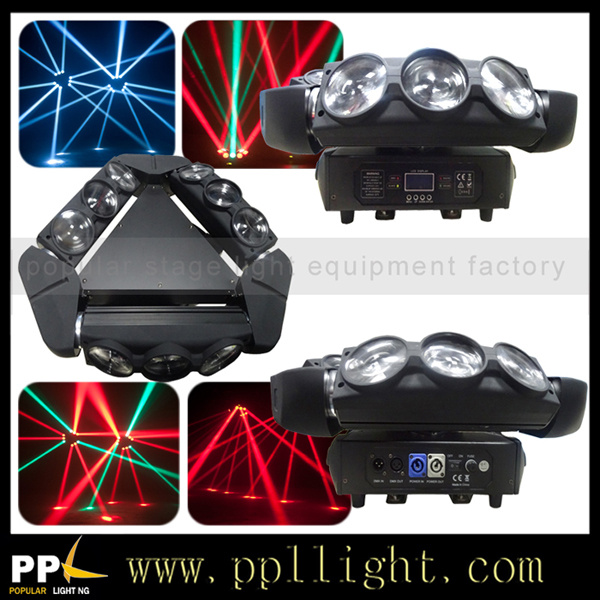

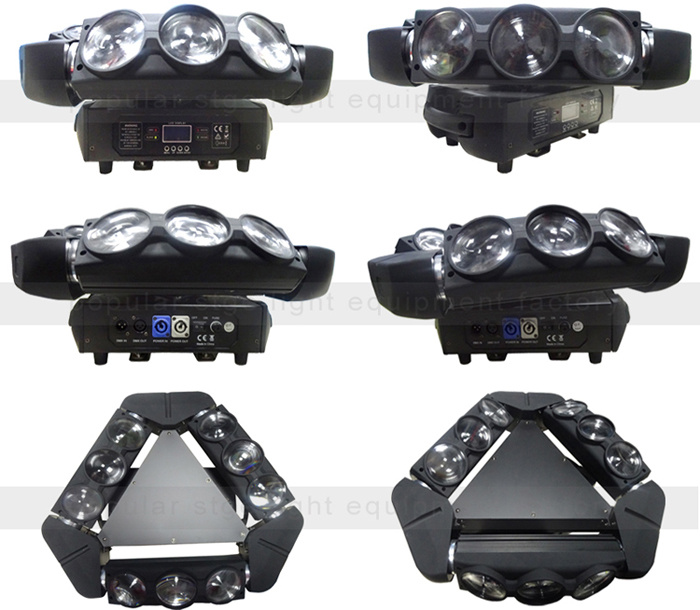

Feature: 1.RGBW 4IN1 CREE LED 2.Unique lighting fixture with quick sweeping narrow beams 3.combined with an 3 x 3-Zone LED chase 4.smooth moving head ,X asix endless rotate.
Technical Parameter: Power Consumption: 140W maximum Voltage: AC 100-240V 50/60Hz- IEC socket light source:9 x 10-Watt RGBW Cree LEDs Extremely Long Life:50,000 hr 3 Operational modes: Sound Active, Show Mode, DMX Controlled Master/Slave Set Up or Stand Alone 2 DMX Channel Modes: 12/43 DMX Channels DMX-512 Protocol Dimming: 0 - 100% electronic dimming Includes exciting sound active built-in programs LED pulse & strobe effect Tilt:0 - 185 degree from smooth Stepper Motors Pan:0 - 360 degree Beam angle: 5 Degrees Includes Omega quick lock brackets Mount on a wall, trussing, or set on the ground PowerCon AC IN/OUT on rear to daisy chain power (up to 5 @ 120V and 9 @ 230V ) Display :4-Button DMX LED Display Dimensions (LxWxH): 458 x 429 x 208mm Weight: 10.6 kg
Channel Chart:
12CH
1
2
3
4
5
6
7
8
9
10
11
12
Function
X motor
Y1 motor
Y2 motor
Y3 motor
Dimmer
Strobe
Red Dimmer
Green Dimmer
Bulb Dimmer
White Dimmer
Effect
Effect Speed
43CH
1
2
3
4
5
6
7
8
9
10
11
12
Function
X motor
X motor rotate
Y1 motor
Y2 motor
Y3 motor
Dimmer
Strobe
LED1 Red Dimmer
LED1 Green Dimmer
LED1 Blue Dimmer
LED1 White Dimmer
LED2 Red Dimmer
13
14
15
16
17
18-39
40
41
42
43
LED2 Green Dimmer
LED2 Blue Dimmer
LED2 White Dimmer
LED3 Red Dimmer
LED3 Green Dimmer
LED3 Blue Dimmer
LED8 White Dimmer
LED9 Red Dimmer
LED9 Green Dimmer
LED9 Blue Dimmer
LED9 White Dimmer
Trade terms:
Price Term
exw price
Payment terms
T/T,Paypal,Western union
Shipping Way
1.By express(DHL,Fedex,Ups,EMS)
2.By air
3.By sea
Sample time
1-3 workdays
Production time
general 5-10 days,depend on your order quantity
Packing
1.Standard Carton
2.Flightcase
Warranty
1 years
After-Sell server
1.If there is some problems with the product,please describe it and sent thenecessary picture or video to us for analyzing.
2.Then we will guide you how to fix it and provide free accessories if needed.
3.1year quality guarantee at least, and we will provide free parts for replacement if any problem belong to us during the period(Delivery cost paid by customer);1 year later, we can provide spare parts for replacement based on certain charge.
